Force Multiplication: Offers 4:1 or 5:1 mechanical advantage (depending on rigging setup), enabling much greater pulling power from smaller vehicles or standard winches.
-
Versatile Use: Can be rigged as a traditional 2:1 snatch or pulley block, making it suitable for various recovery scenarios.
-
Field-Proven Design: Extensively tested by RED Winches and independently LOLER destruction tested for certified strength and reliability.
- Lightweight and Durable. The total weight is just 8kg, made from corrosion-resistant zinc-plated steel parts.
FM24, including travel plate.
-
Minimum Breaking Strength (MBS): 240kN (24 tonnes / 53,954 lbs)
-
Rope Running Diameter: 10 – 14mm
-
Soft Shackle Rope Diameter (Top Pulley): 10 – 14mm
-
Soft Shackle Rope Diameter (Bottom Pulley): 9 – 10mm
-
Storage: Supplied with CNC-machined storage/carry plate
⚠️ Warning: Only to be used with synthetic soft shackles. Do not use with steel D-shackles or bow shackles.
Weight and dimensions, including storage plate.
- Weight: 8kg
-
Height: 380mm
-
Width: 200mm
-
Depth: 100mm

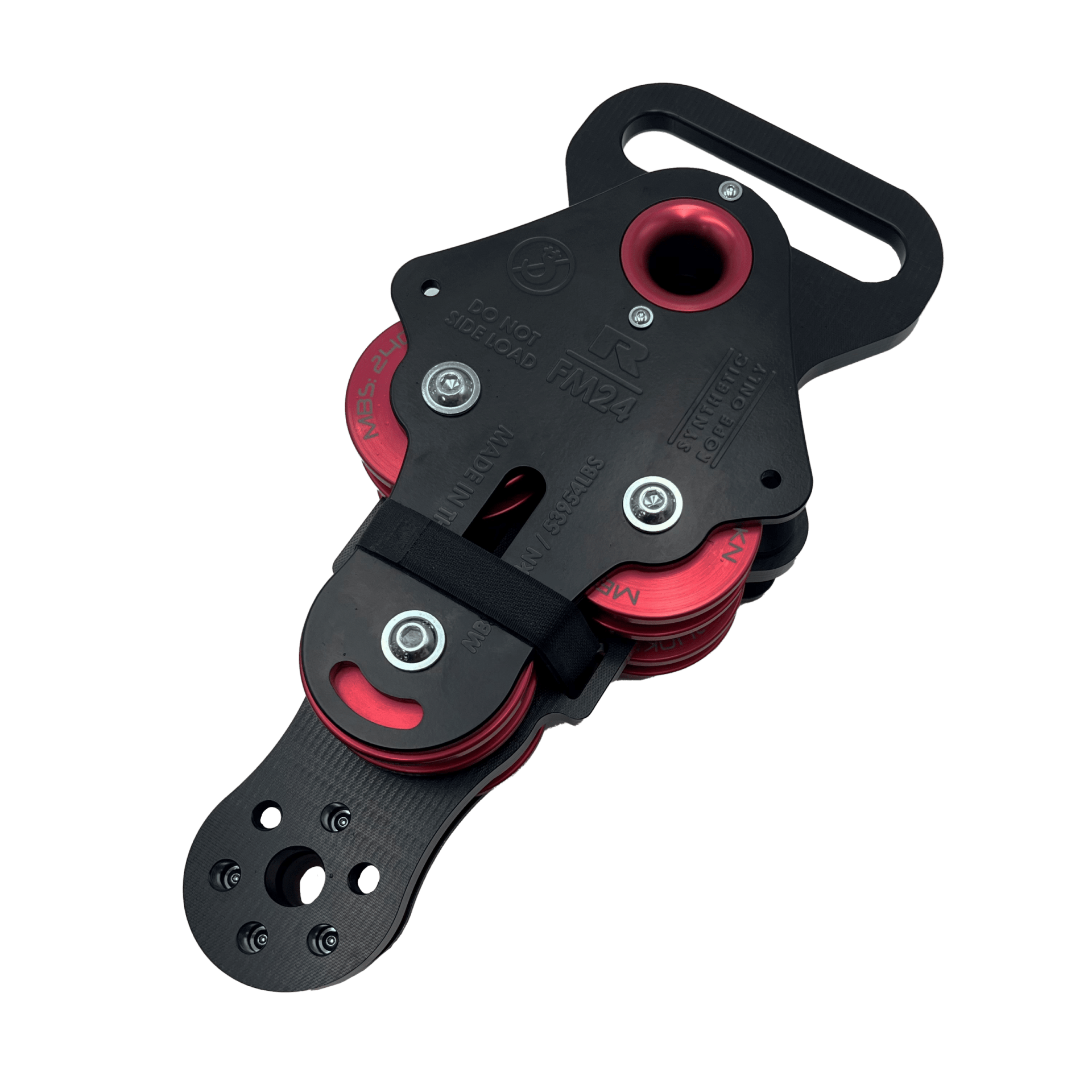

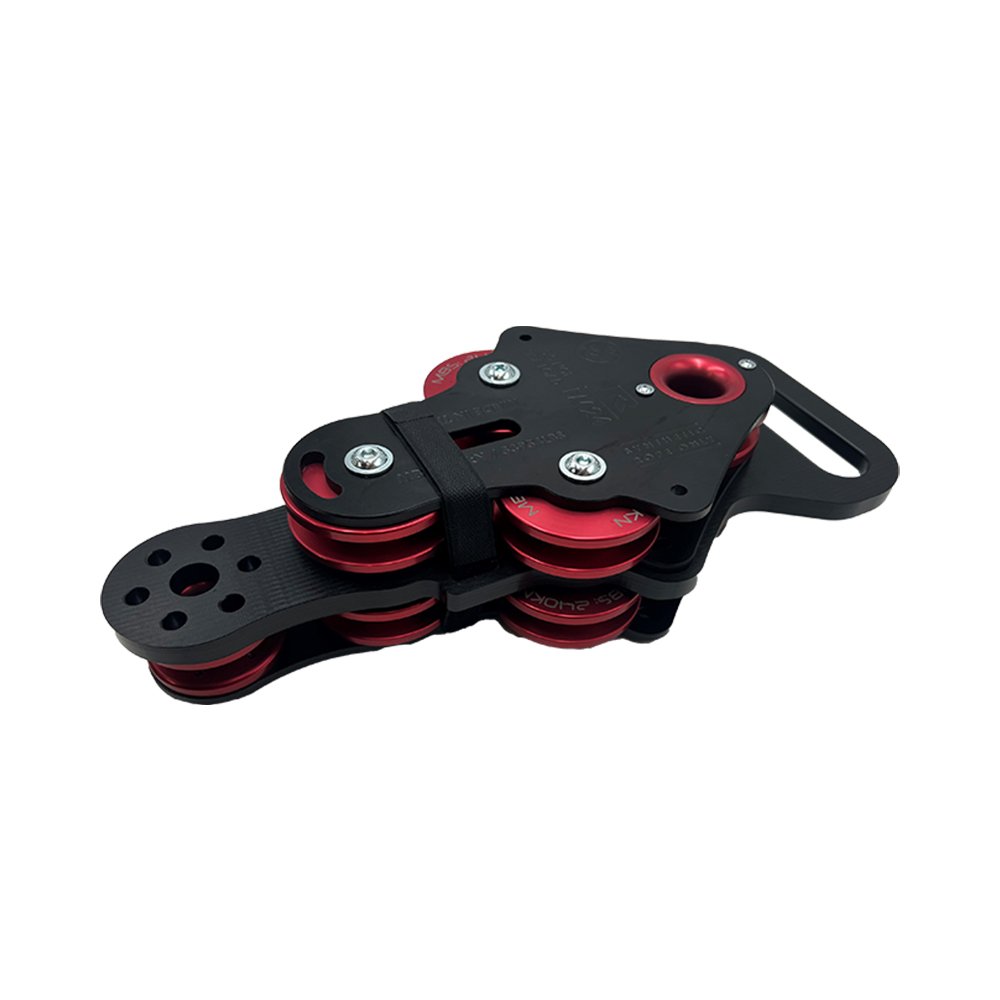

FM24 Force Multiplier
High-Strength Recovery Solution for Larger Vehicles
The FM24 is a compact, high-capacity pulley system specifically engineered for overland and commercial vehicles that are too large to self-recover with a standard winch. Whether you’re in the wild or stuck on a job site, the FM24 enables smaller support vehicles, from pickups to SUVs and even road cars, to assist in vehicle recovery with ease and safety.
Why Choose the FM24
-
Lightweight & Compact: At just 8kg, it’s easy to store and transport.
-
High Efficiency: Self-lubricating bearings and zinc-plated steel parts ensure durability and low maintenance.
-
Safe & Reliable: Smooth operation even in mud, water or rugged terrain.
£625.00 ex. VAT
FM24 RED Winches Force Multiplier
The FM24 is a compact, high-strength recovery solution designed for larger overland and commercial vehicles that struggle with self-recovery. Using mechanical advantage, it enables smaller vehicles, or even regular road cars, to assist in recovery with ease. Capable of 4:1 or 5:1 force multiplication depending on the rigging setup, and also usable as a traditional 2:1 snatch or pulley block, the FM-24 offers unmatched flexibility in the field.
Tested to 240kN (24 tonnes), this lightweight system weighs just 8kg and is fully field-serviceable with only two hex tools. All steel components are zinc-plated for corrosion resistance, and the pulleys run on self-lubricating bearings. Supplied in a compact ABS carry case with foam inserts, the FM24 is easy to store and quickly deployable.
Ideal for overlanding, expedition support, and commercial use, the FM24 allows recovery from a wide range of vehicles, not just heavy 4x4s: a true force multiplier and a must-have in any professional or enthusiast recovery kit.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
