Massive Capacity:
Minimum Breaking Strength (MBS): 50kN (50,985kg / 112,402 lbs)
Designed for use with 20mm soft shackles rated to 500kN (50t) -
Mechanical Advantage:
Achieve 4:1 or 5:1 force multiplication for heavy recoveries
Functions as a 2:1 snatch or pulley block -
Field-Tested:
Destruction tested by an independent LOLER facility
Real-world tested by RED Winches -
Built to Last:
Fully field-serviceable with just 2 hex tools
Self-lubricating pulley bearings
Zinc-plated steel components for corrosion resistance -
Compact & Convenient:
Supplied in a durable ABS plastic storage case with foam inserts
Easy to stow in trucks, overlanders, or expedition rigs
-

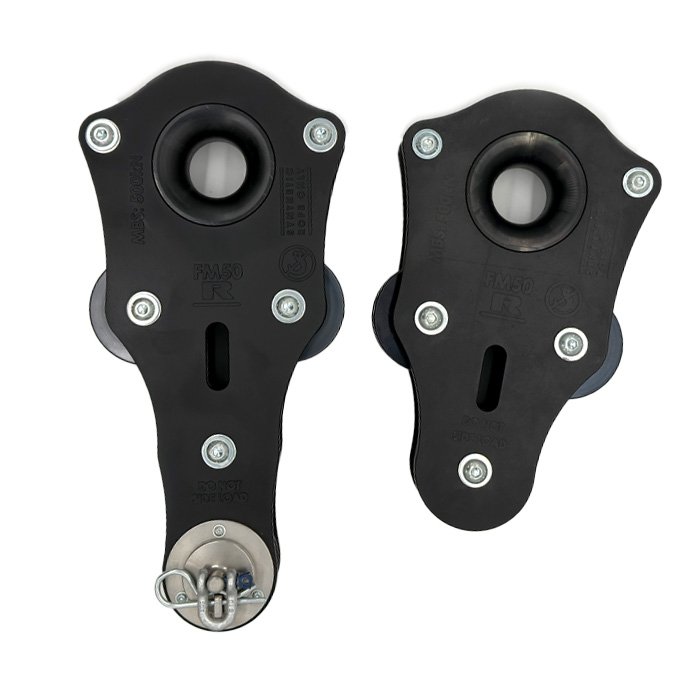

1 x Pair of FM50 Fiddle Blocks
-
1 x CNC-machined storage/carry plate
The RED Winches FM50 Force Multiplier – High-Capacity Recovery System for Overland & Commercial Vehicles
The FM50 is a compact, high-capacity recovery solution built for vehicles that are too large to self-recover using standard winches alone. Whether you drive an overland truck, expedition camper, or heavy-duty commercial vehicle, this force multiplier gives you the ability to recover with help from a much smaller vehicle.
By using a mechanical advantage of 4:1 or 5:1 (depending on rigging), even road cars like a Ranger, Q7, or Amarok can assist in pulling large vehicles free. It also doubles as a 2:1 snatch or pulley block, adding versatility to your recovery kit.
Applications:
-
Recover large overland and expedition vehicles
-
Use with smaller vehicles to assist in recovery
-
Ideal for use with synthetic rope extensions and soft shackles
Important Notes:
⚠️ Do not use steel D-shackles or bow shackles with this product.
This recovery system is designed exclusively for soft shackles.
15kg
L – 46.5cm
W – 32cm
H – 18cm

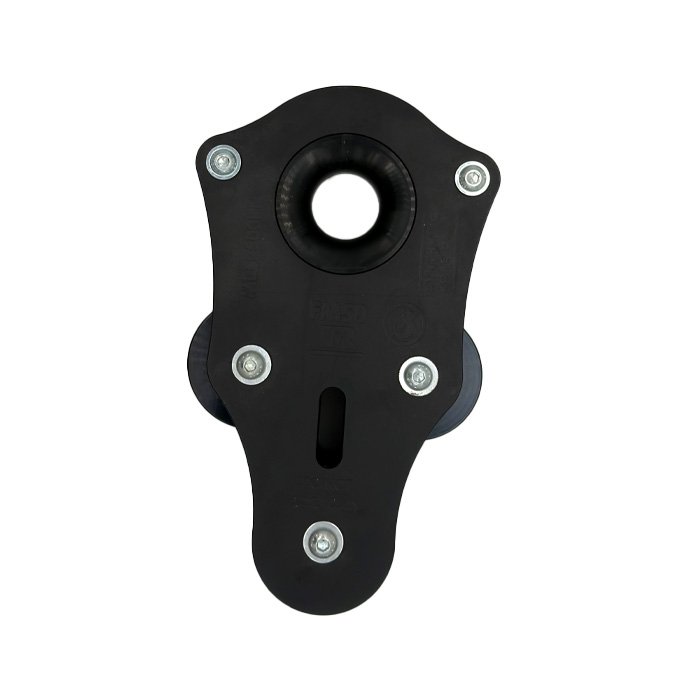

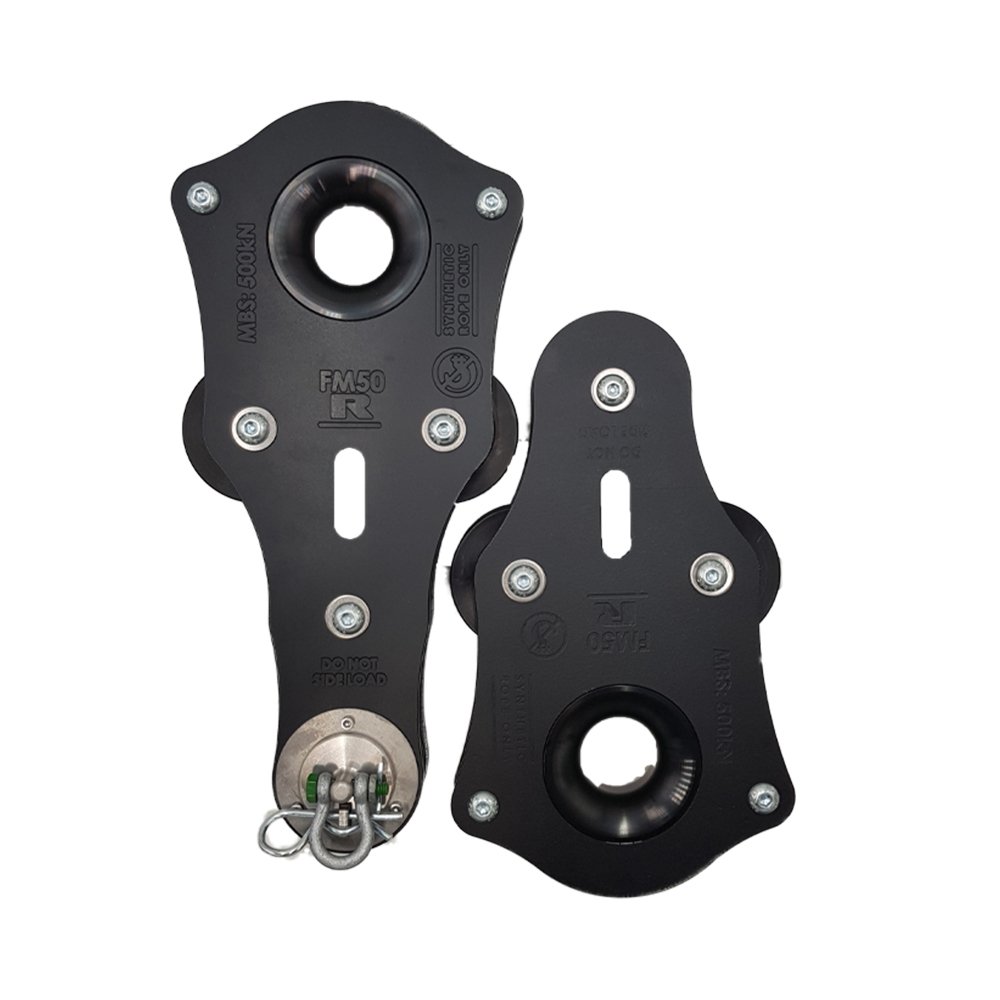

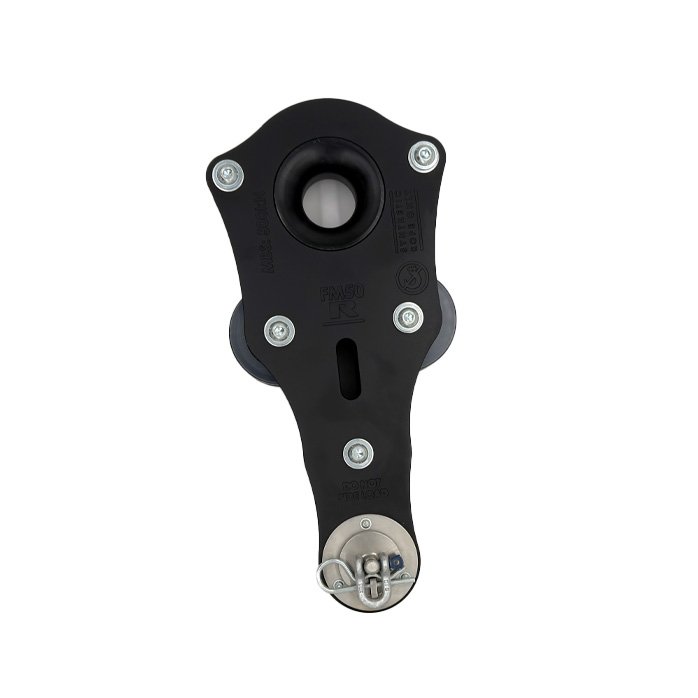

FM50 Force Multiplier
Compact and powerful, the FM50 Force Multiplier from RED Winches provides up to 5:1 mechanical advantage for recovering large vehicles. Includes CNC machined delrin storage/carry plate.
For use with synthetic rope and soft shackles only.
£975.00 ex. VAT
