The Advantages
- Lightweight – 4KG
- Soft shackle isolated from moving parts.
- All rigging is now in the closed loop format.
- Large MBS (Minimum Breaking Strain) for the unit size – 50T – 112,400lbs
- Solid bearings for durability
- Lighter and smaller than traditional snatch blocks with equivalent rating.
- The Recovery Ring design means that all force loading on the material is in the compression plane as opposed to the sheer plane of the traditional snatch block.
- Traditional snatch blocks with equivalent rating have a rope sheave suited to much larger wire rope diameters making them unsuitable for recovery work with synthetic winch line.

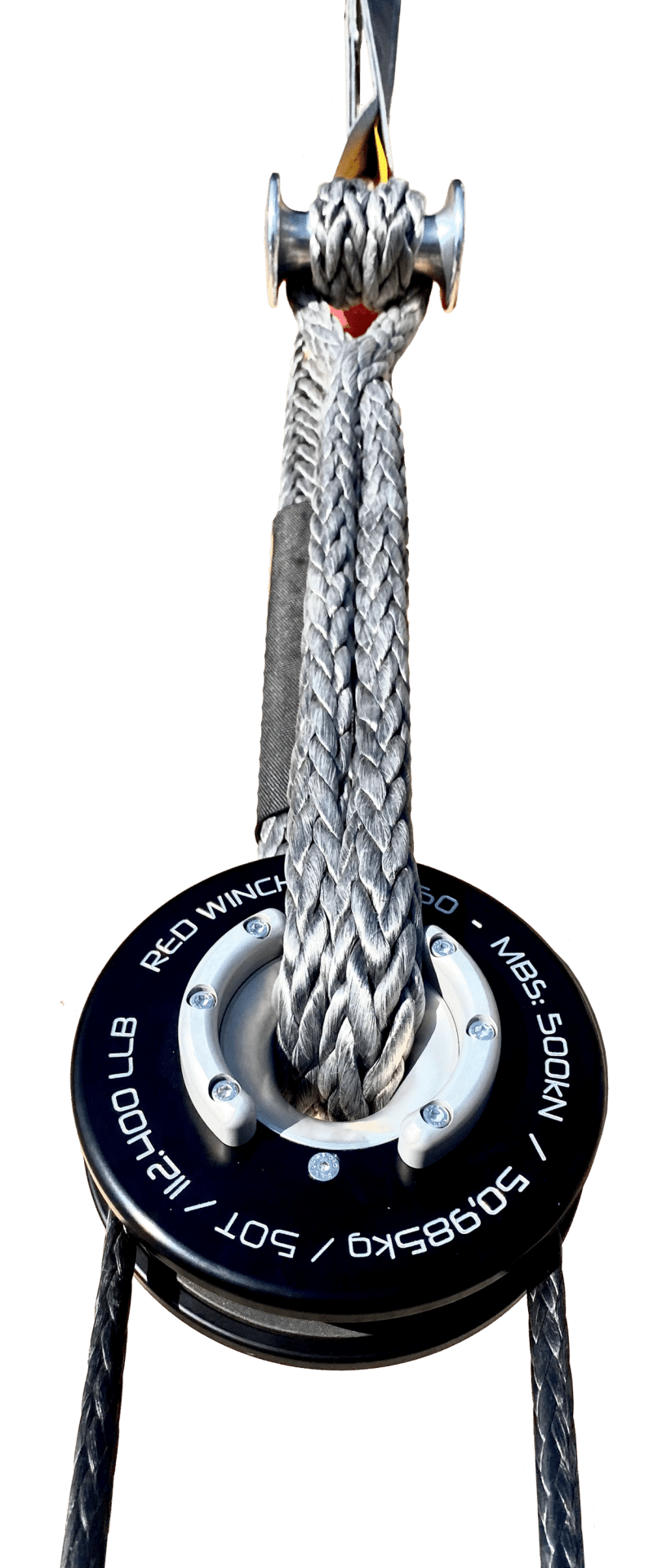

Recovery Ring (RR-50)
The RR-50 is the next generation of our popular Snatch Ring and is ideal when heavier loads are in play. Independently tested, the “Recovery Ring” boasts an impressive 50T Minimum breaking Strain with the rope running in a sheave that is set in bearings. The new “Recovery Ring” design isolates the soft shackle from any moving parts, and the stop blocks prevent rotation of the main housing. With the soft shackle now isolated from any moving parts, heat build-up is prevented in the soft shackle, and frictional losses are no more than a traditional design snatch block with the added safety advantage that closed-loop rigging provides.
The RR-50 was designed for users who require a cost-effective high MBS snatch block suitable for use with synthetic winch line. During our research, it was found that the snatch blocks on the market with equivalent MBS figures had a rope sheave designed for much larger diameter rope, making them unsuitable for recovery work with a synthetic winch line. The RR-50 is the answer to this problem and has since been adopted for use by the UK military and is now in service.
The RR-50 features a deep rope channel to keep the line securely in place when slack, along with optimised bend radii to suit both static and dynamic ropes for maximum performance and rope protection.
4.3kg
L – 26.5cm
W – 27cm
H – 10.5

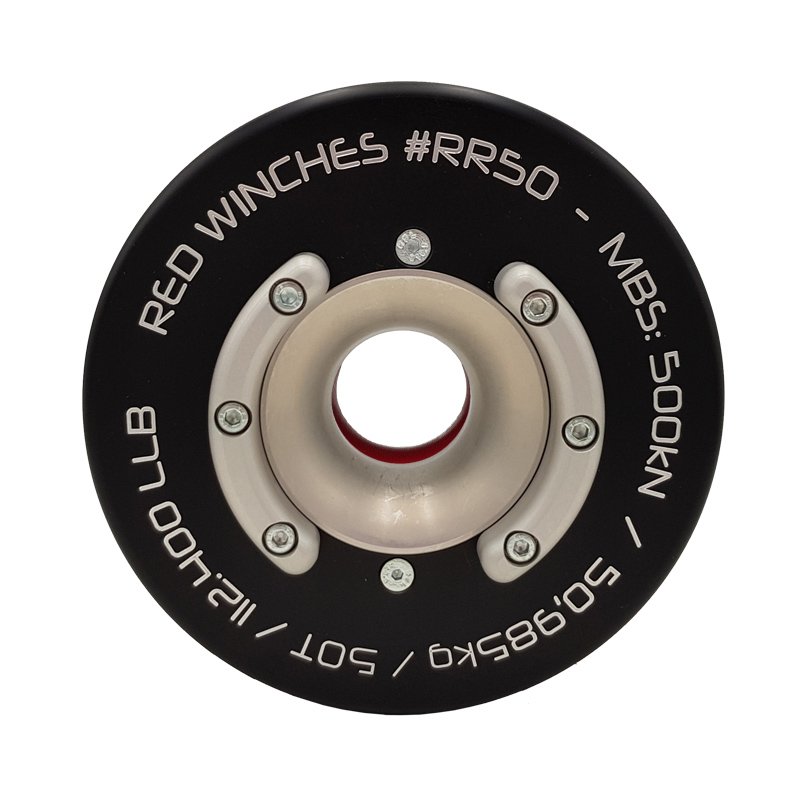

Recovery Ring – RR50
The Recovery Ring – (NSN# 99-65-5175)
Our RED Winch “Recovery Rings” offer a strong, lightweight and safe alternative to the traditional snatch block.
£499.00 ex. VAT
The Advantages
- Lightweight – 4KG
- Soft shackle isolated from moving parts.
- All rigging is now in the closed loop format.
- Large MBS (Minimum Breaking Strain) for the unit size – 50T – 112,400lbs
- Solid bearings for durability
- Lighter and smaller than traditional snatch blocks with equivalent rating.
- The Recovery Ring design means that all force loading on the material is in the compression plane as opposed to the sheer plane of the traditional snatch block.
- Traditional snatch blocks with equivalent rating have a rope sheave suited to much larger wire rope diameters making them unsuitable for recovery work with a synthetic winch line.
