What size soft shackle do I need for my vehicle?

As a standard engineering guideline for 4x4 recovery, your soft shackle’s Minimum Breaking Strain (MBS) should be at least 2 to 3 times your vehicle’s Gross Vehicle Weight (GVW), taking into account stuck forces (such as mud suction, steep inclines, or loaded gear). Light to Medium 4x4s (e.g., Suzuki Jimny, standard Defender 90): Recommended: 9mm–11mm (12,000kg to 15,500kg MBS) Heavy 4x4s & Overland Rigs (e.g., Defender 110/130, Toyota Land Cruiser, Commercial Utility): Recommended: 12mm–14mm (18,900kg to 26,000kg MBS) Heavy Commercial & Military Vehicles (e.g., Unimog, 6x6, Heavy Plant): Recommended: 16mm–20mm+ (30,000kg to 50,000kg MBS) Pro Tip: Always match the rating of your soft shackle to the rest of your recovery system (winch line, snatch rings, and vehicle recovery points).

Are soft shackles safer than steel bow shackles?

Yes, significantly safer. While traditional steel bow shackles are strong, soft shackles offer major safety and practical advantages during heavy recoveries: No Kinetic Projectile Hazard: If a recovery component snaps under tension, a steel shackle becomes a dangerous high-velocity projectile. Synthetic soft shackles weigh a fraction of steel and store almost zero kinetic energy, dropping safely to the ground if a line fails. No Damage to Vehicle Bodywork: Being flexible and soft, they won't scratch paintwork, dent bumpers, or clatter against recovery points during setup. Buoyant: Unlike steel shackles, synthetic soft shackles float in mud and water, making them far easier to retrieve in extreme off-road conditions. Tool-Free Operation: They require no threaded pins that can bind, bend, or rust shut under load.

What is the Minimum Breaking Strain (MBS) of UHMWPE soft shackles?

The Minimum Breaking Strain (MBS) depends on the diameter of the Ultra-High-Molecular-Weight Polyethylene (UHMWPE) synthetic rope used to form the shackle.Because UHMWPE has an exceptionally high strength-to-weight ratio (up to 15x stronger than steel by weight), even compact diameters deliver massive load capabilities:Rope DiameterMinimum Breaking Strain (MBS)Typical Application9mm117 kN (~12,000 kg / 26,400 lbs)Lightweight 4x4s & ATV/UTV recovery11mm152 kN (~15,500 kg / 34,100 lbs)Standard 4x4 off-road recovery12mm185 kN (~18,900 kg / 41,600 lbs)Heavy-duty 4x4, winching, & towing14mm254 kN (~26,000 kg / 57,300 lbs)Fully laden expedition & commercial rigs16mm294 kN (~30,000 kg / 66,100 lbs)Heavy commercial & vehicle recovery20mm (Dog Bone)500 kN (~50,000 kg / 112,400 lbs)Extreme industrial, defense, & commercial use(Note: Always check for a certified rating label on the shackle to confirm its tested MBS before staging a live recovery.)

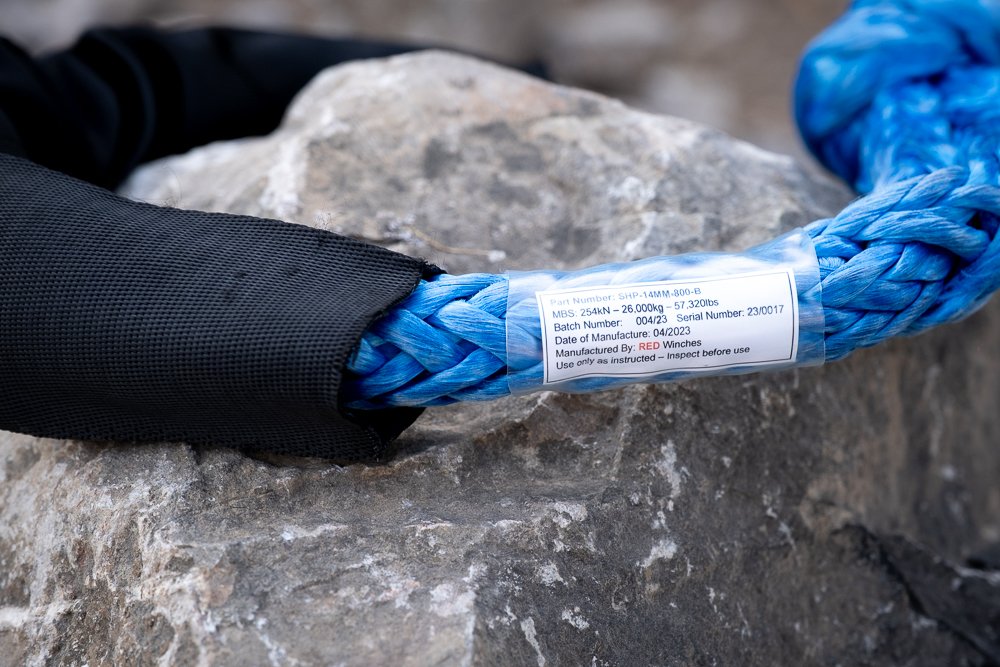

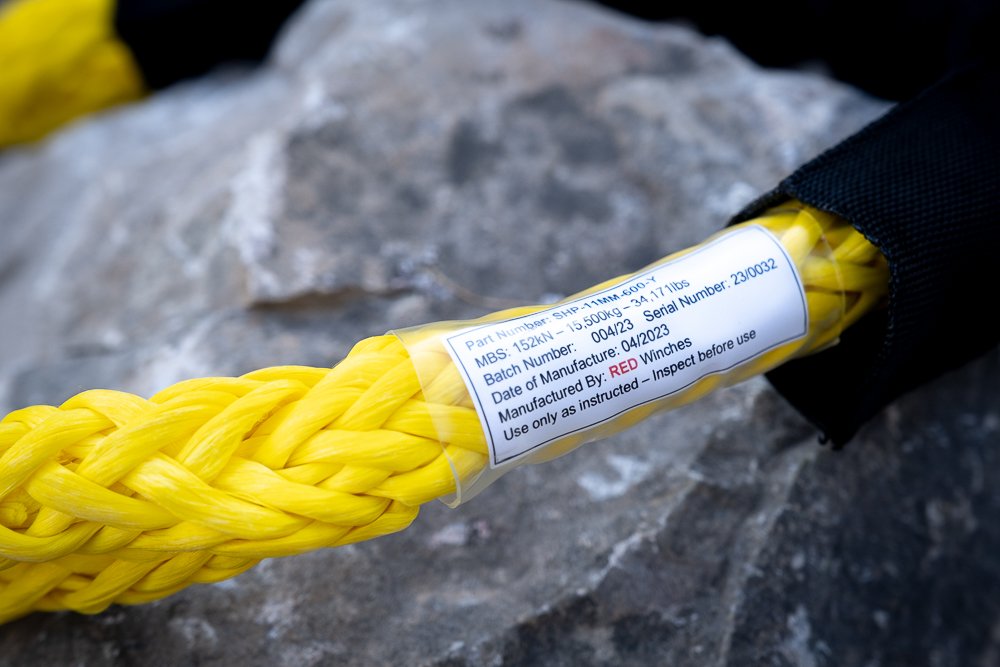

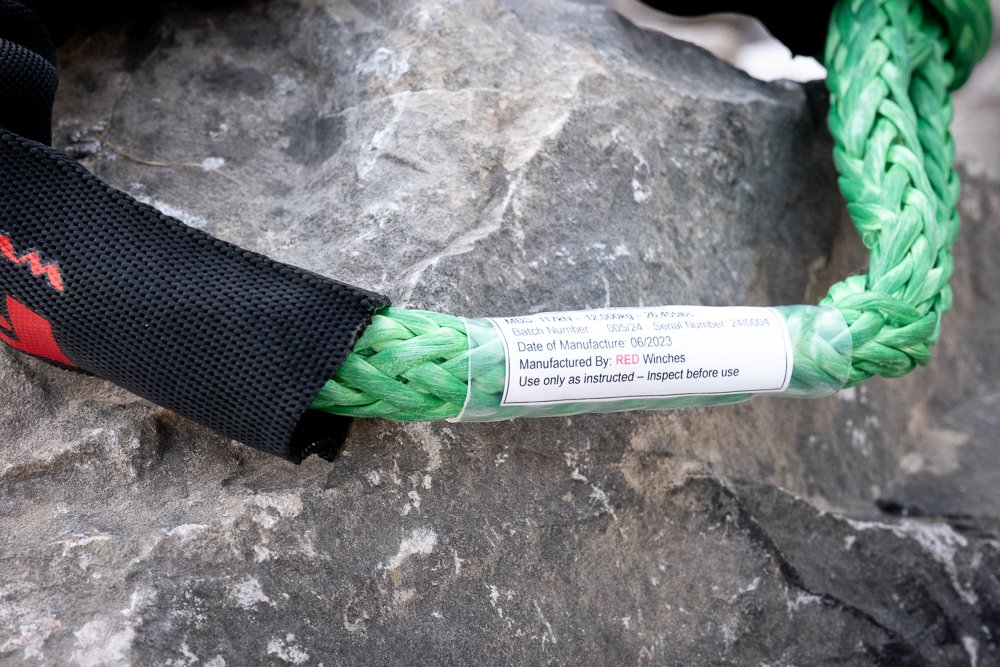

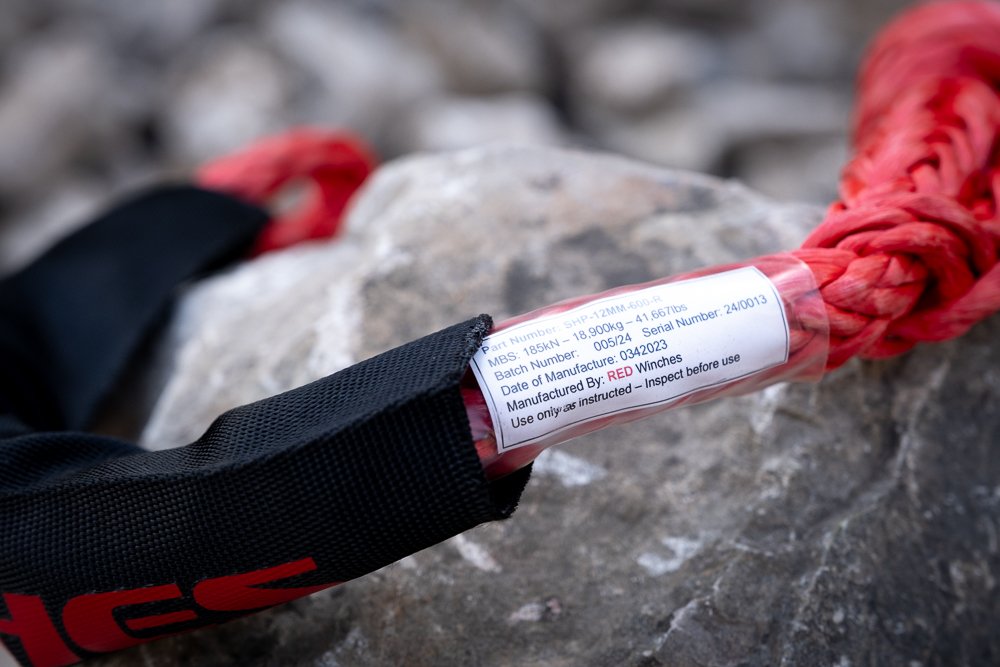

serial numbering for compliance on RED Winches soft shackles as standard

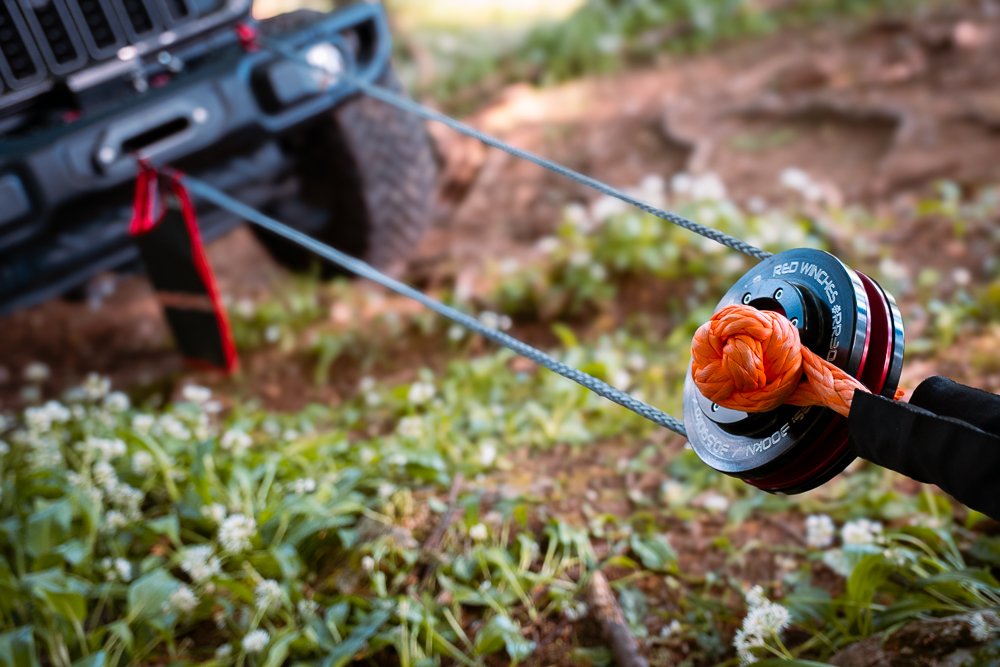

RED Winches soft shackles recovery equipment

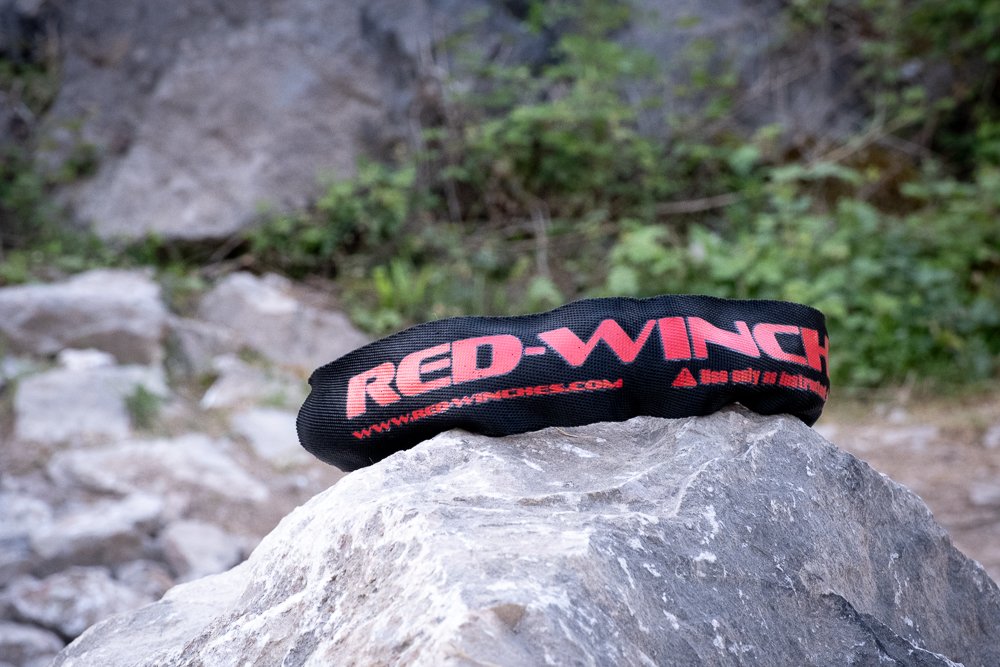

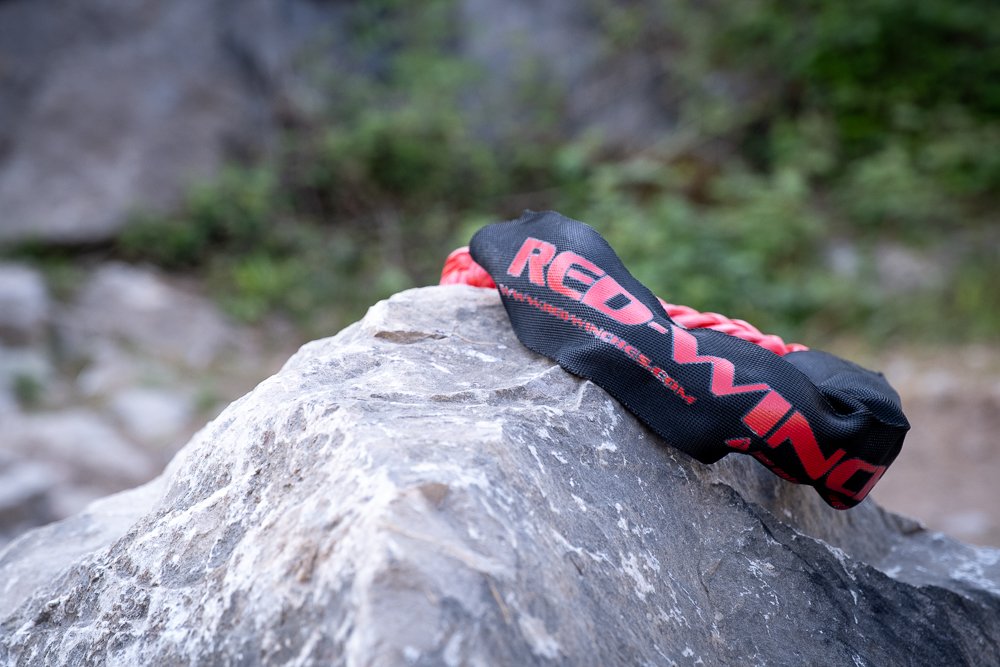

RED Winches soft shackle protective sheath

Key Features

What's In The Box

Specification

Weight & Dimensions

SKU	Colour	Rope Diameter	Minimum Breaking Strain (MBS)	Length

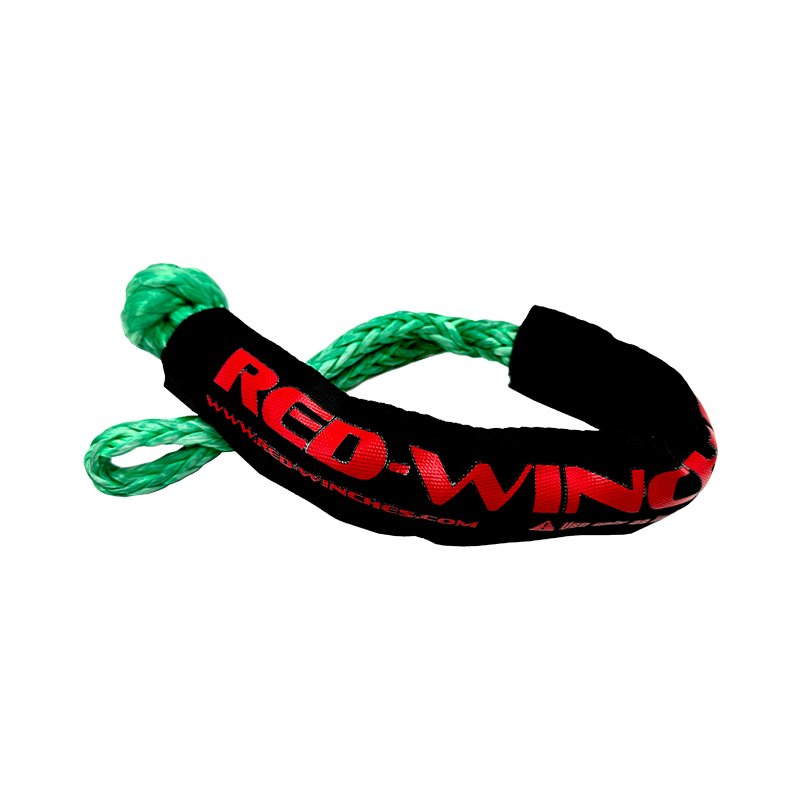

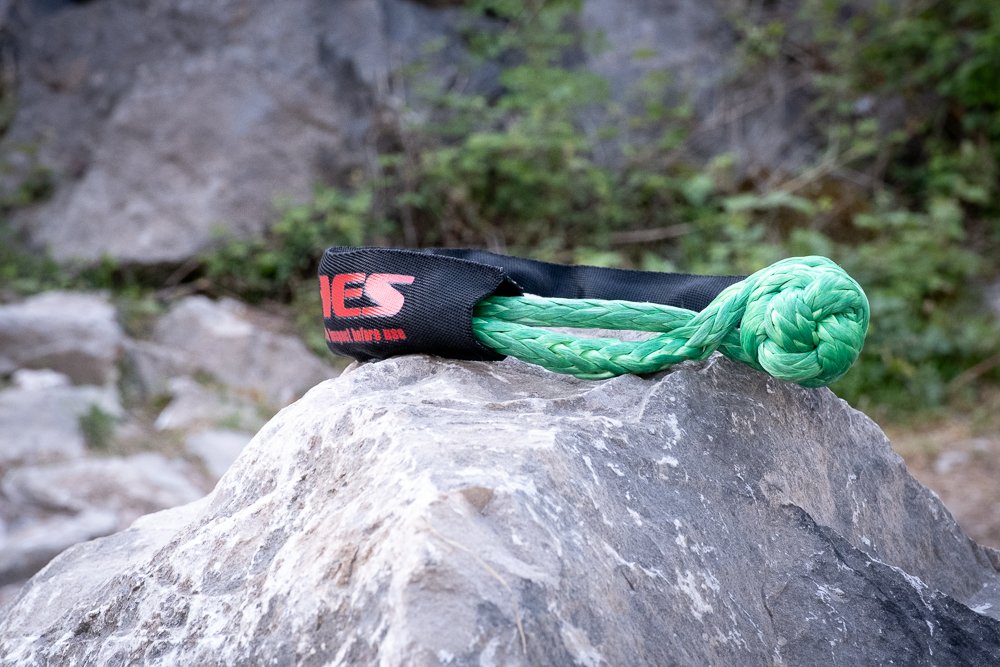

SHP-9MM-600-G	Green	9mm	117kN – 12,000kg – 26,455lbs	600mm

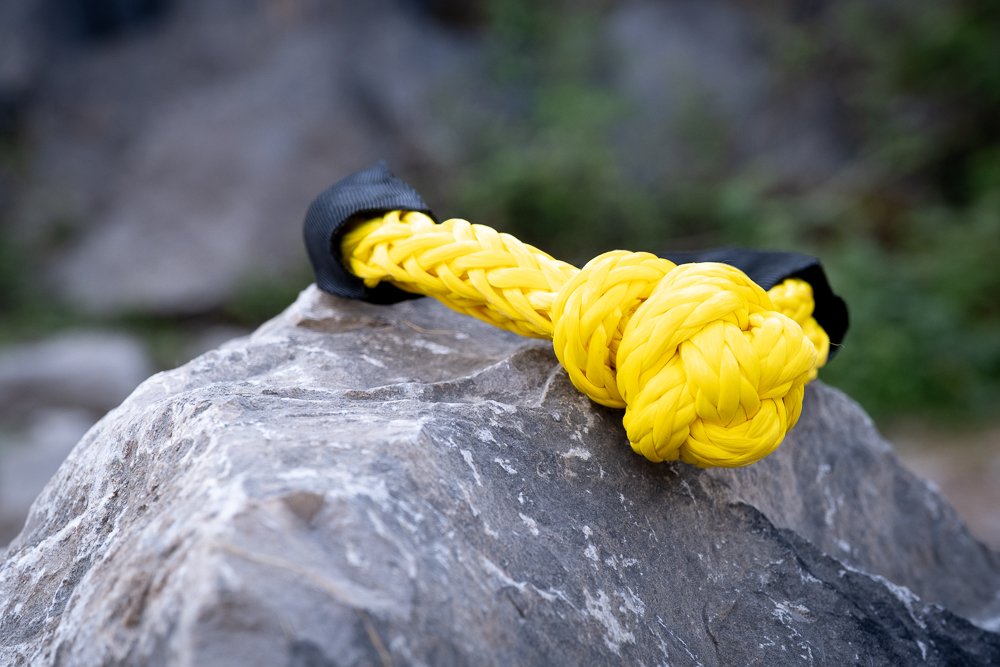

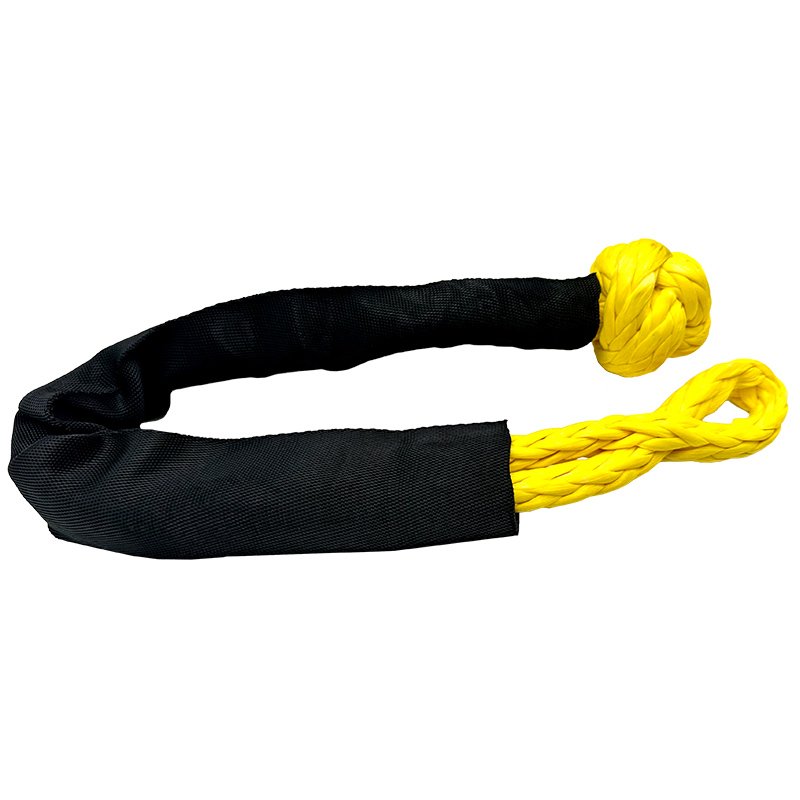

SHP-11MM-1200-Y	Yellow	11mm	152kN – 15,500kg – 34,171lbs	1200mm

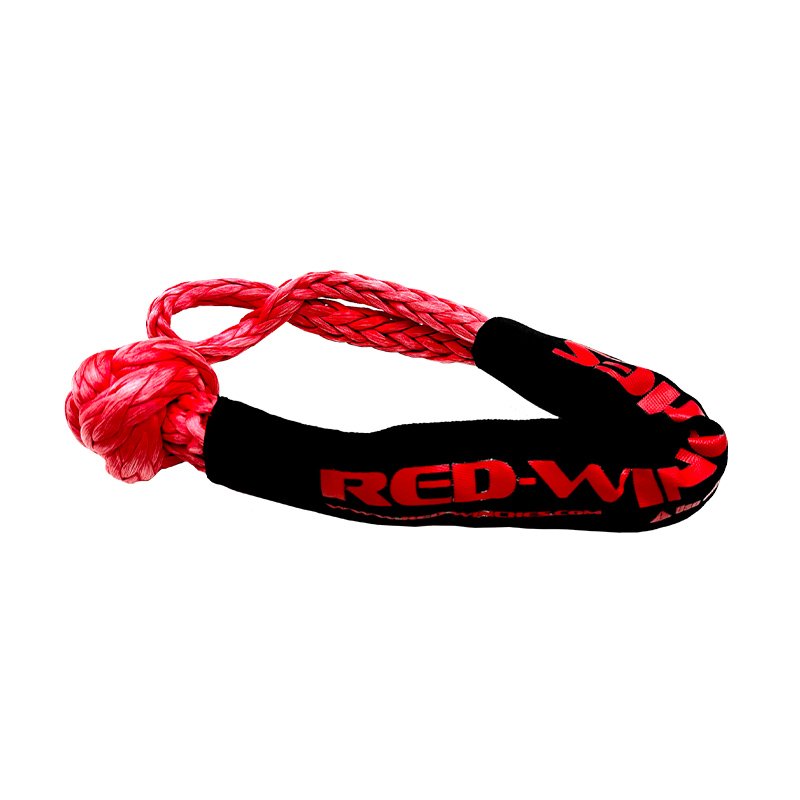

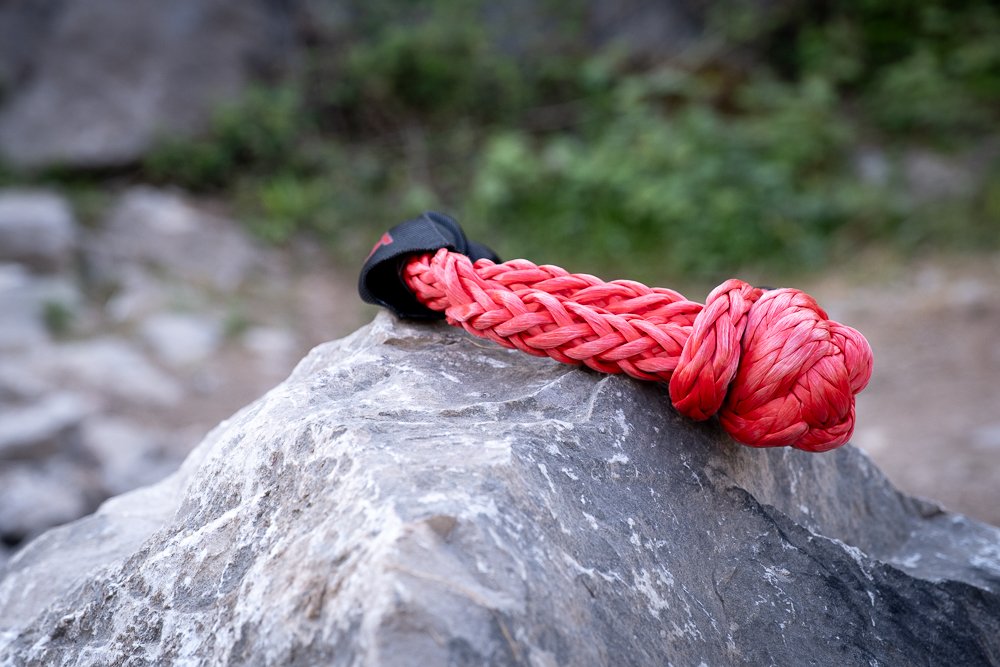

SHP-12MM-600-R	Red	12mm	185kN – 18,900kg – 41,667lbs	600mm
SHP-12MM-600-B-1	Black	12mm	185kN – 18,900kg – 41,667lbs	600mm

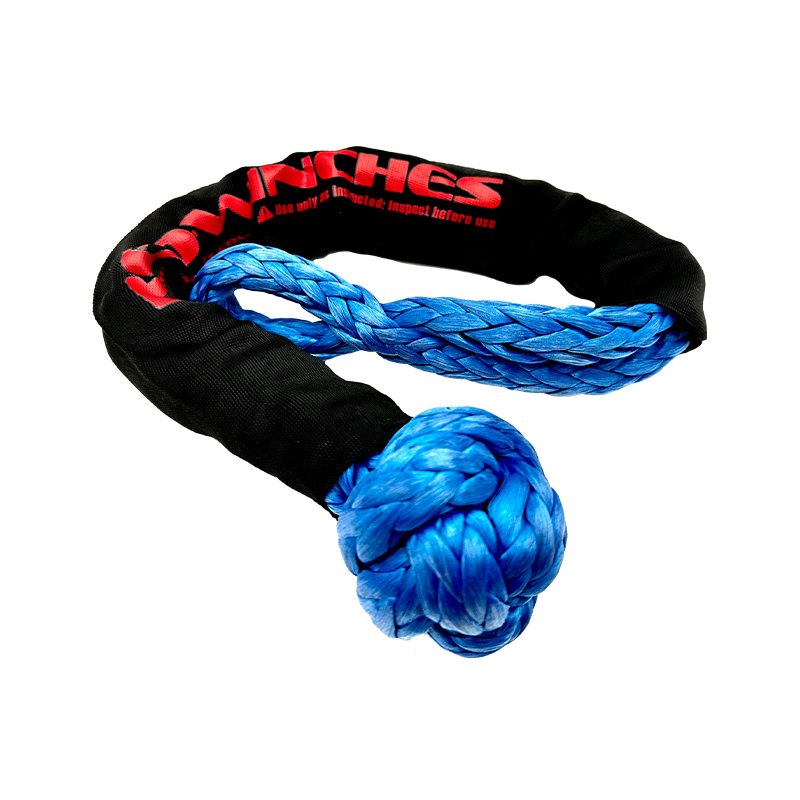

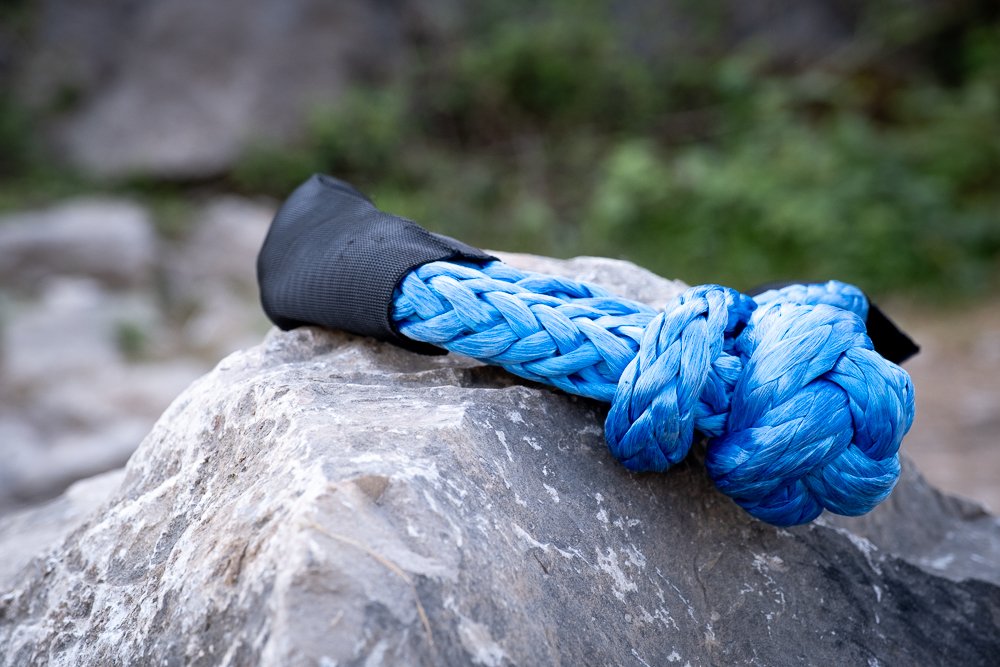

SHP-14MM-800-B	Blue	14mm	254kN – 26,000kg – 57,320lbs	800mm

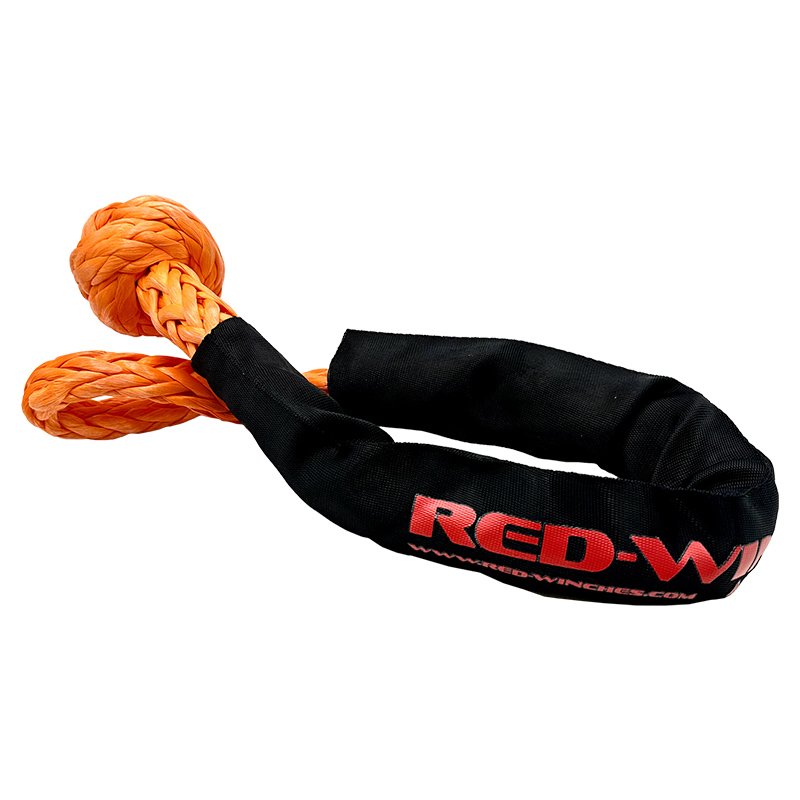

SHP-16MM-800-O	Orange	16mm	294kN – 30,000kg – 66,138lbs	800mm
SHP-20MM	Grey	20mm	500kN – 50T – 112,400Lbs	1400mm

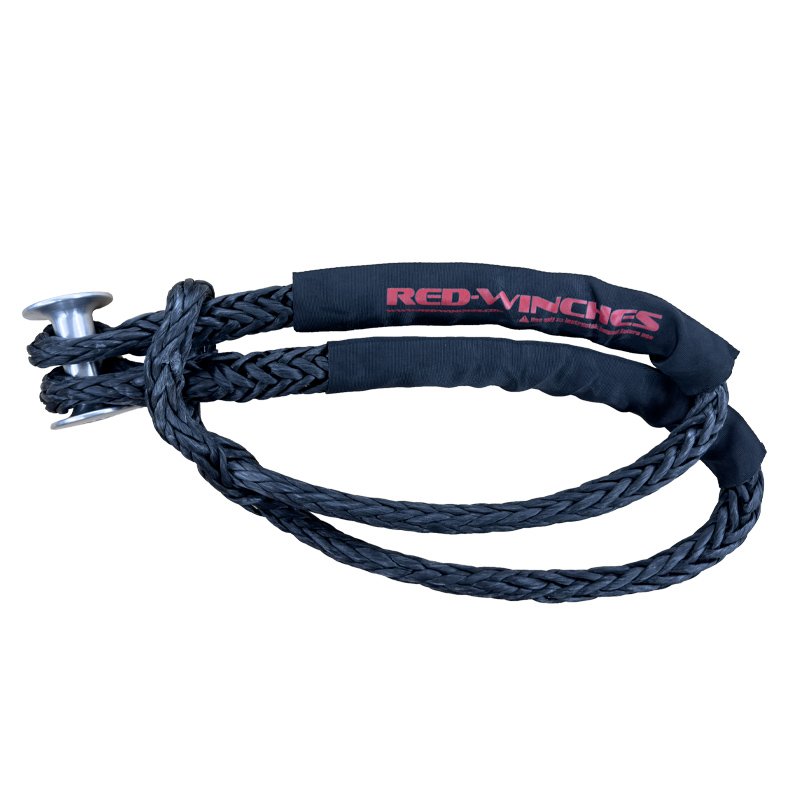

Heavy-Duty 50T Shackle Option

In 2020, RED Winches was commissioned to supply bespoke recovery gear for a specialist user group. This included a 50-tonne minimum breaking strain soft shackle. Achieved using a 20mm recovery rope, this model replaced the traditional knot with a metal dog bone, allowing:

Easier handling of thick rope
Engraved serial number and manufacturing date for traceability and compliance

SKU: N/A Categories: Recovery Equipment, Recovery Synthetic Equipment

Soft Shackles

Lightweight, High-Strength Alternative to Metal Shackles

A soft shackle, also known as a synthetic rope shackle, is a lightweight yet ultra-strong alternative to traditional metal shackles. Offering superior flexibility, improved safety, and excellent usability, it has become a go-to solution for 4×4 recovery, off-road use, marine applications, and more. First adopted by yachtsmen in 2009, soft shackles have rapidly grown in popularity among both professionals and enthusiasts due to their strength, reliability, and reduced risk of injury in the event of failure.

Price range: £25.00 through £325.00 ex. VAT

Size

Clear

Tested in the UK, complete with certified rating labels and serial numbers for certified compliance and traceability.

Comparing synthetic soft shackles vs. steel bow shackles for 4×4 recovery? Here is how they stack up on safety, weight, and usability:

Feature	Synthetic Soft Shackle	Steel Bow Shackle
Safety in Failure	Ultra-Low Hazard: Stored kinetic energy is negligible; drops safely to the ground if a line snaps.	High Risk: Converts into a heavy, high-velocity projectile under tension failure.
Weight & Handling	Ultra-Lightweight: Weighs under 500g (varies by size); floats on mud and water for easy retrieval.	Heavy & Bulky: Weighs 1kg–4kg+; sinks instantly in mud and water.
Vehicle Care	Zero Damage: Soft UHMWPE rope will not scratch paint, dent bumpers, or rattle during setup.	Rigid Metal Contact: Can chip powder-coating, scratch bumpers, and bind against recovery eyes.
Operation	Tool-Free: Fast loop-and-knot closure; never rusts, seizes, or binds under heavy loads.	Threaded Pin: Pin can jam, rust shut, or bind after heavy pulling, requiring tools to loosen.
