- 28hp QUAD Motor Power – Unparalleled performance for the most demanding conditions.
- Full drum disconnect freespool design
- CNC Machined Aerospace Aluminum Body – Ensuring maximum durability and minimum stress.
- Air Brake System – A patented system for superior control and stopping power. Read More.
- High-Efficiency Electrical Setup – Featuring premium copper bus bars and Albright solenoids.
- Customisable Fairlead Options – Choice of aluminium or stainless steel fairlead.
- Exceptional Pulling Capacity – Standard gearing supports up to 4500kg (9920 lbs); Overdrive gearing up to 4000kg (8818lbs)
- High-Speed Operation – Up to 90m/min (295 ft/min) with Overdrive gearing for rapid winching

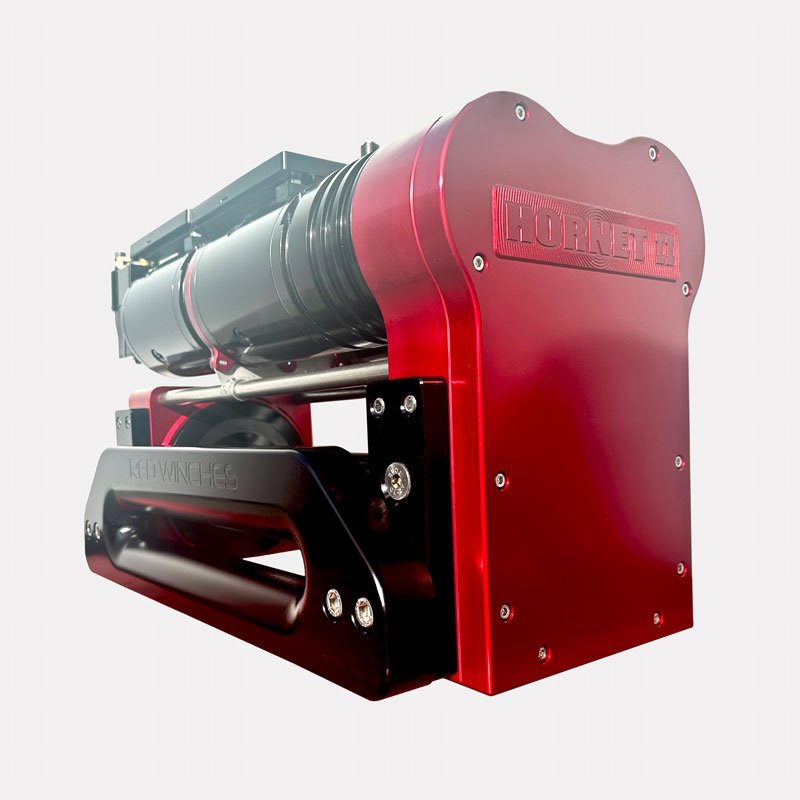

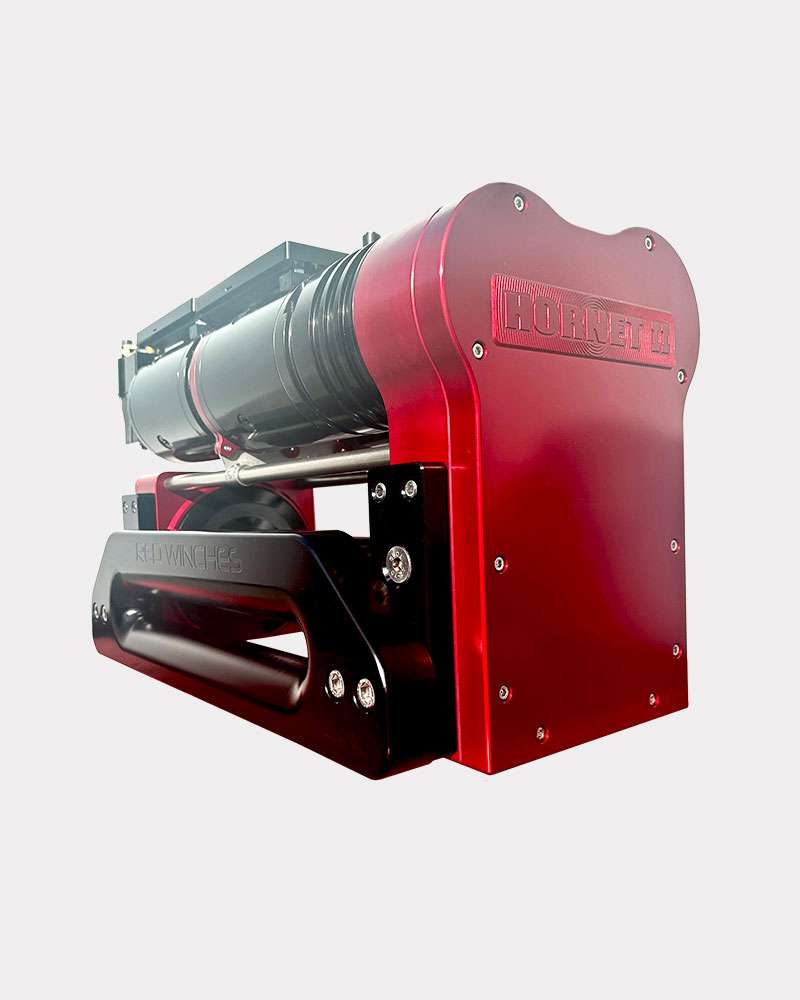

- Hornet2 Quad winch with anodised CNC-machined body
- Integrated solenoid for air brake operation
- High-efficiency copper bus bar motor connections

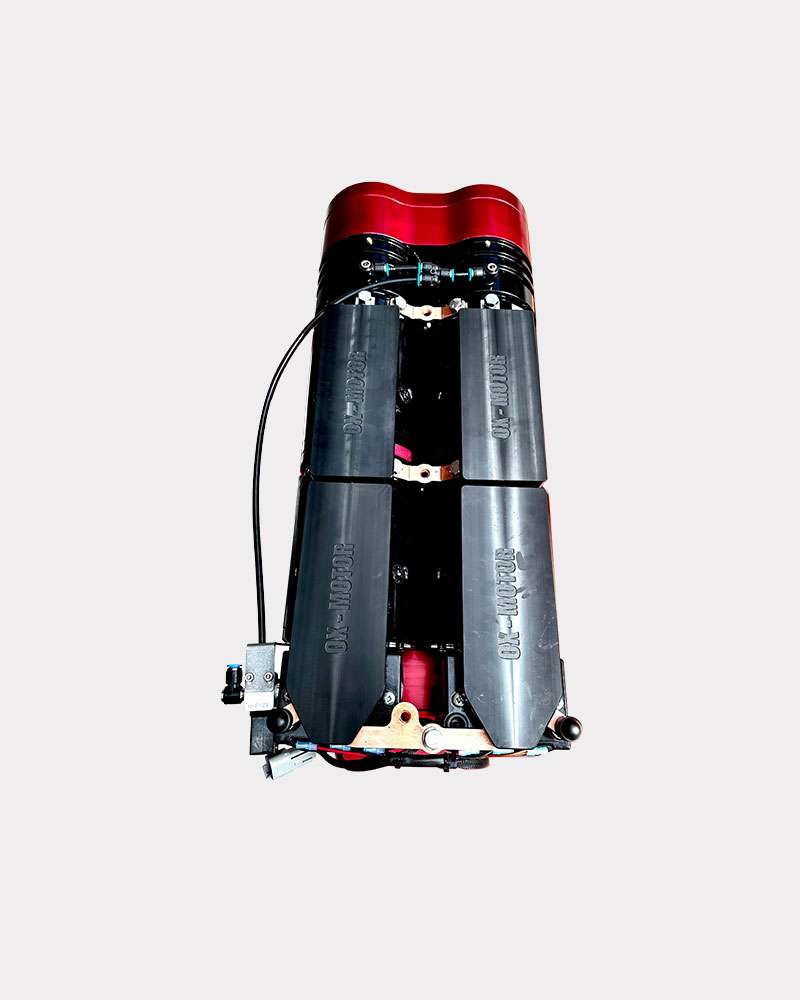

- Ox Motors with Albright DC182 Heavy Duty Ultimate solenoids
- Choice of aluminium or stainless steel fairlead
- Plasma Lock and User Manual
XL Drum:
The XL drum can hold 78m of 11mm plasma or synthetic rope.
The XL drum can hold 67m of 12mm plasma or synthetic rope.
The XL drum can hold 50m of 14mm plasma or synthetic rope.
Due to the violent power delivery of the Hornet2 Quad motor, we recommend using 14mm rope as a minimum.
The full range of RED Winches ropes can be found here
The Ultimate Competition Electric Winch
The Hornet2 Quad motor is the pinnacle of high-performance electric winches, engineered by RED Winch for the 4×4 competition and Motorsport markets. Designed to meet the rigorous demands of off-road racing and extreme environments, the Hornet2 QUAD delivers unrivalled power with class leading speed, and reliability.
Electrical System Requirements
To maximise performance, the Hornet2 requires:
- Minimum 200A alternator (12V) or 110A alternator (24V)
- FOUR Odyssey PC1750 or equivalent batteries
- At least TWO 70mm² high-quality positive cable
- At least TWO 70mm² high-quality negative cable (DO NOT ground to the chassis)
- Clean electrical joints with conductive grease in water-prone areas
Built for Competition & Reliability
- 83.9kg Winch Weight (without rope)
- 2-Year Mechanical Warranty – Covers all mechanical components (excludes wear parts and electrical components)
- Quick-Service Brake Assembly – Brake pads can be replaced in just 15 minutes
The Hornet2 Quad is your ultimate solution for superior performance, whether in competition, overlanding, or extreme off-road recovery. Built for speed with exceptional power, and reliability, it’s the winch that serious competitors trust.
Order Now and Dominate the Off-Road!
The gearbox has been specifically designed for strength, power, and ease of service. All gears are manufactured from 655-M13 nickel chromium-molybdenum steel and case hardened to give maximum strength (1100 N/mm²) and excellent durability. Straight cut gears provide strength where its most needed.
The end cover is sealed via an O-ring and groove, ensuring a watertight seal. Once the cover is removed access to all gears is possible and only takes 5 mins to service / inspect all gears and re-assemble. The gearbox runs in grease, not oil making it much easier to service in the field.
High-Speed, High-Power Performance
- Standard Speeds: 72 metres per minute (236 feet per minute).
- Overdrive Gear Set: 82 metres per minute (268 feet per minute)
- Drum RPM: Standard gears 230 RPM, Overdrive Gears 254 RPM
- Overvolting Option: Allows 24V operation on 12V motors for extreme power and speed (use with caution)
Gearbox
- Straight-Cut Gears: Manufactured from 655-M13 nickel chromium-molybdenum steel, case hardened to 1100 N/mm².
- Grease Lubrication: Easier field servicing compared to oil-based systems.
- Quick Access Design: Gearbox cover removal enables easy servicing in just five minutes.
Important Note:
A vehicle with driver has to be 1800kg or less for overdrive gear set to work successfully
The Hornet2 Quad is not supplied with a rope or hook.
The XL drum can hold 78 m of 11 mm plasma or synthetic rope.
The XL drum can hold 67 m of 12 mm plasma or synthetic rope.
The XL drum can hold 50m of 14mm plasma or synthetic rope.
Due to the Hornet2 Quad motor’s high-power delivery, we recommend using a minimum of 14mm rope.
Weight – 110kg (242.508)
Hornet2 Quad
The Hornet2 Quad is the pinnacle of competition electric winches, engineered for 4×4 and Motorsport excellence. With a powerful 28hp Quad motor arrangement, CNC-machined aerospace-grade aluminium body, and an advanced air-free spool and air brake system, it delivers unmatched control, strength, and reliability.
Price range: £4,085.00 through £4,210.00 ex. VAT
