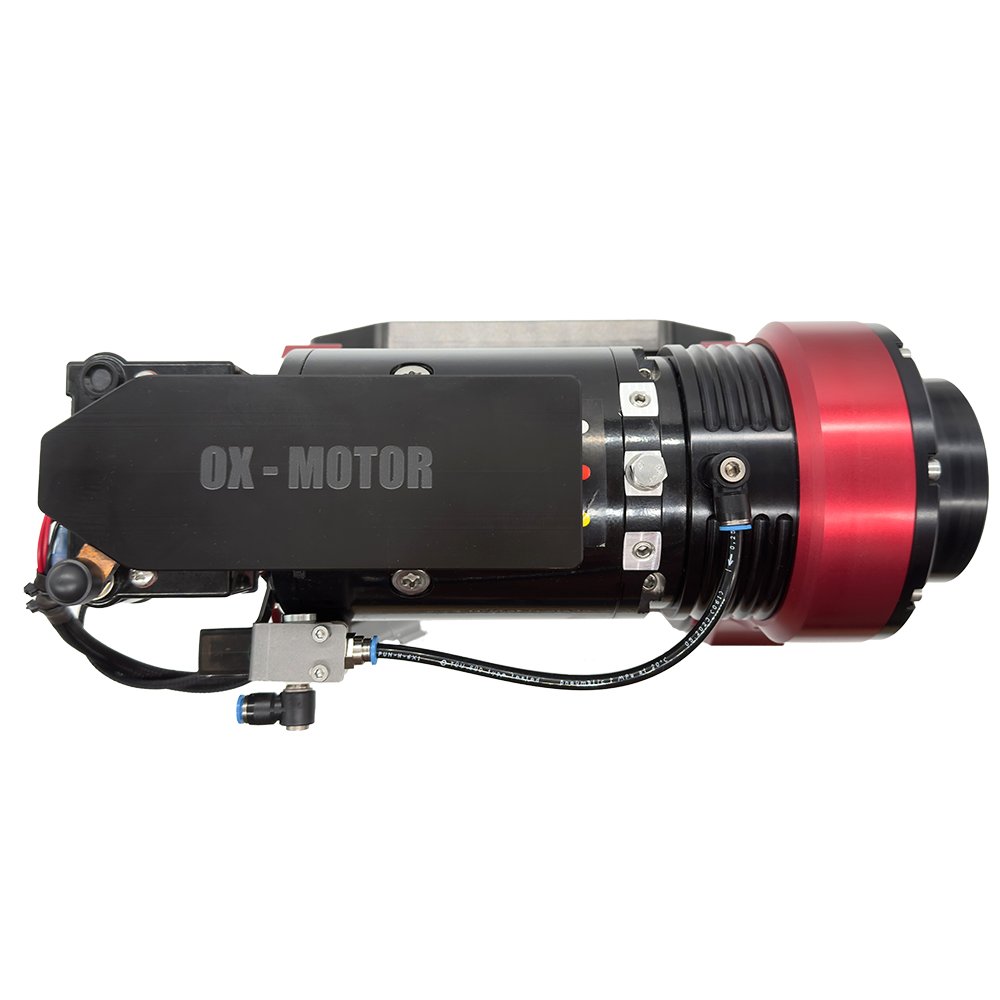

- 7hp Single Motor or 14hp Twin Ox Motor* – Unparalleled performance and versatility for every situation.
- Four gearing options enable the user to adapt the winch for the platform it is installed on.
- Full drum disconnect freespool design
- CNC-machined aerospace aluminium body – Ensuring maximum durability and minimum stress.
- Air Brake System – A patented system for superior control and stopping power. Read More.
- High-Efficiency Electrical Setup – Featuring premium copper bus bars and Albright solenoids.
- CNC Machined Aluminium Fairlead – Haws fairlead CNC machined to give the best possible bend radius.
- Exceptional Pulling Capacity – From Race gearing at 2500kg (5500lbs) to Twin Motor Titan 10000kg (22000lbs).
- High-Speed Operation – Up to 58m/min (190 ft/min) with Racegearing for rapid winching.

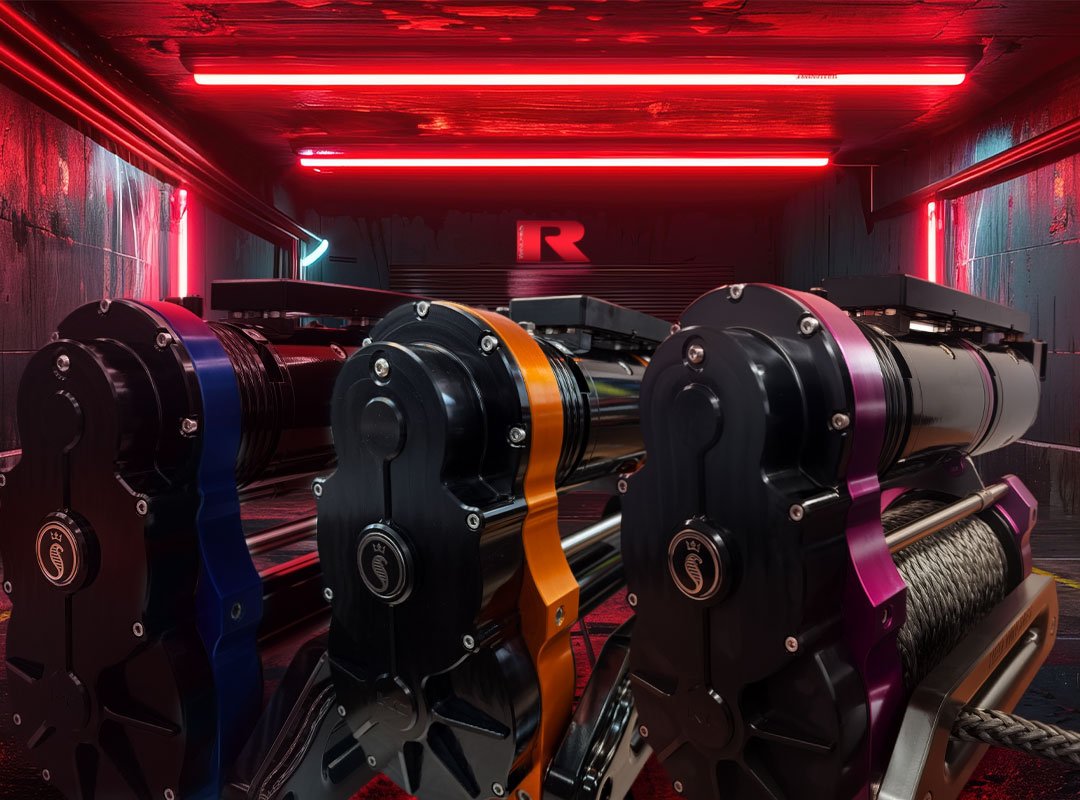

- Choice of colours, either anodised or Cerakote (anodised red and black as standard)
*Twin motor option only available on medium and XL length drum models.
King Cobra winch
Rope with hook – please see Rope & Hook tab for rope details
Plasma lock
Air solenoid and bracket assembly for air brake and air freespool control
3m Wiring loom extension to run back to the dash switches
Winch-in / winch-out switch
Freespool switch
8.8 grade Mounting bolts and washers x 4
3m of 6mm Air line
Manual isolator switch
Power cables:
Single motor models:
2M x 50mm2 Negative cable with lugs
0.4M x 50mm2 and 1.6M x 50mm2 Positive cables with lugs
Twin motor models:
2M x 70mm2 Negative cable with lugs
0.4M x 70mm2 and 1.6M x 70mm2 Positive cables with lugs
The Drum is sealed with high-quality seals at both ends, making the winch fully watertight and capable of operating underwater. Behind these seals, the drum bearings are equipped with free-running ball bearings that are packed with waterproof grease
Standard Drum:
The Std drum can hold 30m of 11mm plasma or synthetic rope.
The Std drum can hold 25m of 12mm plasma or synthetic rope.
Medium (+76mm) Drum:
The Medium drum can hold 48m of 11mm plasma or synthetic rope.
The Medium drum can hold 36m of 12mm plasma or synthetic rope.
XL (+203mm) Drum:
The XL drum can hold 55m of 11mm plasma or synthetic rope.
The XL drum can hold 48m of 12mm plasma or synthetic rope.
The XL drum can hold 35m of 14mm plasma or synthetic rope.
The full range of RED Winches ropes can be found here
The King Cobra utilises a cascade-style gearbox to transmit the power from the motor down to the drive shaft. The gears are manufactured from chromium molybdenum steel and case hardened to give maximum strength (Up to 1230 N/mm2) and excellent durability. The gearbox runs in semi-liquid grease, not oil, making it much easier to service.
Gearset |
Single Motor |
Twin Motor |
| Race | ||
| Pulling Capacity | 2500kg / 5,511lbs | 4,500kg / 10,000lbs |
| No Load Line Speed (per min) | 58m / 190ft | 58m / 190ft |
| Line Speed at 1000kg (2200lbs) (per min) | 10.5m / 34.4ft | 18.5m / 60.7ft |
| Overland | ||
| Pulling Capacity | 3500kg / 7,716lbs | 6,000kg / 13,227lbs |
| No Load Line Speed (per min) | 36m / 118ft | 36m / 118ft |
| Line Speed at 1000kg (2200lbs) (per min) | 12m / 39.4ft | 15.8m / 51.8ft |
| Adventure | ||
| Pulling Capacity | 5,500kg / 12,125lbs | 9,000kg / 19,841lbs |
| No Load Line Speed (per min) | 27.7m / 90.9ft | 27.7m / 90.9ft |
| Line Speed at 1000kg (2200lbs) (per min) | 9m / 29.5ft | 11.5m / 37.7ft |
| Titan | ||
| Pulling Capacity | 7,000kg / 15,432lbs | 10,000kg / 22,000lbs |
| No Load Line Speed (per min) | 22.8m / 74.8ft | 22.8m / 74.8ft |
| Line Speed at 1000kg (2200lbs) (per min) | 7.5m / 24.6ft | 10m / 32.8ft |
Please choose your gearing and motor option from the menu.
The King Cobra is supplied with a rope and a hook. The diameter of the supplied rope depends on the chosen gearing option.
The length of the rope depends on the drum length chosen.
Please see the chart below for the rope size supplied with each model.
| King Cobra, STD Drum, Single Motor, Race Gears | 11mm x 30m rope black hook |
| King Cobra, STD Drum, Single Motor, Overland Gears | |
| King Cobra. STD Drum, Single Motor, Adventure Gears | 12mm x 25m black hook |
| King Cobra, STD Drum, Single Motor, Titan Gears | |
| King Cobra, ML Drum, Single Motor, Race Gears | 11mm x 48m rope black hook |
| King Cobra, ML Drum, Single Motor, Overland Gears | |
| King Cobra, ML Drum, Single Motor, Adventure Gears | 12mm x 36m black hook |
| King Cobra, ML Drum, Single Motor, Titan Gears | |
| King Cobra, ML Drum, Twin Motor, Race Gears | 11mm x 48m rope black hook |
| King Cobra, ML Drum, Twin Motor, Overland Gears | 12mm x 36m black hook |
| King Cobra, ML Drum, Twin Motor, Adventure Gears | |
| King Cobra, ML Drum, Twin Motor, Titan Gears | |
| King Cobra, XL Drum, Single Motor, Race Gears | 11mm x 55m rope black hook |
| King Cobra, XL Drum, Single Motor, Overland Gears | |
| King Cobra, XL Drum, Single Motor, Adventure Gears | 12mm x 48m black hook |
| King Cobra, XL Drum, Single Motor, Titan Gears | |
| King Cobra, XL Drum, Twin Motor, Race Gears | 11mm x 55m rope red hook |
| King Cobra, XL Drum, Twin Motor, Overland Gears | 12mm x 48m rope red hook |
| King Cobra, XL Drum, Twin Motor, Adventure Gears | 14mm x 35m RED hook |
| King Cobra, XL Drum, Twin Motor, Titan Gears |
Standard Drum – Single Motor = 37KG (81.5lbs)
Shipping weight = 52.5KG (115lbs)
Medium Drum – Single Motor = 39.5KG (87lbs)
Shipping weight = 55KG (121lbs)
Medium drum – Twin motor = 49.5KG (109lbs)
Shipping weight = 65KG (143.5lbs)
XL drum – Single motor = 45KG (99lbs)
Shipping weight = 60.5KG (133.5lbs)
XL Drum – Twin motor = 55KG (121lbs)
Shipping weight = 70.5KG (155.5lbs)
King Cobra

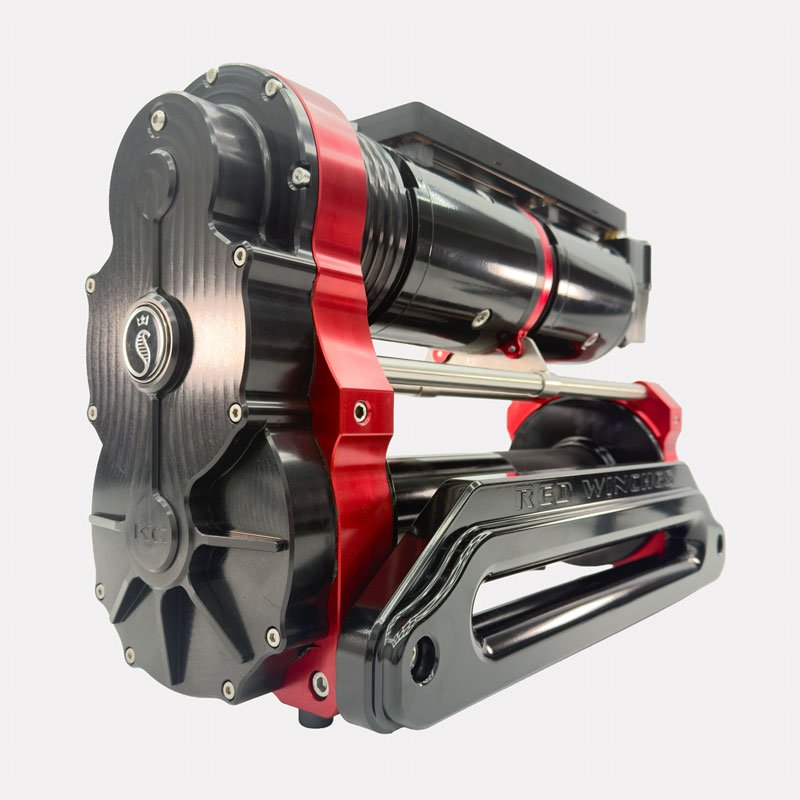

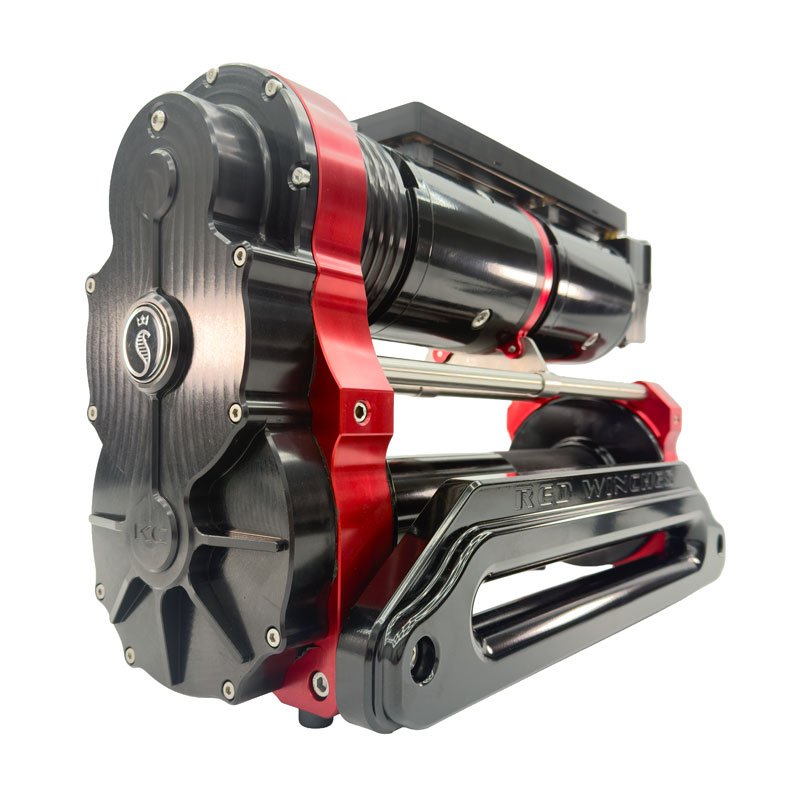

King Cobra from RED Winches Ltd is unlike any other electric winch on the market. Its modular design gives the owner the ability to change gear ratios, motor setups and drum lengths as their requirements change. The King Cobra is truly a winch for life. With three drum lengths, the rope capacity can fit all situations from competitions to recovery and utilities.
