Full Drum Disconnect Freespool: Features an advanced drum disconnect system for effortless manual spooling (see the Drum tab for full details).
-
Class-Leading Performance: Delivers top-tier line speeds paired with the lowest current draw under load in its class (see Performance Data tab for detailed metrics).
-
Advanced Control Electronics: Winch-mounted CNC-machined control box featuring an Albright heavy-duty solenoid, low-resistance copper busbar system, and integrated RED Winches wireless remote.
-
Versatile Controller Options: Includes an integrated 4-pin, military-spec socket for optional wired hand-controller operation.
-

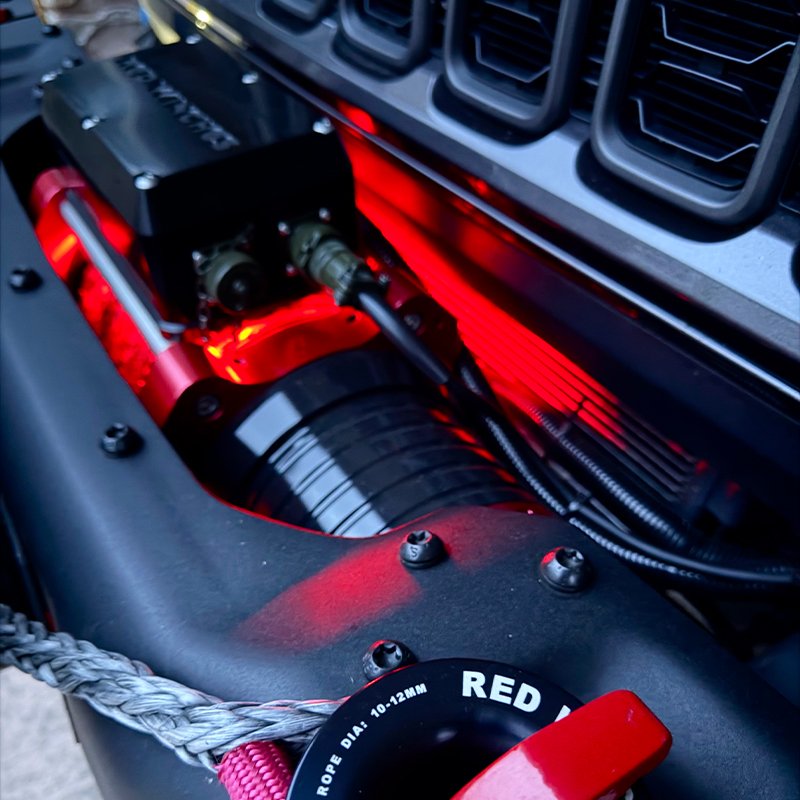

Integrated Drum Illumination: Dual red LED strips on the underside illuminate the drum for clear visibility in low-light conditions.
-
Flexible Mounting: The control box can be remote-mounted away from the winch to suit bespoke vehicle packaging.
-
Billet Aluminium Housings: Precision CNC-machined from solid aircraft-grade billet aluminium for maximum structural integrity and weight saving.
-
Cerakote Ceramic Finish: Coated in ultra-durable Cerakote thin-film ceramic for superior abrasion and corrosion resistance.
-
Billet Hawse Fairlead: Supplied with a matching precision CNC-machined billet aluminium hawse fairlead.
-
Synthetic Rope & Hook: Pre-fitted with RED Winches synthetic rope and heavy-duty hook (see Rope & Hook tab for specifications).
-
Ultra-Durable Gearbox: Case-hardened chromium-molybdenum steel gears (rated up to 1,230 N/mm²) engineered for extreme torque and longevity.
-
Field-Serviceable Lubrication: Utilises semi-liquid grease rather than oil, enabling hassle-free maintenance at home or in the field.
NOMAD2 Winch
Wireless hand controller with lanyard
Rope with hook – please see Rope & Hook tab for rope details
Wireless winch control system
Plasma Lock
12.9 grade Mounting bolts and washers x 4
Manual isolator switch
Power cables:
2M x 50mm2 Negative cable with lugs
0.4M x 50mm2 and 1.6M x 50mm2 Positive cables with lugs
The NOMAD2 drum is CNC machined in 3 parts. The ends are screwed onto the drum, then cross-drilled and pinned.
Why do we do this? When a drum has the ends welded on it distorts slightly due to the heat. Because all RED Winches winch drums run in sealed roller bearings instead of bushings and are fitted with a lip seal between the winch body and the drum flange. The drum must run concentric to enable the lip seal to work correctly.
The NOMAD2 is fitted with the RED Winches full drum disconnect freespool.
What is a full drum disconnect freespool? If you have ever had to pull rope from a lowline winch, you will have felt the resistance. This is because when you put a traditional lowline winch into freespool and pull the rope from the drum, you are not only rotating the drum, you are also rotating the gearbox assembly. This can make pulling the rope a difficult task. To the point where some users will just power the rope out with the motor rather than using the freespool function. Not only is this slower, but it is also consuming power from the vehicle’s batteries just before you start using the winch, and this is the exact time you want the batteries at maximum charge!
When the user puts the NOMAD2 into freespool, the drum is disconnected from the gearbox. The drum is supported in roller bearings, and the only resistance the user feels as they pull the rope from the drum is the very slightest resistance from the roller bearings. The result? No more two-handed pulls with one foot on the bumper. Just grab the rope and go!

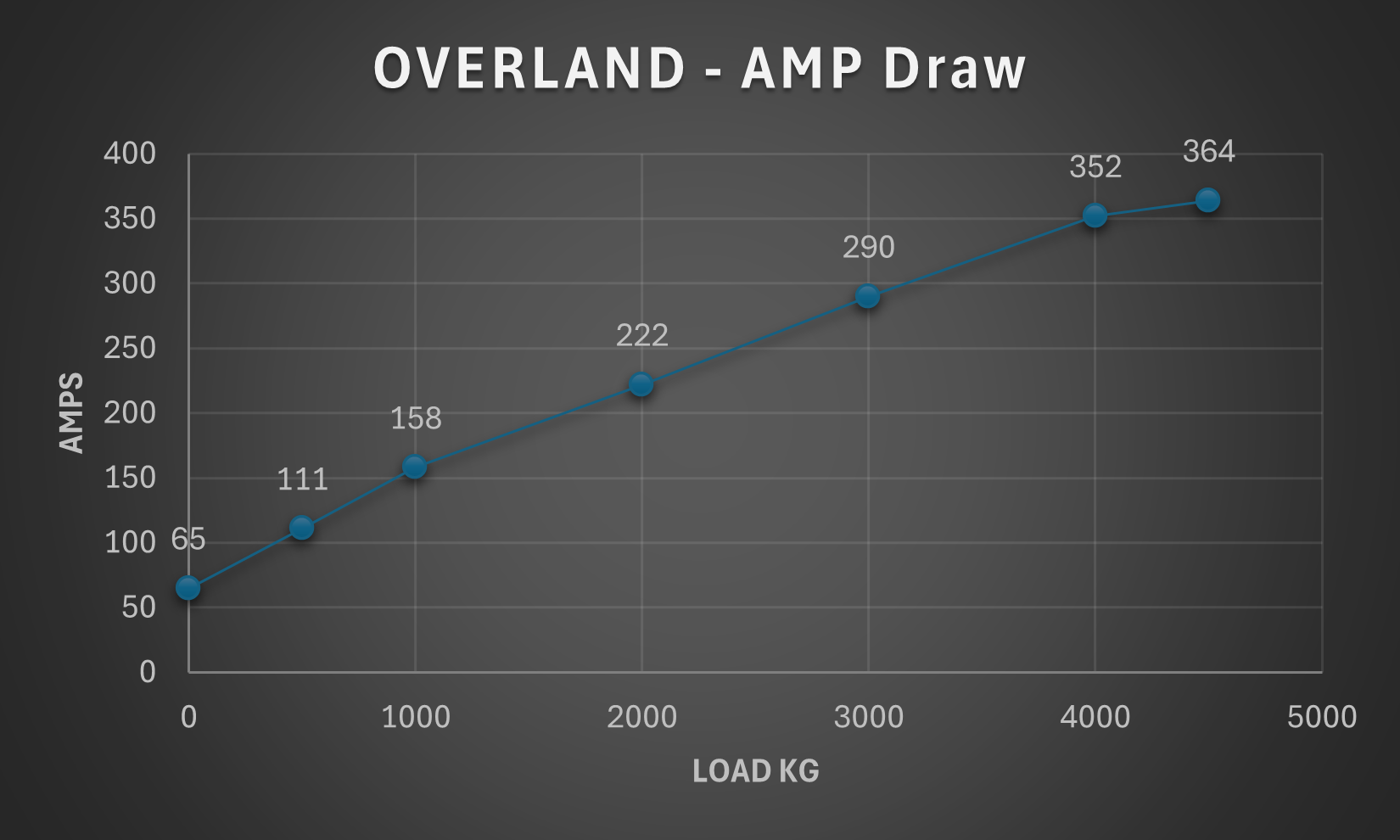

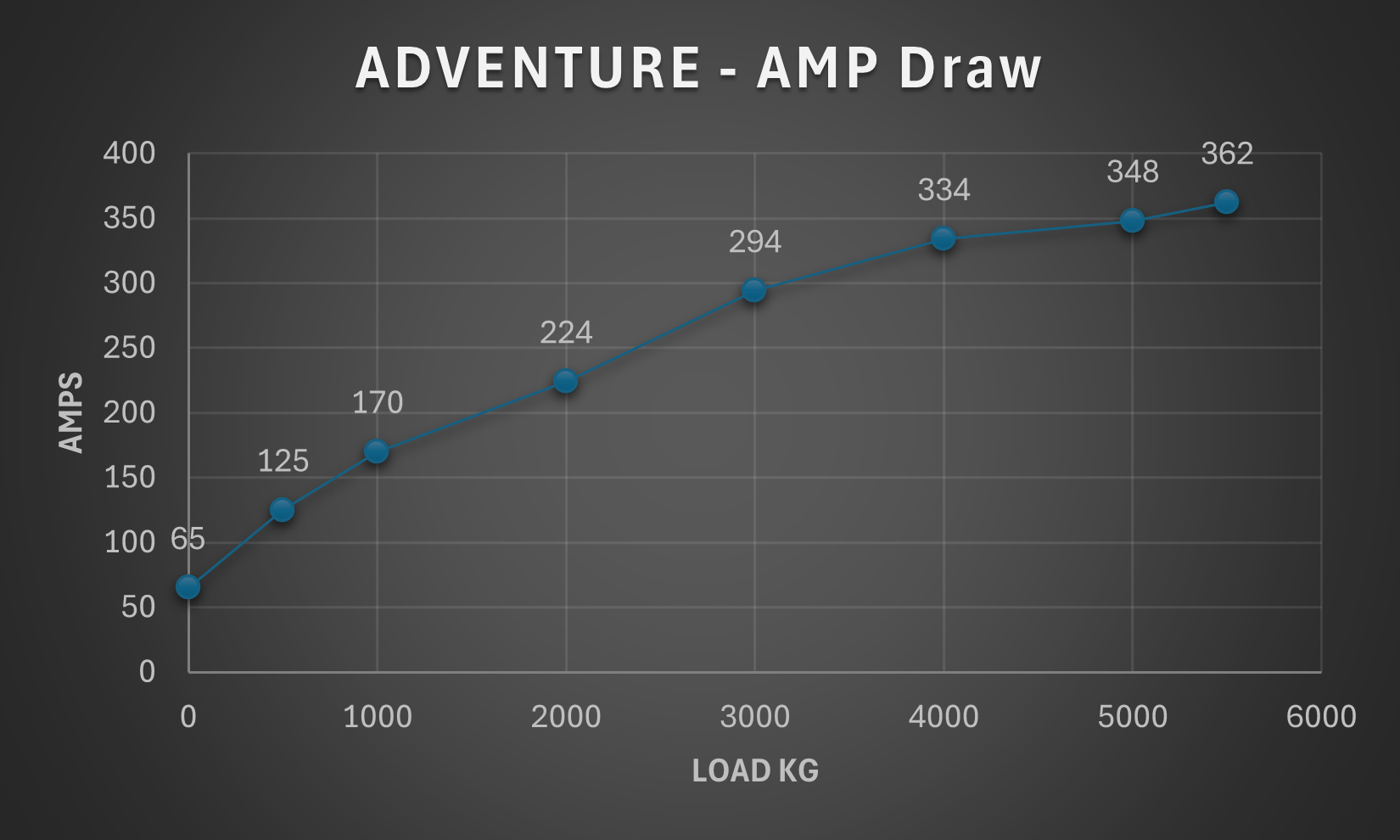

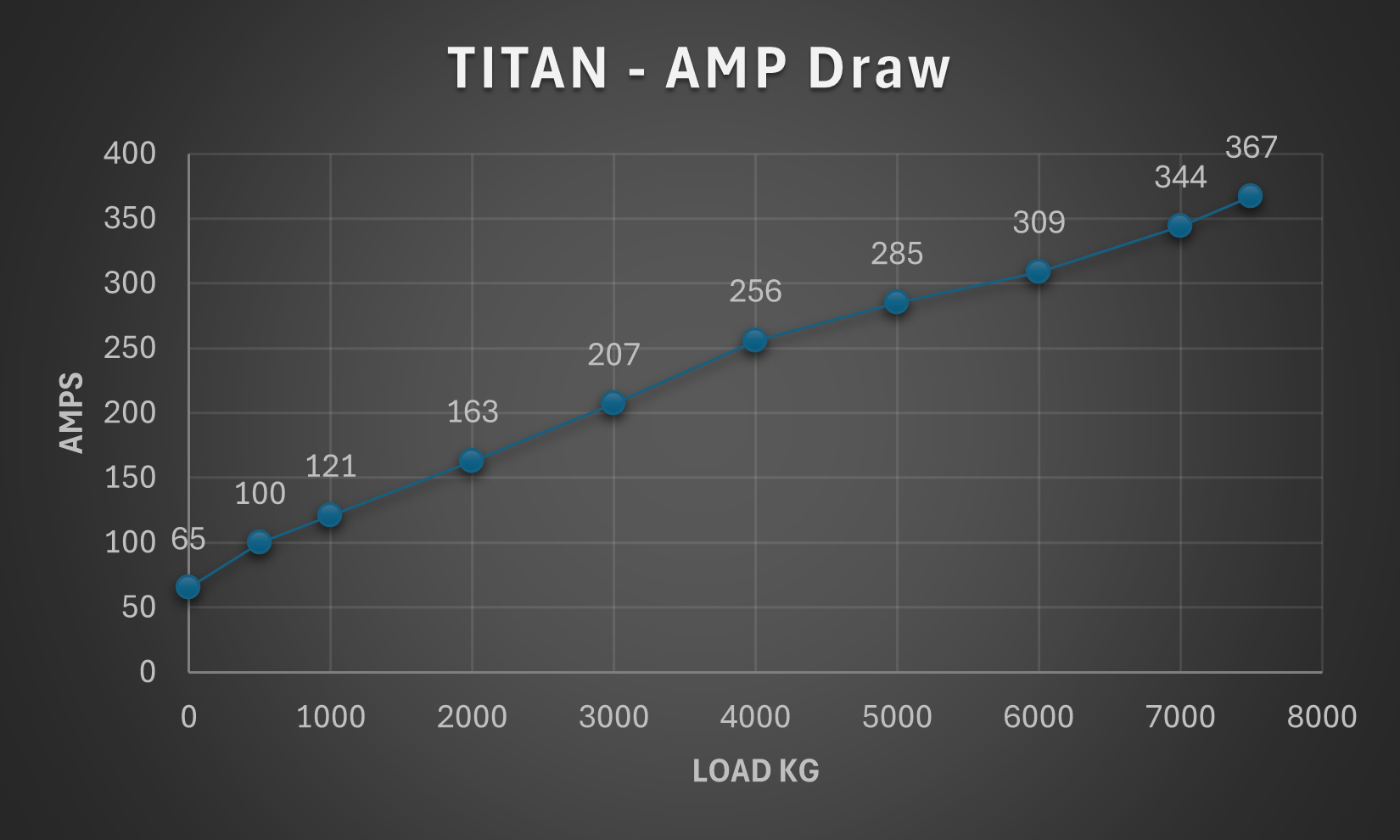

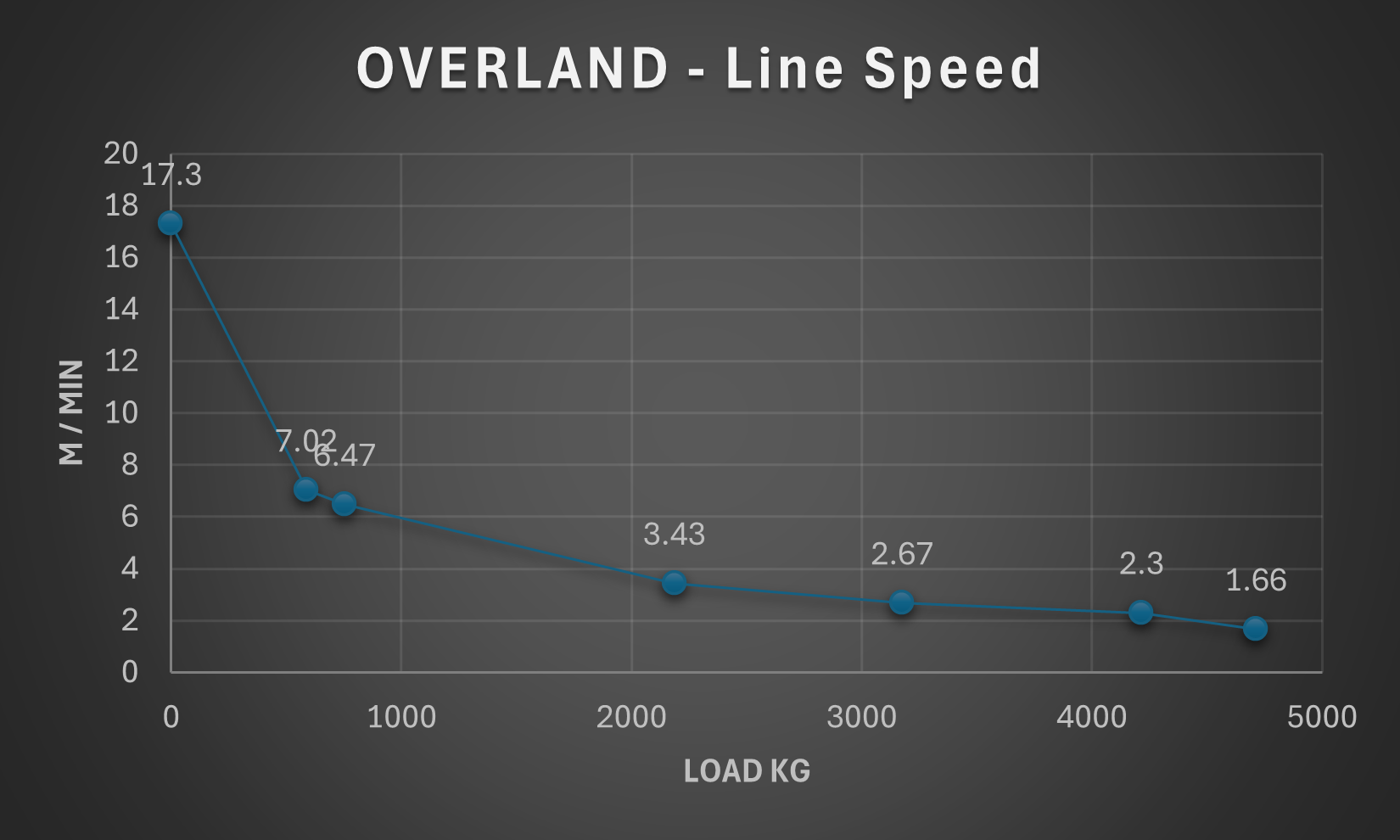

NOMAD Winch – Available with 3 Gearing Options – Please see gallery images for related performance charts.
The NOMAD Winch offers three gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds:
OVERLAND
Pulling Capacity: 4,500kg (9,920 lbs)
No Load Line Speed: 17.3 m/min (56.8 ft/min)
Drum RPM – 41

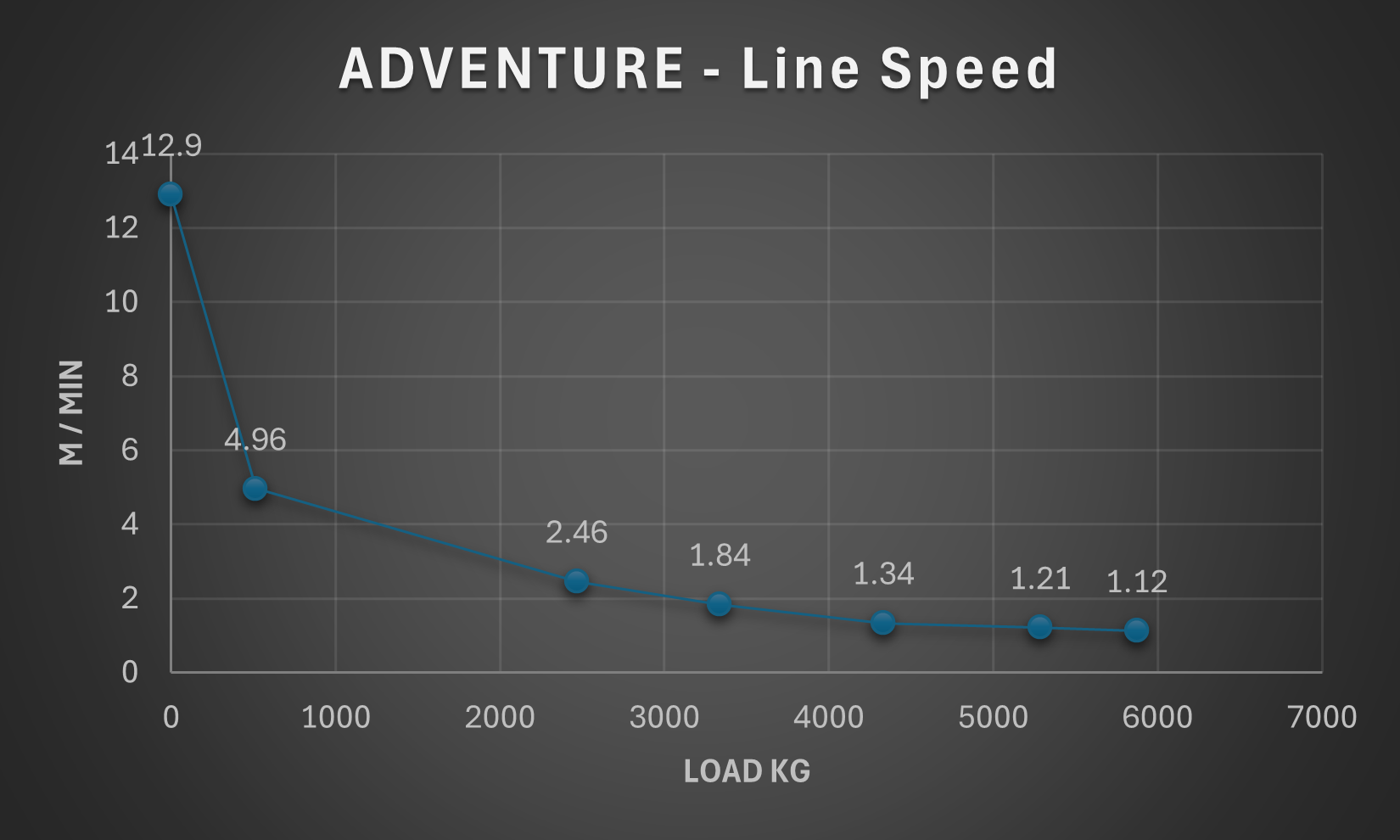

ADVENTURE
Pulling Capacity: 5,500kg (12,000 lbs)
No Load Line Speed: 12.9 m/min (42.3 ft/min)
Drum RPM – 28

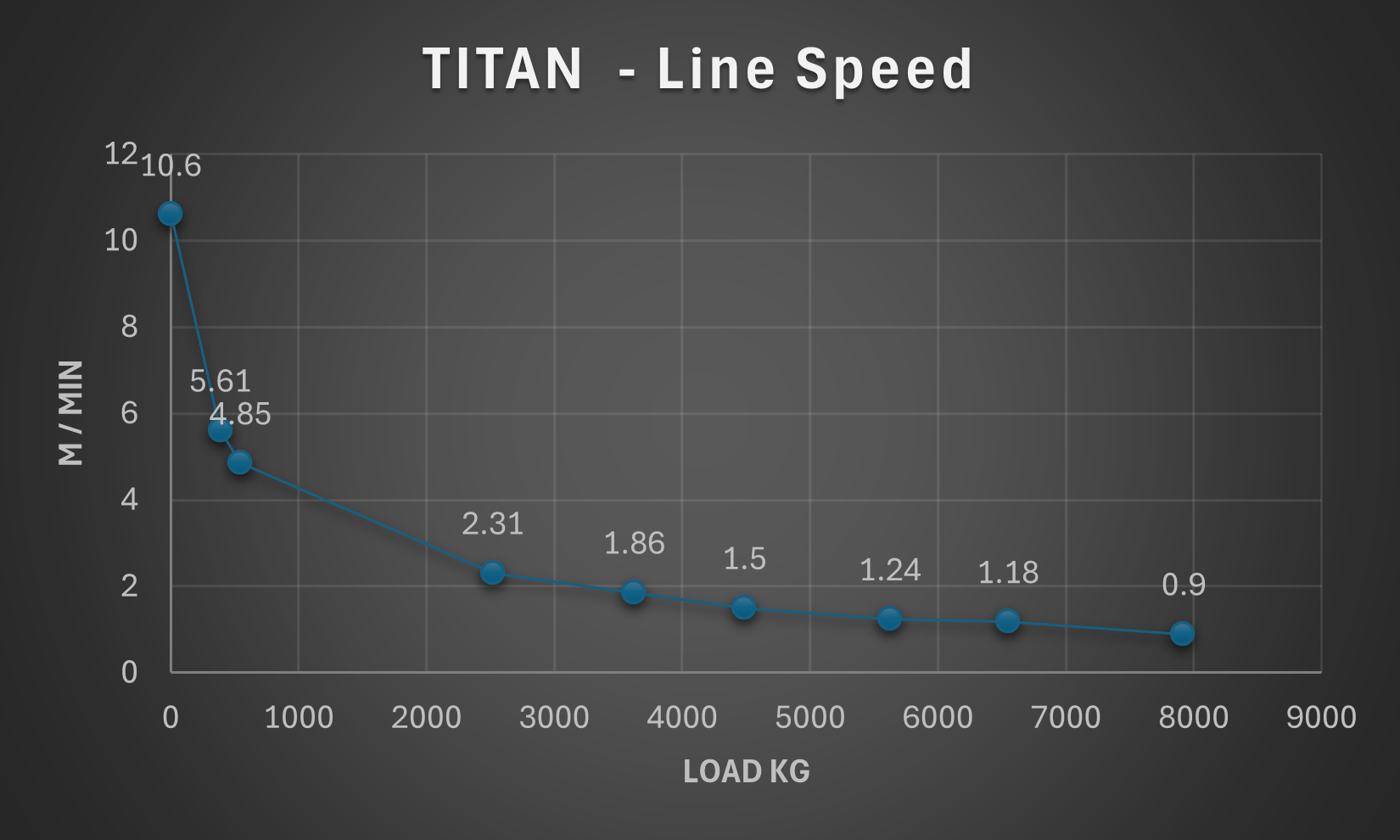

TITAN
Pulling Capacity: 7,500kg (16,500 lbs)
No Load Line Speed: 10.6 m/min (34.8 ft/min)
Drum RPM – 17
The pulling power of the winch depends heavily on your vehicle’s electrical setup. We recommend the following for optimal performance:
A 12V alternator with at least 180A output to charge the winch batteries.
Two 75Ah batteries to provide the necessary 12V DC supply.
High-quality 50mm² electrical cable.
Ensure clean electrical joints, and in areas prone to water exposure, apply conductive grease to protect connections.
The NOMAD2 is supplied with synthetic rope as standard. Depending on the drum size and gearing selected, the rope diameter and length vary.
Standard Drum Synthetic Rope Capacity
- Overland and Adventure gearing – 30m of 11mm RED Winches synthetic rope
- Titan gearing 25m of 12mm RED Winches synthetic rope
XL Drum Synthetic Rope Capacity
- Overland and Adventure gearing – 45m of 11mm RED Winches synthetic rope
- Titan gearing 35m of 12mm RED Winches synthetic rope
Attaching the rope to the drum is made simple with the included Plasma Lock. This secure locking mechanism ensures the synthetic rope stays firmly attached to the drum, minimising the chance of slipping or accidental detachment.
Nomad2 Standard Drum:
- Weight: 34.3kg
- Dimensions: 605 wide x 258 tall x 175 deep excluding the fairlead
Nomad2 XL Drum:
- Weight: 37.4kg
- Dimensions: 681 wide x 258 tall x 175 deep excluding the fairlead

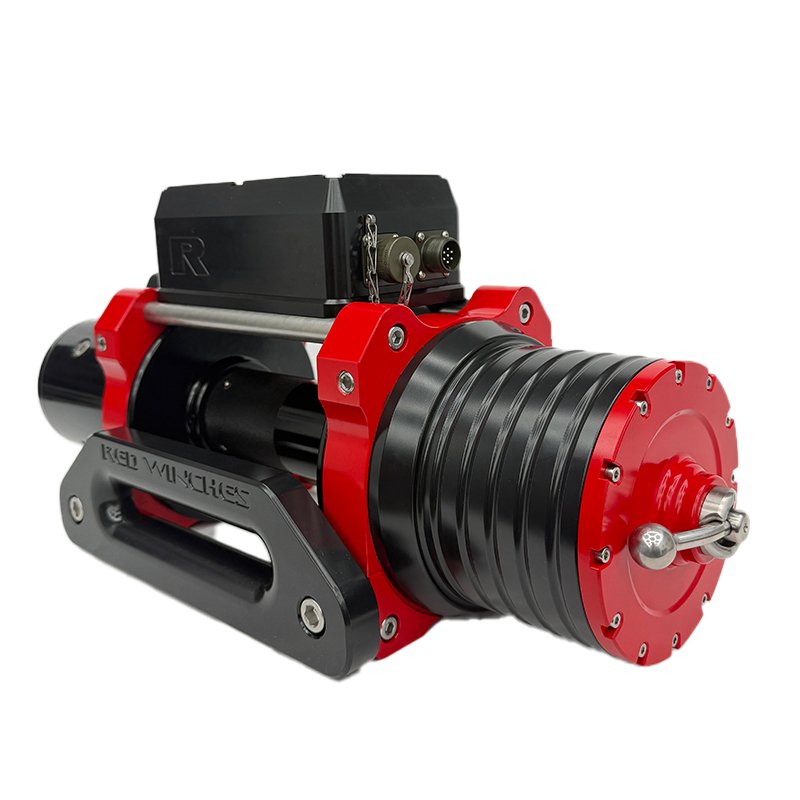

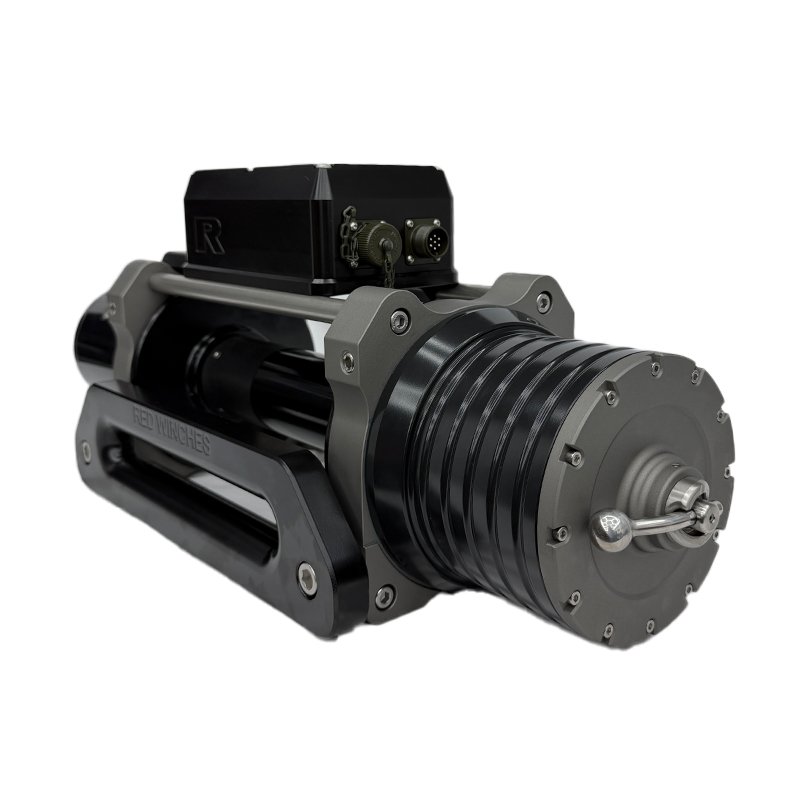

Nomad2
The NOMAD2 Winch represents the pinnacle of low-line mechanical-electric recovery technology. Engineered in the UK to exceed the rigorous demands of both professional recovery and tactical military operations, the NOMAD2 offers class-leading power density and line speeds with full drum disconnect freespool and Cerakote finish.
Price range: £2,150.00 through £2,762.50 ex. VAT
