Full Drum Disconnect Freespool: Features an advanced drum disconnect system for effortless manual spooling (see the Drum tab for full details).
-
Class-Leading Performance: Delivers top-tier line speeds paired with the lowest current draw under load in its class (see Performance Data tab for detailed metrics).
-
Advanced Control Electronics: Winch-mounted CNC-machined control box featuring an Albright heavy-duty solenoid, low-resistance copper busbar system, and integrated RED Winches wireless remote.
-
Versatile Controller Options: Includes an integrated 4-pin, military-spec socket for optional wired hand-controller operation.
-
Flexible Mounting: The control box can be remote-mounted away from the winch to suit bespoke vehicle packaging.
-
Billet Aluminium Housings: Precision CNC-machined from solid aircraft-grade billet aluminium for maximum structural integrity and weight saving.
-
Cerakote Ceramic Finish: Coated in ultra-durable Cerakote thin-film ceramic for superior abrasion and corrosion resistance.
-
Billet Hawse Fairlead: Supplied with a matching precision CNC-machined billet aluminium hawse fairlead.
-
Synthetic Rope & Hook: Pre-fitted with RED Winches synthetic rope and heavy-duty hook (see Rope & Hook tab for specifications).
-
Ultra-Durable Gearbox: Case-hardened chromium-molybdenum steel gears (rated up to 1,230 N/mm²) engineered for extreme torque and longevity.
-
Field-Serviceable Lubrication: Utilises semi-liquid grease rather than oil, enabling hassle-free maintenance at home or in the field.
- TIGER WinchWireless hand controller with lanyardRope with hook – please see Rope & Hook tab for rope detailsWireless winch control systemPlasma Lock
12.9 grade Mounting bolts and washers x 4
Manual isolator switch
Power cables:
2M x 50mm2 Negative cable with lugs
0.4M x 50mm2 and 1.6M x 50mm2 Positive cables with lugs

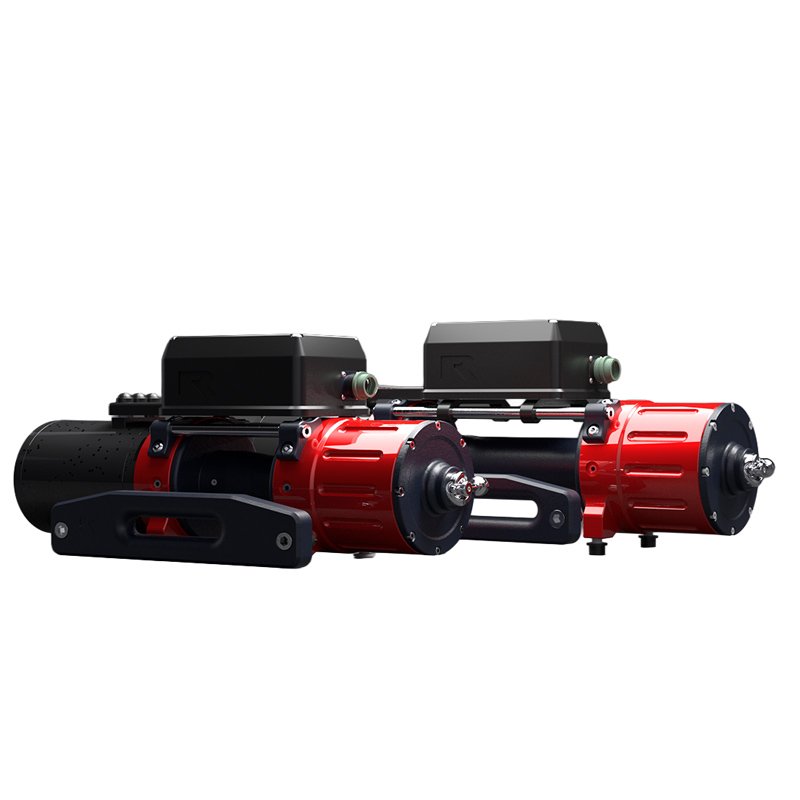

TIGER Short and Standard drums.
A choice of short and standard drum sizes for extra rope capacity, depending on your needs.
The TIGER is fitted with the RED Winches full drum disconnect freespool.
What is a full drum disconnect freespool? If you have ever had to pull rope from a lowline winch, you will have felt the resistance. This is because when you put a traditional lowline winch into freespool and pull the rope from the drum, you are not only rotating the drum, you are also rotating the gearbox assembly. This can make pulling the rope a difficult task. To the point where some users will just power the rope out with the motor rather than using the freespool function. Not only is this slower, but it is also consuming power from the vehicle’s batteries just before you start using the winch, and this is the exact time you want the batteries at maximum charge!
When the user puts the TIGER into freespool, the drum is disconnected from the gearbox. The drum is supported in roller bearings, and the only resistance the user feels as they pull the rope from the drum is the very slightest resistance from the roller bearings. The result? No more two-handed pulls with one foot on the bumper. Just grab the rope and go!
TIGER Winch – Available with 2 Gearing Options – Please see gallery images for related performance charts.
The TIGER Winch offers two gearing options, each designed to suit different recovery needs, providing varying pulling capacities and line speeds:
UTV
Pulling Capacity: 2,836 kg (6,250 lbs)
No Load Line Speed: 23.7 m/min (77.8 ft/min)
Drum RPM – 88
U4
Pulling Capacity: 4,308 kg (9,500 lbs)
No Load Line Speed: 17.5 m/min (57.3 ft/min)
Drum RPM – 64
The pulling power of the winch depends heavily on your vehicle’s electrical setup. We recommend the following for optimal performance:
A 12V alternator with at least 180A output to charge the winch batteries.
Two 75Ah batteries to provide the necessary 12V DC supply.
High-quality 50mm² electrical cable.
Ensure clean electrical joints, and in areas prone to water exposure, apply conductive grease to protect connections.
The TIGER Winch is supplied as standard with 8mm rope, MBS 6,150 kg (13,558 lbs)
Short Drum: 15m (50′) of 8mm (5/16″)
Standard Drum: 30m (98.4′) of 8mm (5/16″)
Short Drum
- Weight: 23.5kg
- Dimensions (LxDxH): 494 x 135 x 217.5mm
Standard Drum
- Weight: 25kg
- Dimensions (LxDxH): 596 x 135 x 217.5mm

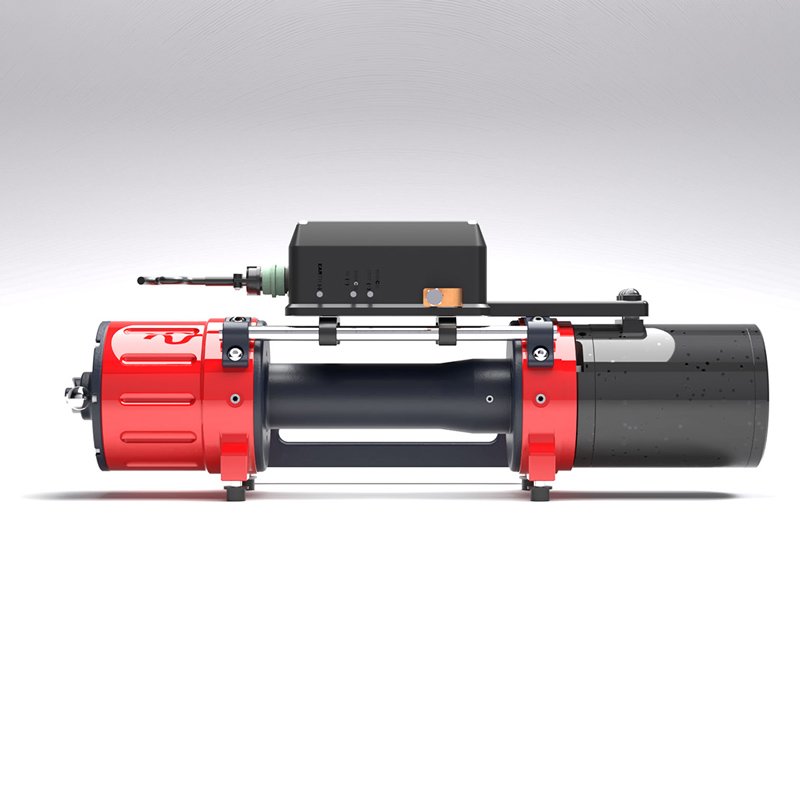

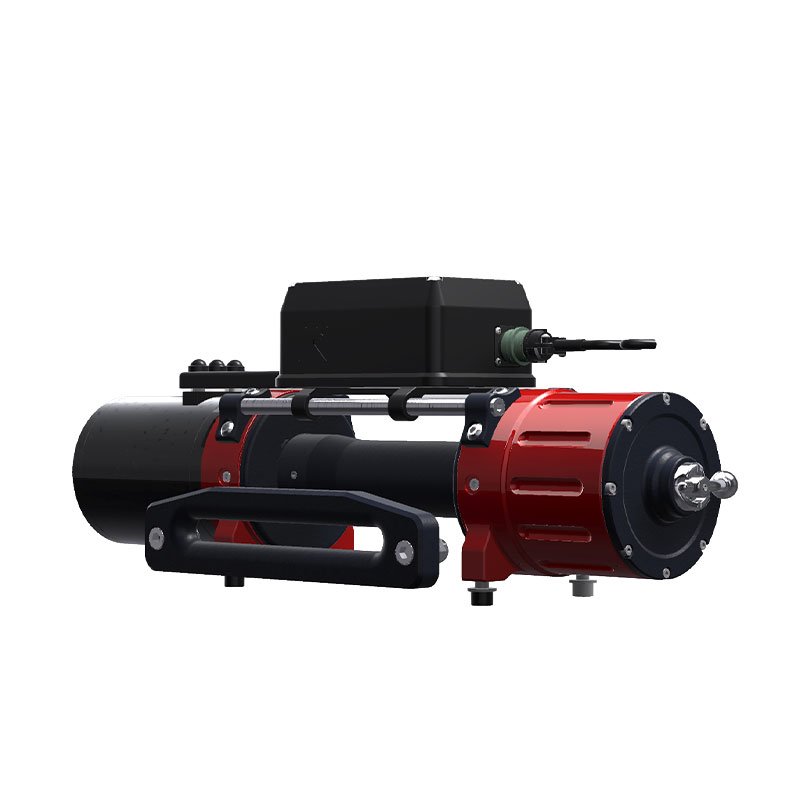

TIGER
The TIGER from RED Winches Ltd is a game-changer in the low-line electric winch market. Engineered for those who refuse to compromise, its revolutionary design features a full drum disconnect freespool, typically only found on high-end competition winches.
Compact, lightweight, and boasting class-leading pulling capacity and line speeds, the Tiger is the premier choice for everything from Side-by-Side (SXS) ATVs and Ultra4 race cars to Rock Buggies and medium-sized SUVs.
Price range: £1,750.00 through £2,037.50 ex. VAT
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Your Title Goes Here
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
