High-Performance Upgrade: Instantly transforms your single motor setup into a highly capable winch system.
-
Billet Machined Strength: Built from solid billet machined aluminium for exceptional durability in extreme conditions.
-

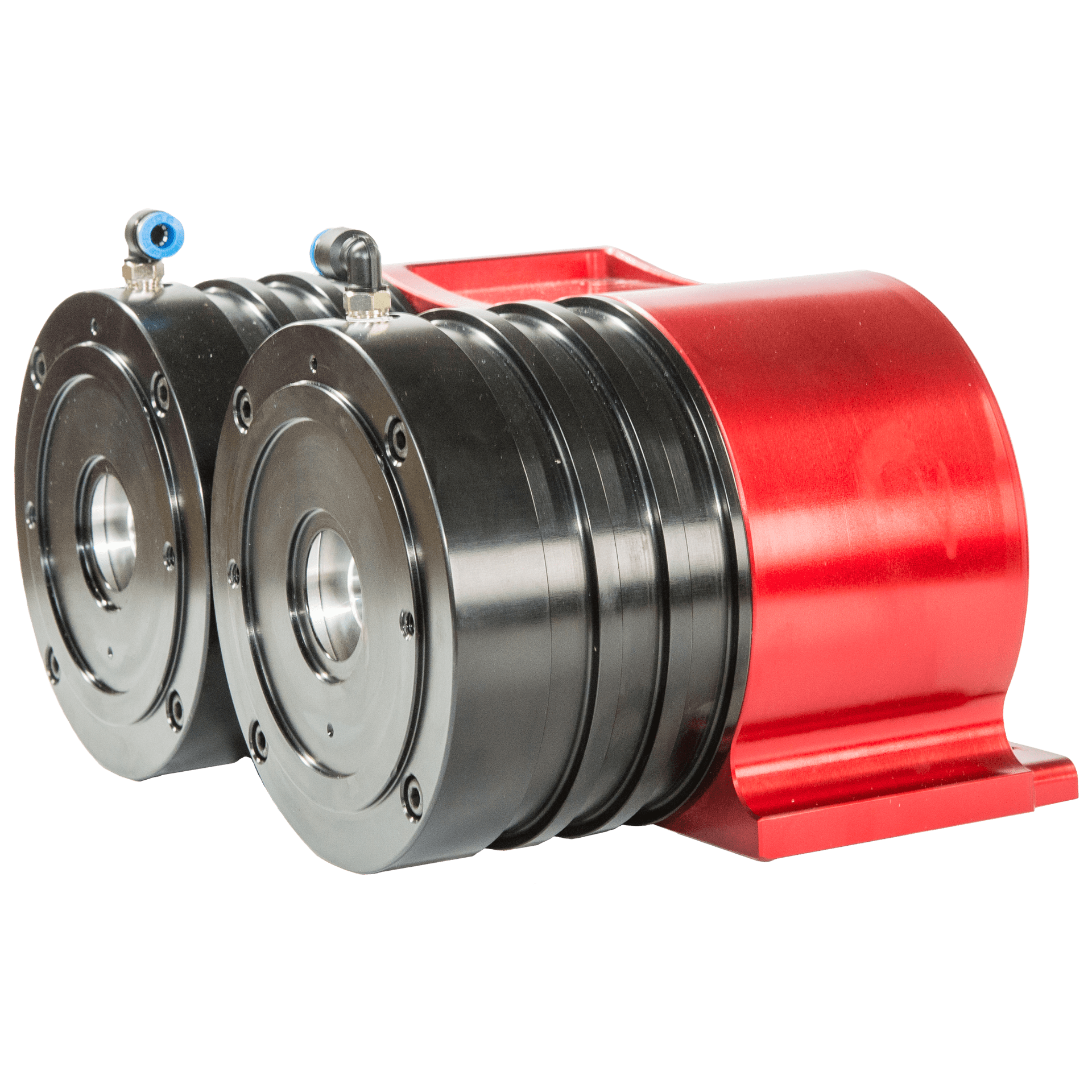

Air Brake Ready: Specifically designed to seamlessly accept RED Winch Air Brake Units (ABU) for instant stopping power.
-
Flexible Brake Setup: Operates perfectly with or without the traditional Warn brake system on your bottom housing.
-
Upgraded Speeds: * Standard Gearset: Runs 36% quicker than a standard Warn 8274 (Final ratio: 98.7 to 1).
-

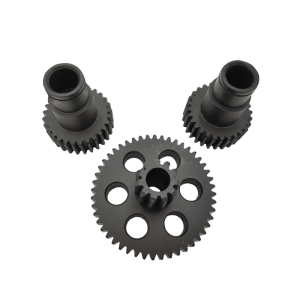

Overdrive Gearset (Optional): Runs 53% quicker than a standard Warn 8274 (Final ratio: 62.6 to 1).
-
-
1x STORM Top Housing (Anodised RED)
-

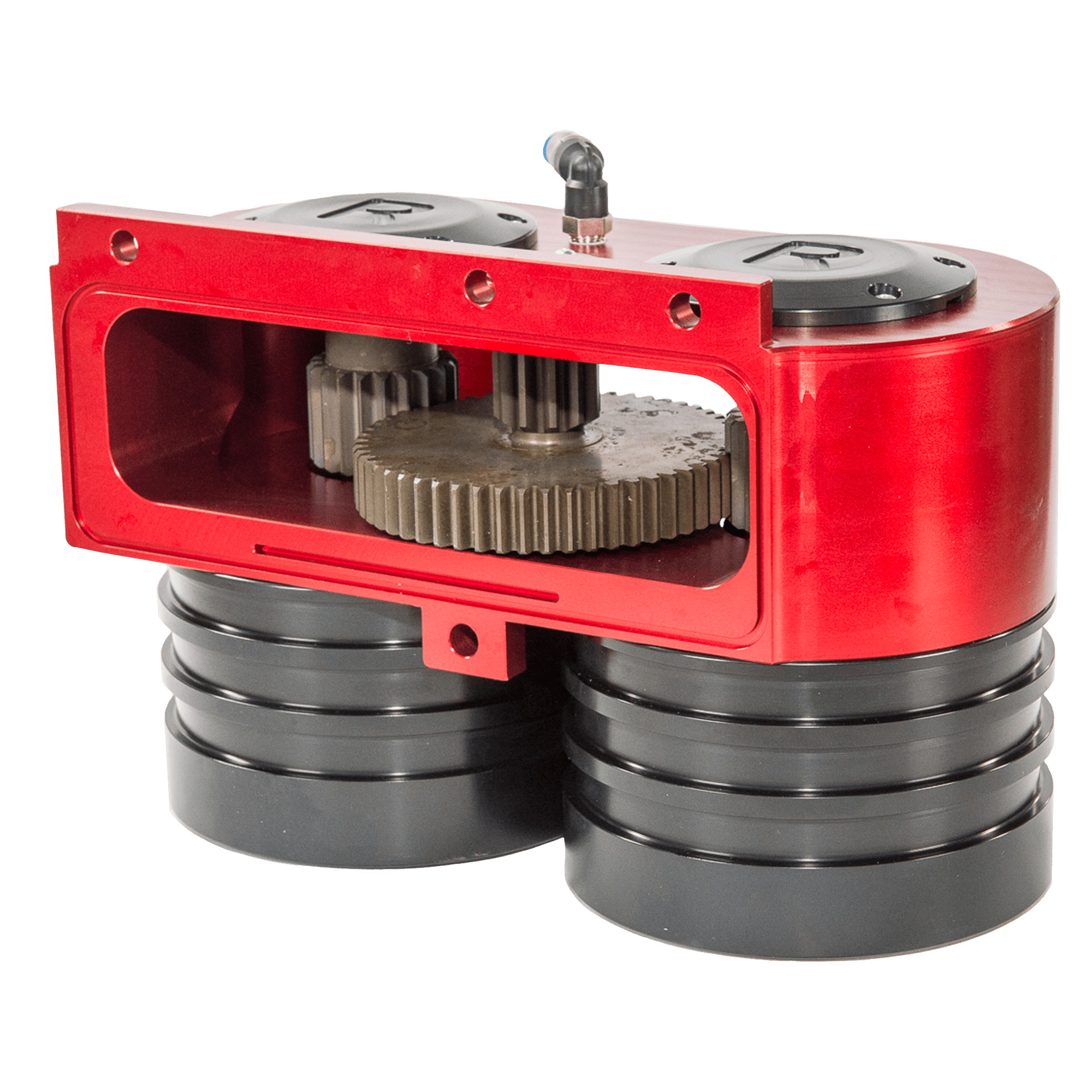

Pre-installed upgraded gearset (Standard or Overdrive, depending on your configuration)
-
Pre-installed premium sealed bearings
Important Note: Winch motors and RED Winch Air Brake Units (ABU) are not included with the top housing. Air brakes can be ordered separately or as part of a package bundle across our website. Motors fit directly into the back of the ABU when installed.
Compatibility
Motors Supported: The STORM top housing operates flawlessly with the following motors:
-
OX
-
Lynx
-
BOW1 / BOW2 / BOW3
-
WARN XP
Bottom Housings Supported:
-
Warn 8274 Bottom Housing
-
GP80 Freespool Lower Housing
Technical Specifications
STORM TOP HOUSING without air brakes or motors 4KG
Dimensions 254mm x 92mm x 125mm
Shipping Weight 4.6KG
Shipping Dimensions 290mm x 270mm x 150mm

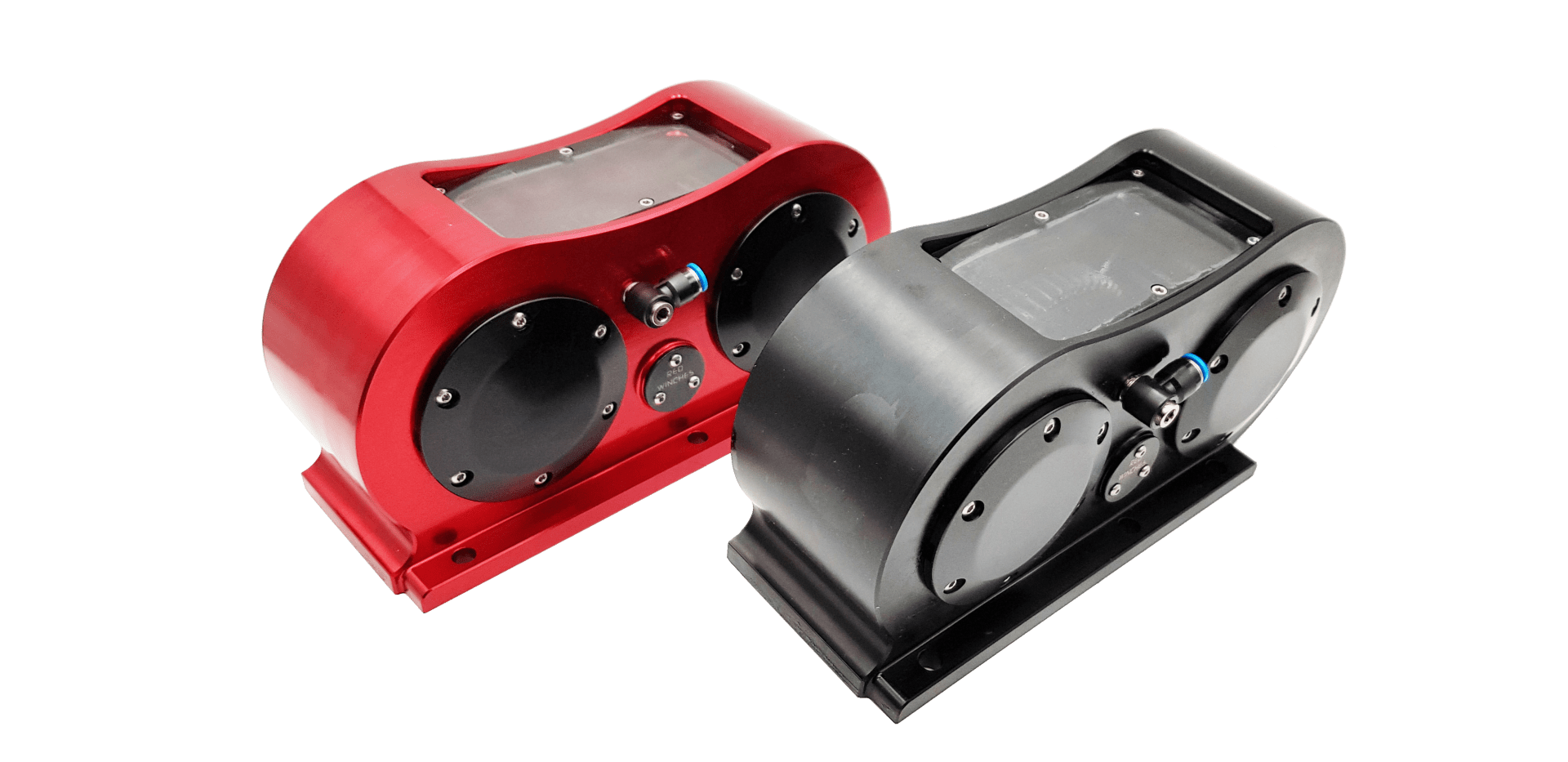

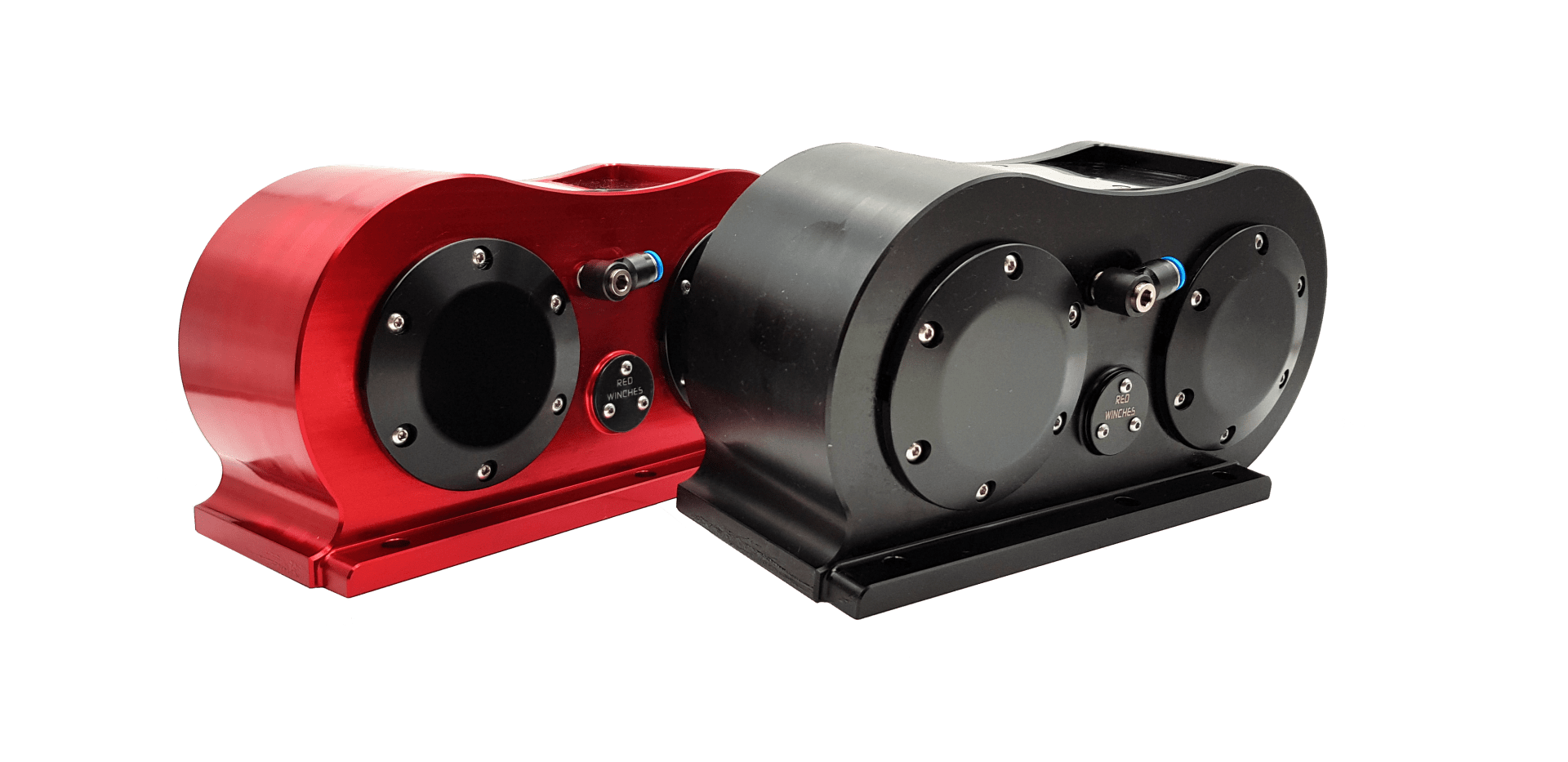

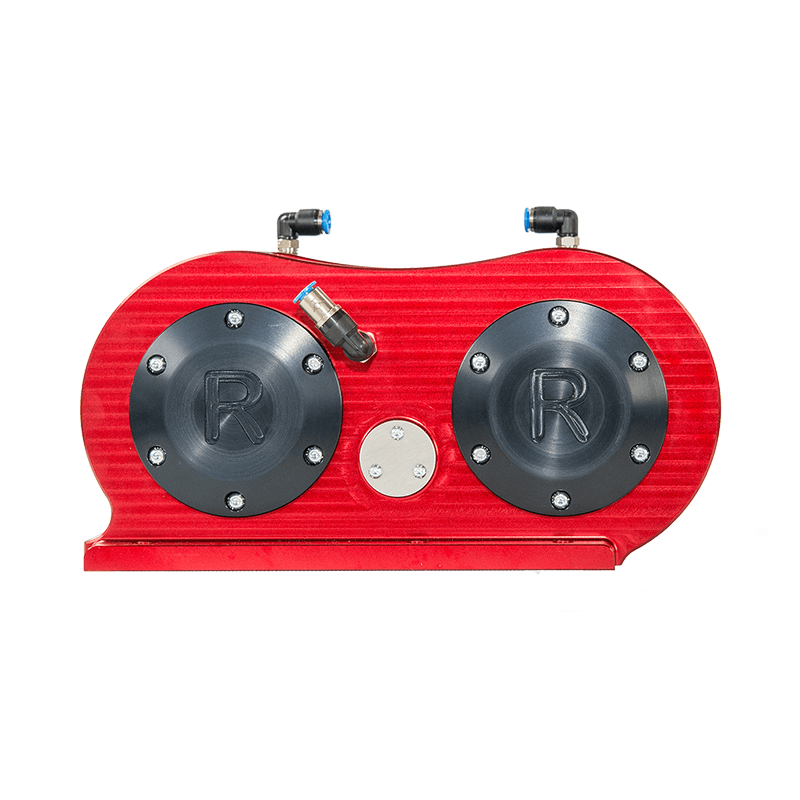

Storm Top Housing
The innovative STORM Top Housing from RED Winches offers a simple yet powerful upgrade for serious winch users. Designed to convert your standard single motor 8274 winch into a much faster and more powerful system, the STORM housing is built from solid billet for ultimate strength and durability.
Driven by customer demand, the STORM’s unique design also allows integration with the RED Winches air brake system. This enables your 8274 to stop instantly, matching the performance of our premium electric winch range, such as the Hornet2. You can purchase the STORM housing today and easily upgrade to the air brake system later.
Price range: £695.00 through £1,400.00 ex. VAT
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
