IP68 Submersible Sealing: Complete weather protection keeps internal pin connections dry, clean, and corrosion-free in extreme wading conditions.
-
Threaded Locking Collar: Secure twist-lock mechanism ensures your remote cord stays locked in place even when pulled at extreme angles.
-
Gold-Plated 4-Pin Contacts: Delivers crisp, low-resistance signal transfer for 12V and 24V winch solenoid control circuits.
-
Integrated Rubber Protective Cap: Weatherproof tethered cap seals the socket face from dirt, pressure washers, and mud when the remote is detached.
-
Flush Panel Mounting: Features a threaded bulkhead collar with a backing nut for easy mounting through dashboards, bumpers, or winch top plates.
-
1x 4-Pin Waterproof Female Bulkhead Socket
-
1x 4-Pin Male Remote Cable Plug
-
1x Tethered Rubber Weatherproof Dust Cap
-
1x Panel Mounting Nut & Washer Pack
| Feature | Detail |
| Pin Configuration | 4-Pin Signal Connector |
| Ingress Protection | IP68 (Submersible and dust-tight) |
| Current Rating | Up to 13A per pin |
| Voltage Compatibility | 12V DC / 24V DC / 250V AC |
| Contact Material | Gold-plated brass pins |
| Housing Material | High-impact, UV-stabilised nylon composite |
| Mounting Hole Size | approx. 20mm Panel Cutout |
| Primary Application | Wired remote handset socket for dashboard, bumper, or bulkhead mounting |
| Parameter | Value |
| Net Product Weight | approx. 0.06 kg |
| Overall Socket Length | approx. 42mm |
| Socket Flange Diameter | approx. 28mm |
| Shipping Weight | approx. 0.09 kg |
| Packed Bag Dimensions | approx. 10cm x 8cm x 3cm |

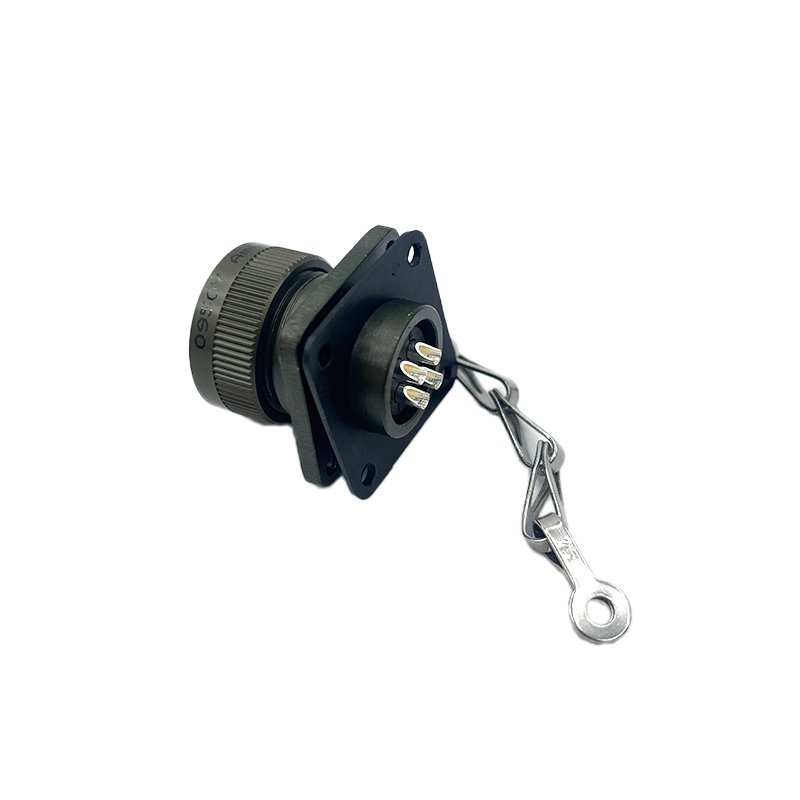

Bulkhead Connector
Weatherproof Signal Interface for Wired Remote Controllers
The RED Winches Waterproof Bulkhead Connector provides a neat, reliable entry point for connecting wired winch remote handsets directly through your vehicle’s bodywork, dashboard, or front grille. Eliminating the need to run loose wires through open windows or door seals, this 4-pin chassis plug and socket assembly provides a permanent, professional remote control connection point.
Precision-engineered with gold-plated pins for maximum conductivity, the connector features an IP68 waterproof rating and a screw-on retaining collar to prevent accidental disconnections during high-stress recovery manoeuvres. When not in use, an integrated rubber dust cap seals the socket face completely against water, mud, pressure washing, and off-road grime.
£45.00 ex. VAT
If you are looking at adding a wired hand controller to your vehicle this kit makes it easy!
Millspec 4 way bulkhead connector pre-wired with 1m wires and supplied with dust cap.
For wiring details please see the listing for the hand controller you intend to use.
