Voltage Spike Suppression: Built-in high-capacity diode absorbs reverse voltage spikes from collapsing solenoid magnetic fields.
-
Protects Sensitive Electronics: Prevents back-EMF feedback from damaging in-cab switches, ECU components, and wireless control units.
-
Genuine Hornet 1 Fitment: Purpose-built wiring length and termination for direct integration into Hornet 1 solenoid setups.
-
Pre-Terminated Terminals: Fitted with high-spec insulated spade connectors for fast, secure, plug-and-play installation.
-
Heavy-Duty Weather Sealing: Sealed inline diode module and protective heat-shrink tubing shield against moisture, mud, and vibration.
1x Complete RED Winches Diode Link Wire Assembly (Hornet 1)
| Feature | Detail |
| Price | £11.20 ex. VAT |
| Compatible Winch | RED Winches Hornet 1 (Twin Motor Competition Winch) |
| Compatible Solenoids | Genuine Albright DC182 / DC88 Series Reversing Contactors |
| Component Type | Inline Flyback / Suppression Diode Assembly |
| Terminal Type | Pre-crimped fully insulated female spade terminals |
| System Voltage | Compatible with 12V DC and 24V DC solenoid control circuits |
| Primary Application | Suppresses back-EMF voltage spikes across Albright solenoid coils |
| Parameter | Value |
| Net Product Weight | approx. 0.04 kg |
| Overall Assembly Length | approx. 150 mm |
| Shipping Weight | approx. 0.07 kg |
| Packed Bag Dimensions | approx. 10cm x 8cm x 2cm |

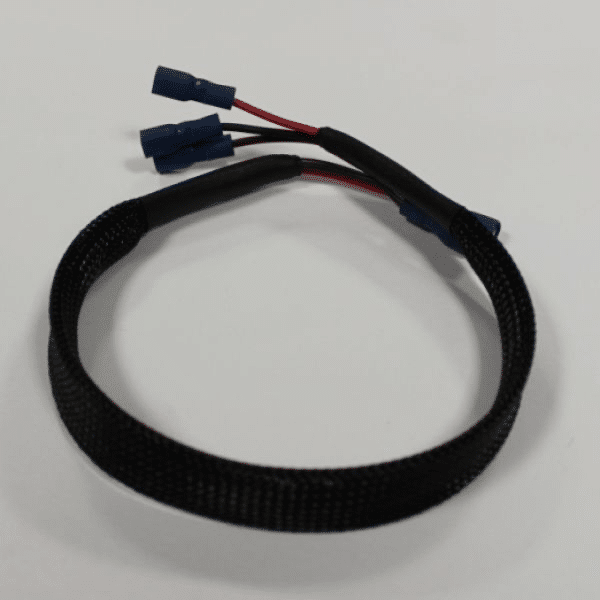

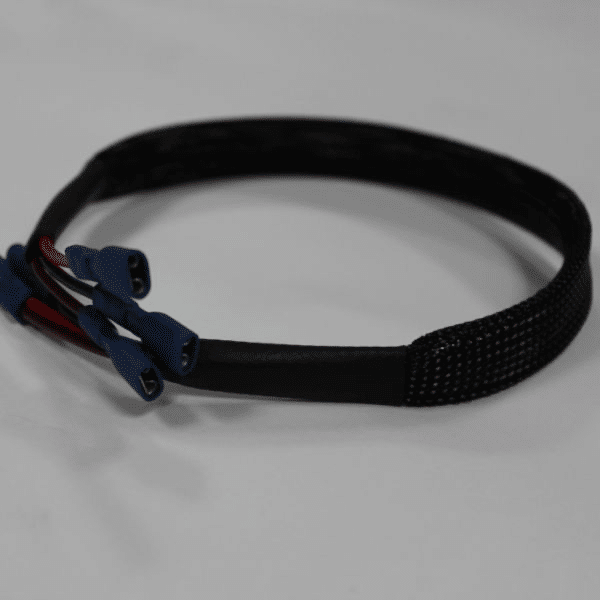

Diode Link Wire Assy (Hornet1)
Back-EMF Voltage Spike Protection for Solenoid Circuits
The RED Winches Diode Link Wire Assembly is a vital electrical safety component engineered specifically for the solenoid control circuit on the Hornet 1 twin-motor winch. Designed to suppress dangerous reverse voltage spikes (back-EMF) generated when heavy solenoid coils disengage, this integrated diode assembly protects your vehicle’s sensitive electronics, in-cab switches, and wireless remote receivers from electrical damage.
Manufactured in the UK with high-grade automotive wiring, a heavy-duty inline suppression diode, and pre-crimped insulated spade connectors, this assembly fits seamlessly into the control circuit of genuine Albright contactors. It ensures smooth, reliable coil switching and prevents back-feed current that can cause erratic switch operation or premature contact burnout during high-frequency winching manoeuvres.
£15.00 ex. VAT
This wire is used on the RED winch Hornet 1 Only
It links the Albright signals (winch in / winch out) to the brake air solenoid.
