Purpose-Built for Hornet 2 Winches: Dimensioned and pre-routed specifically for connecting dual OX Motors to central Albright reversing contactors.
-
Ultra-Heavy-Duty 70mm² Copper Cable: Finely stranded copper cores eliminate power-robbing voltage drops during high-amp twin-motor pulls.
-
Heavy-Wall Hydraulic Crimped Lugs: Pre-fitted with electro-tinned copper lugs for maximum contact area and zero terminal resistance.
-
Extreme-Duty Sleeve Protection: Enclosed in oil, chemical, and heat-resistant protective automotive conduit to prevent chafing and short circuits.
-
Simplified Plug-and-Play Assembly: Pre-measured cable lengths drastically cut installation time and guarantee a tidy, professional motor bay setup.
-
1x RED Winches Hornet 2 Twin Motor Main Power Cable Harness
-
Pre-Terminated Motor & Solenoid Connection Lugs
| Feature | Detail |
| Compatible Winch | RED Winches Hornet 2 (Twin Motor Competition Winch) |
| Compatible Motors | Dual RED Winches OX Competition Motors (12V & 24V) |
| Cable Core Size | 70mm² High-Flex Oxygen-Free Copper |
| Terminal Lugs | Heavy-wall electro-tinned copper (M8 / M10 fitments) |
| Insulation & Protection | High-flex UV/chemical PVC sheath enclosed in high-temp protective conduit |
| System Voltage | Compatible with 12V DC and 24V DC high-amperage systems |
| Primary Application | Complete battery-to-solenoid and solenoid-to-motor power wiring harness for Hornet 2 |
| Parameter | Value |
| Net Loom Weight | approx. 2.40 kg |
| Overall Loom Reach | Dimensioned for standard Hornet 2 motor offset and solenoid placement |
| Shipping Weight | approx. 2.65 kg |
| Packed Box Dimensions | approx. 35cm x 25cm x 10cm |
Hornet2 Twin motor wiring loom
Complete High-Amperage Power Wiring Solution for Twin OX Motors
The RED Winches Hornet 2 Twin Motor Wiring Loom is the ultimate power-delivery harness, engineered specifically for the extreme electrical demands of the Hornet 2 competition winch. When feeding dual 7HP OX Competition Motors under full stalling load, standard cables flex, overheat, and restrict current throughput. This pre-assembled power loom eliminates voltage drop across your battery bank, Albright contactors, and motor terminals to deliver maximum line speed and pulling force.
Manufactured in the UK using ultra-flexible, finely stranded 70mm² copper power cable, this harness is pre-terminated with heavy-wall, electro-tinned copper lugs for flawless electrical conductivity. Wrapped in heat and chemical-resistant protective conduit, the loom is routed and dimensioned to fit the Hornet 2 chassis cleanly—removing guesswork, reducing engine bay clutter, and ensuring bulletproof reliability in harsh competition environments.
£50.00 ex. VAT

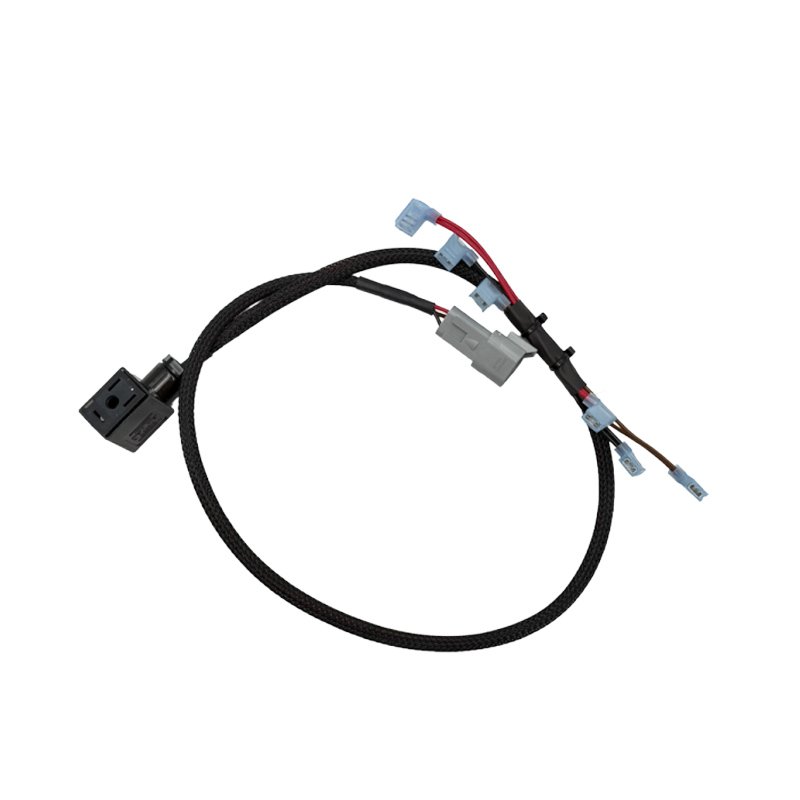

Twin motor wiring loom
This wiring loom fits the Hornet2 and can also be used on other twin motor set up’s that also need air brake control such as the STORM top housing fitted with RED Winches air brakes.
It links the Albright signals (winch in / winch out) to the brake air solenoid.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
