Genuine RED Winches Component: Purpose-built sub-assembly (Part No. H2-WA-01) for precise fitment on all Hornet 2 twin-motor models.
-
Integrated Air-Brake Control: Automatically triggers the 12V/24V air brake solenoid valve simultaneously when energising the Albright motor contactors.
-
Pre-Terminated Plug-and-Play Wiring: Features high-quality sealed connectors and spade terminals for quick, reliable connection to solenoids and handsets.
-
Harsh Environment Protection: Enclosed in oil, abrasion, and heat-resistant protective conduit to withstand intense off-road vibration and engine bay heat.
-
Dual Voltage Compatibility: Available in 12V DC and 24V DC signal configurations to match your vehicle’s control system.
-
1x Genuine RED Winches Control Wiring Loom Assembly (H2-WA-01)
-
1x Pre-Wired Air Brake Solenoid Signal Interface
-
1x Complete Terminal & Connector Pack
| Feature | Detail |
| Part Number / SKU | H2-WA-01 |
| Price Range | £110.00 – £115.00 ex. VAT |
| Voltage Options | 12V DC or 24V DC Signal Voltage |

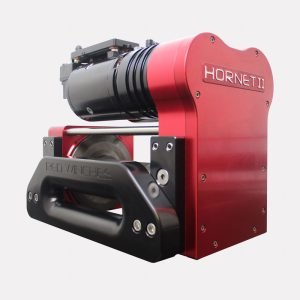

| Compatible Winches | RED Winches Hornet 2 (Twin Motor Competition Winch) |
| Compatible Motors | Dual RED Winches OX Competition Motors |
| Cable Protection | Flexible high-temp protective automotive conduit |
| Primary Application | Main control loom bridging Albright contactors, air brake solenoid, and remote/dash control inputs |
| Parameter | Value |
| Net Product Weight | approx. 0.45 kg |
| Loom Harness Length | approx. 650mm |
| Shipping Weight | approx. 0.60 kg |
| Packed Box Dimensions | approx. 20cm x 15cm x 8cm |

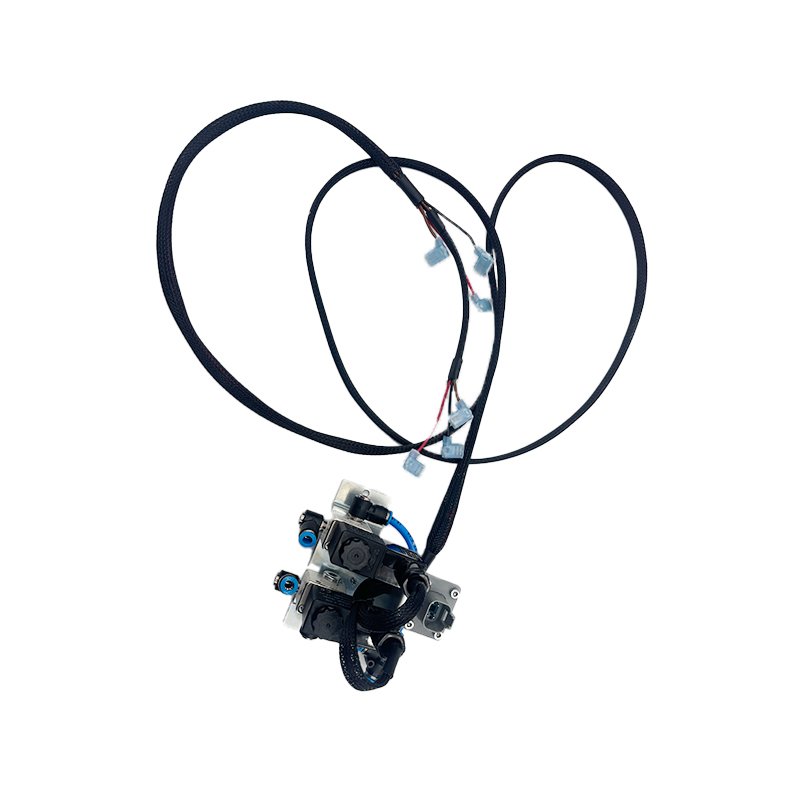

Hornet2 Winch Control Assembly
Price range: £110.00 through £115.00 ex. VAT
Air solenoid assembly for controlling a single motor air-braked and air freespool winch.
With a winch that has air brakes and air freespool it needs two air solenoids to control the functions. Historically the solenoid for the brake was mounted on the winch and the owner had to find a location for the air freespool solenoid.
To simplify installation and wiring, the HORNET2 is now suppled with this solenoid assembly but it can be retro fitted to any HORNET or HORNET2
One constant air supply into the unit. Two outputs to the air brake and the air freespool with 6mm push fittings.
Incorporating the motor control loom with six flag terminals for connecting to the Albright motor control solenoids.
Fitted with four pin socket to accept CBL-01 Winch control cable assembly.
When positioning this assembly the air line between the solenoid assembly and the air brake should be no longer then 500mm / 20″
Availabie in 12v and 24v, please select the voltage required from the drop down menu.
