Dedicated Single-Motor Fitment: Dimensioned for clean routing between battery cut-offs, Albright reversing contactors, and single OX Winch Motors.
-
High-Flow 50mm² Copper Cable: Multi-strand flexible copper core minimises voltage drop under extreme winch loads.
-
Heavy-Wall Hydraulic Crimped Lugs: Precision-crimped electro-tinned copper lugs prevent corrosion and eliminate terminal resistance.
-
Rugged Conduit Protection: Wrapped in oil, fuel, and heat-resistant sleeving to shield wiring against chafing and engine bay heat.
-
Simplified Installation: Pre-measured lengths reduce setup time and ensure a neat, professional wiring finish.
-
1x RED Winches Single Motor Main Power Cable Harness
-
Pre-Terminated Heavy-Duty Connection Lugs
| Feature | Detail |
| Compatible Winches | RED Winches Cobra, King Cobra, and Atom Series |
| Compatible Motor | Single RED Winches OX Competition Motor (12V & 24V) |
| Cable Core Size | 50mm² High-Flex Oxygen-Free Copper |
| Terminal Lugs | Heavy-wall electro-tinned copper (M8 / M10 fitments) |
| Insulation & Protection | High-flex UV/chemical PVC sheath enclosed in high-temp protective conduit |
| System Voltage | 12V DC and 24V DC high-amperage systems |
| Primary Application | Battery-to-solenoid and solenoid-to-motor power wiring loom for single-motor winches |
| Parameter | Value |
| Net Loom Weight | approx. 1.60 kg |
| Overall Loom Reach | Dimensioned for standard single-motor winch & solenoid mounting configurations |
| Shipping Weight | approx. 1.85 kg |
| Packed Box Dimensions | approx. 30cm x 20cm x 8cm |
Single Motor Wiring Loom (Cobra, King Cobra & Atom)
Complete High-Performance Power Harness for Single-Motor Winches
The RED Winches Single Motor Wiring Loom is the dedicated power delivery harness engineered specifically for single-motor competition winches, including the Cobra, King Cobra, and Atom series. Designed to handle intense continuous current draw without resistance or heat buildup, this pre-assembled loom ensures your single OX motor receives maximum voltage to deliver peak line speed and pulling power.
Manufactured in the UK using ultra-flexible, finely stranded 50mm² copper power cable, the harness is pre-terminated with heavy-wall, electro-tinned copper lugs for optimal electrical transfer. Protected by a tough, heat and chemical-resistant automotive sleeve, the loom is pre-measured to connect your battery bank, Albright contactor, and motor terminals cleanly—eliminating installation hassle and under-bonnet cable clutter.
£37.50 ex. VAT

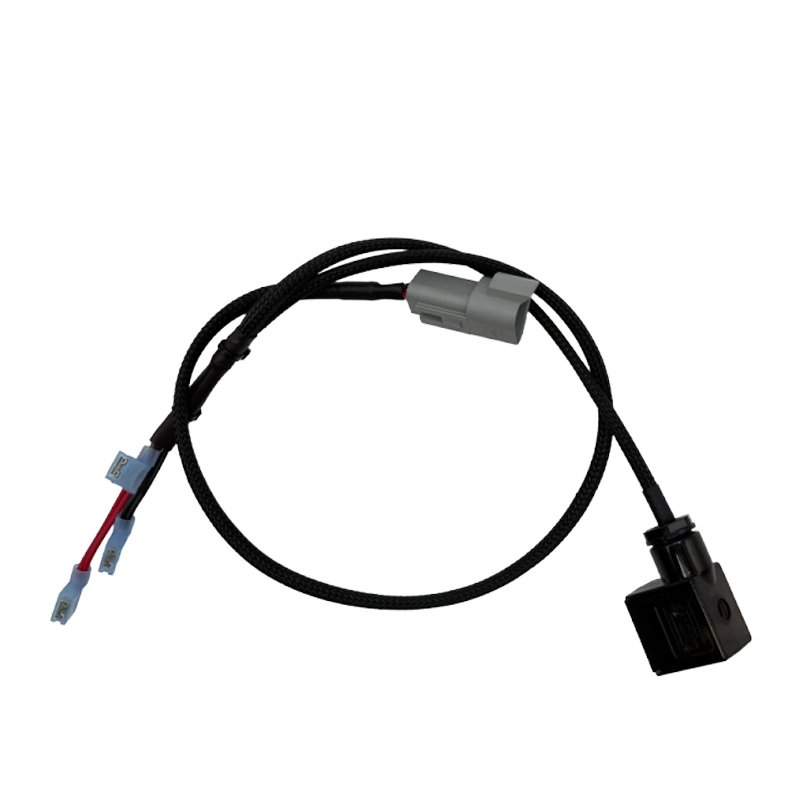

Single motor wiring loom
This wiring loom fits the Cobra1, Viper, Atom, and Cobra2
It links the Albright signals (winch in / winch out) to the brake air solenoid.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
