Genuine RED Winches Harness: Purpose-built replacement signal cable (SKU: CBL-01) for official RED Winches control sub-assemblies.
-
Generous 3m Length: Provides ample wire length to comfortably bridge dashboard switch panels, wireless receivers, and engine-bay control boxes.
-
Intuitive Colour-Coded Wiring: Pre-assigned colour coding ensures fast, error-free installation:
-
Brown: Winch Out Signal
-
Blue: Winch In Signal
-
Yellow: Air Freespool Signal
-
-
Heavy-Duty Signal Rating: Rated up to 10A across both 12V DC and 24V DC control systems.
-
Abrasion & Heat Resistant: Protected by a tough flexible sleeve designed to withstand under-bonnet heat, engine bay vibrations, and moisture.

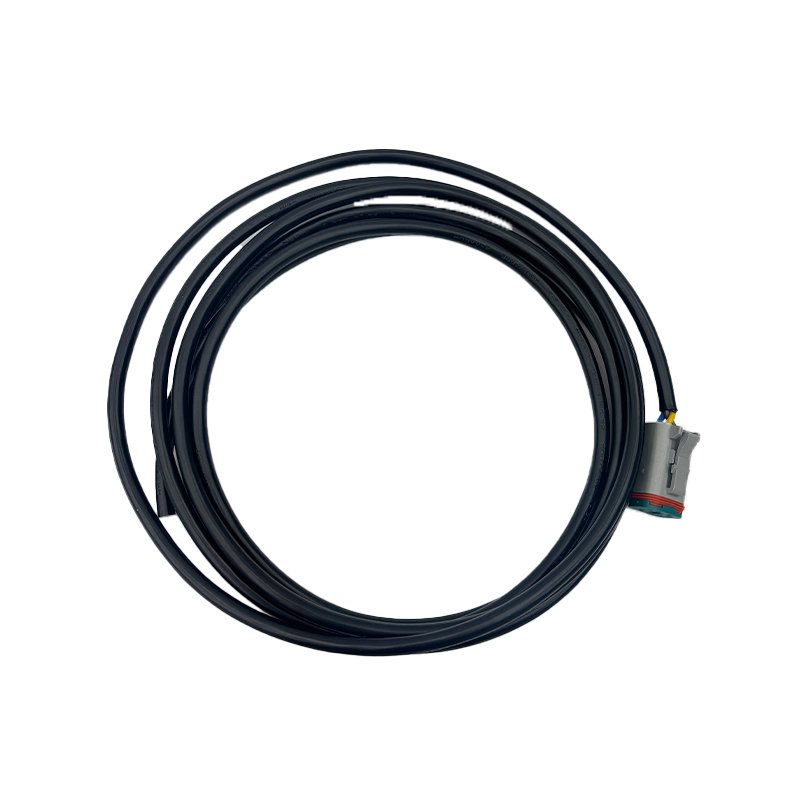

1x 3m RED Winches Control Cable Assembly (CBL-01)
| Feature | Detail |
| Part Number / SKU | CBL-01 |
| Price | £25.00 ex. VAT |
| Cable Length | 3.0 Metres (3m) |
| Operating Voltage | 12V DC / 24V DC |
| Maximum Current Rating | 10A Continuous |
| Conductor Wiring Scheme | Brown = Winch Out | Blue = Winch In | Yellow = Freespool |
| System Compatibility | RED Winches Hornet 2 Assembly (H2-WA-01) & King Cobra Assembly (KC-WA-01) |
| Primary Application | Replacement signal voltage loom connecting switches/controllers to winch solenoids |
| Parameter | Value |
| Net Product Weight | approx. 0.22 kg |
| Overall Cable Length | 3,000 mm (3.0m) |
| Shipping Weight | approx. 0.30 kg |
| Packed Bag Dimensions | approx. 18cm x 12cm x 4cm |
Winch Control Cable Assembly
Premium Signal Wiring Harness for Winch Control Systems
The RED Winches Winch Control Cable Assembly (SKU: CBL-01) is a genuine 3-metre replacement signal voltage loom engineered specifically for integration with RED Winches control assemblies. Designed to carry low-amperage control signals from your in-cab switches or remote pendant receiver to main solenoid packs and pneumatic valves, this high-grade harness delivers reliable, zero-interruption triggering under severe off-road conditions.
Featuring a heavy-duty outer sheath and clearly colour-coded internal conductors, the CBL-01 simplifies wiring and routine maintenance across multi-function winch setups. It provides direct plug-and-play signal connection for both the Hornet 2 Winch Control Assembly (H2-WA-01) and King Cobra Winch Control Assembly (KC-WA-01), ensuring crisp execution for winch-in, winch-out, and air-freespool commands.
£25.00 ex. VAT
Replacment signal voltage loom for use with,
HORNET2 winch control assembly – H2-WA-01
KING COBRA winch control assembly – KC-WA-01
Cable Length – 3m
VOLTAGE 12v /2 24v DC
MAX – 10A
BROWN = WINCH OUT
BLUE = WINCH IN
YELLOW = FREESPOOL
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
