Momentary (ON)-OFF-(ON) Operation: Spring-return rocker automatically cuts signal power when released for safe, controlled winching.
-
Standard Carling/ARB Dash Cutout: Drops directly into standard dashboard panels (44mm x 21mm) for a factory-fitted appearance.
-
Dual Red LED Illumination: Provides soft dashboard backlighting and bright direction activation lighting during low-light recoveries.
-

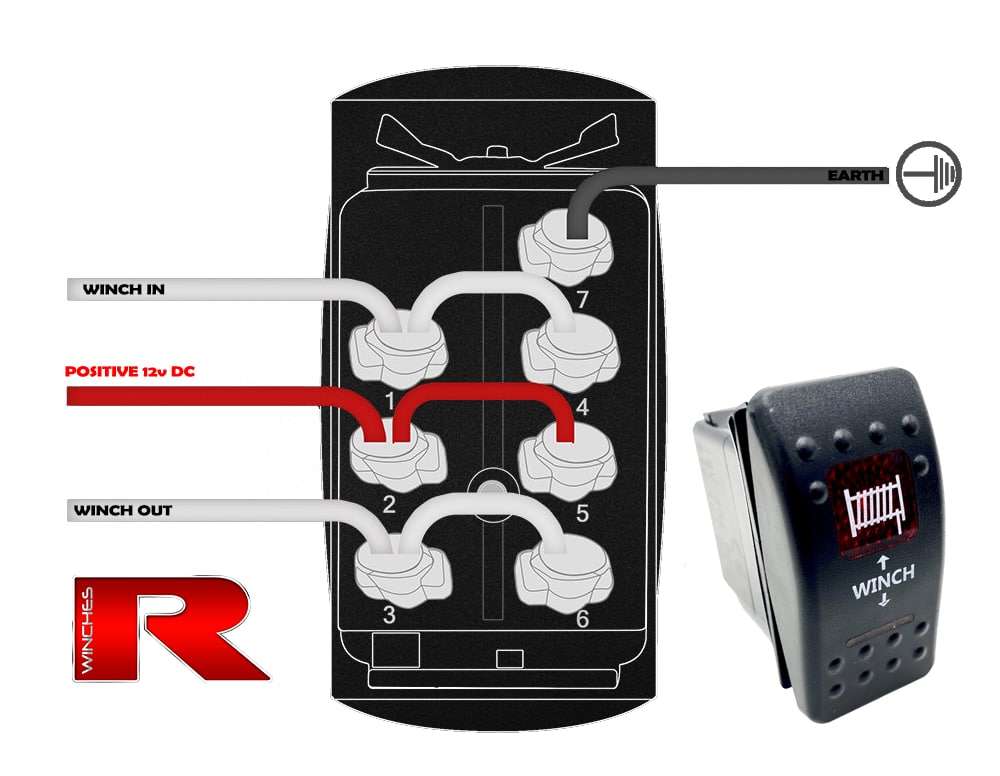

Dual-Pole 7-Pin Layout: Designed for clean wiring to twin-solenoid setups, Albright reversing contactors, or dual-motor relay packs.
-
Rugged Weather-Sealed Face: IP66-rated front face resists dust, mud, and water splashes in open cabs and harsh off-road environments.
1x 7-Pin Momentary Winch In / Winch Out Rocker Switch (Red LED)
| Feature | Detail |
| Switch Type | 7-Pin Double Pole Double Throw (DPDT) Momentary (ON)-OFF-(ON) |
| Operating Voltage | 12V DC (20A) / 24V DC (10A) |
| Illumination | Red Dual LED |
| Actuation | Momentary (Spring return to centre OFF) |
| Dash Cutout Dimensions | 44mm x 21mm (Standard Carling / ARB Size) |
| Face Dimensions | 49mm x 25mm |
| Terminals | 7x Standard 6.3mm Male Spade Terminals |
| Ingress Rating | IP66 Weather-Sealed Front Face |
| Primary Application | In-cab direction control for winch solenoids and Albright contactors |
| Parameter | Value |
| Product Net Weight | approx. 0.04 kg |
| Overall Length | 49.0 mm |
| Overall Width | 25.0 mm |
| Overall Depth | 48.0 mm |
| Shipping Weight | approx. 0.06 kg |
| Packed Bag Dimensions | approx. 8cm x 6cm x 3cm |

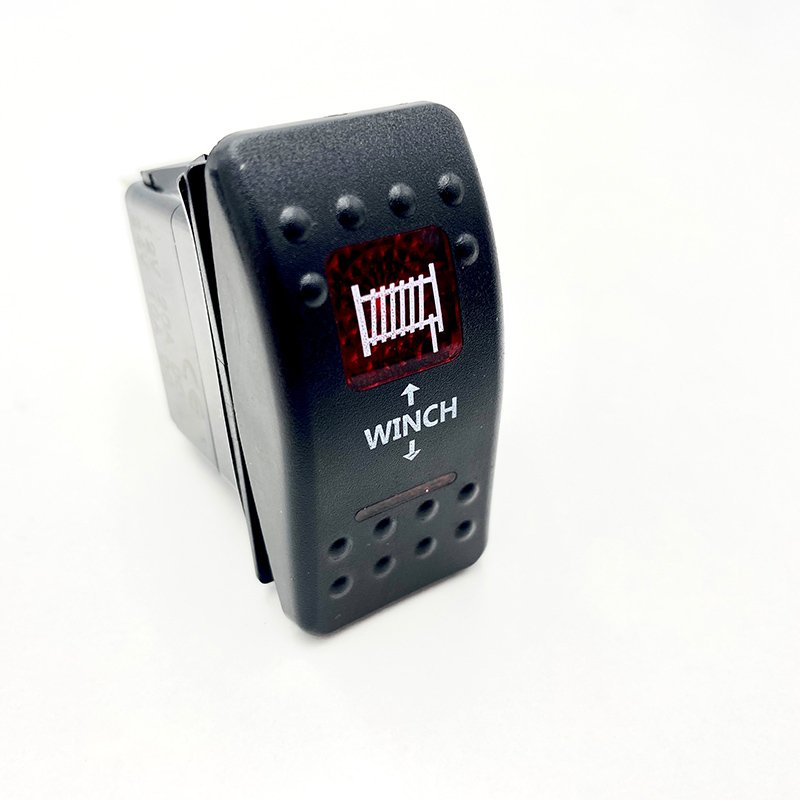

Winch In / Winch Out 7 Pin Switch, red light
Precision In-Cab Winch Direction Control
The RED Winches Winch In/Winch Out 7-Pin Switch delivers instant, tactile directional control right from your dashboard. Built with a spring-loaded momentary mechanism, this rocker switch automatically returns to the centre OFF position the moment you release it, giving you precise control over winch drum rotation and preventing dangerous over-spooling.
Designed to drop into standard ARB/Carling dash cutouts, it features crisp red LED backlighting for quick visual recognition during night operations. With its robust 7-pin setup, it provides dual-pole switching to trigger both winch-in and winch-out solenoids safely while keeping high-power switching away from the cab interior.
£15.00 ex. VAT
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
