61m (200ft) Operational Range: Maintains a stable, high-reliability radio link from safe distances, providing optimal visibility during heavy pulls.
-
Pre-Configured Air Freespool Integration: 4-function and 6-function units are pre-programmed with non-latching momentary Winch In/Out controls and latching switches for air-operated freespool solenoids.
-
Dual Winch Capabilities: 6-function options allow simultaneous control of two separate winches or auxiliary lighting/equipment from a single transmitter handset.
-
Optional Receiver Keypad (In-Cab Redundancy): Select models feature duplicate control buttons directly on the receiver casing for simple, hard-wired in-cab operation without additional dashboard wiring.
-
Fail-Safe Security & Watch-Dog Circuitry: Features Electronic Stop Systems (ESS) and over 16 million unique security codes to prevent signal crossover or accidental activation.
-
IP65 Weatherproof & Floating Handset: Rugged injection-moulded housing resists driving rain, mud, and grit. Handset floats if dropped in water.
-
1x Lodar Industrial Handheld Wireless Transmitter (4-Function or 6-Function, depending on variant)
-
1x Lodar Heavy-Duty Wireless Receiver (with optional integrated faceplate controls)
-
1x Handset Lanyard & Mounting Clip
-
1x 9V PP3 Battery (installed/included)
-
1x RED Winches Wiring & Installation Harness Kit
| Variant | Winch / Function Support | Primary Application |
| Lodar 4 Wireless | Single winch (In/Out) + Air Freespool | Standard single-winch rigs with air freespool |
| Lodar 4 Wireless (with Receiver Controls) | Single winch + Air Freespool + Hard-wired back-up | In-cab hardwired switch capability + wireless remote |
| Lodar 6 Wireless | Dual winch (In/Out x2) + Dual Air Freespool / Aux | Front & rear winches or auxiliary lighting control |
| Lodar 6 Wireless (with Receiver Controls) | Dual winch + Dual Air Freespool + Hard-wired back-up | Competition rigs requiring dual winch in-cab & remote options |
| Feature | Detail |
| System Manufacturer | Lodar (Configured & Programmed by RED Winches in the UK) |
| Operating Range | 61 Metres (200 Feet) |
| Operating Frequency | 433 MHz / 868 MHz band (secured digital signal) |
| System Voltage | 12V / 24V DC Auto-Sensing |
| IP Protection Rating | IP65 (Dust-tight and protected against water jets) |
| Switch Configuration | Momentary (Winch In/Out) & Latching (Air Freespool / Auxiliaries) |
| Handset Battery Type | 1x 9V PP3 standard battery |
| Handset Buoyancy | Yes (Handset floats in water) |
| Safety Features | Watchdog circuitry, 16M unique security codes, Electronic Stop System |
| Warranty | 5-Year Pro-Rated Manufacturer Warranty |
| Parameter | Value |
| Handset Weight (incl. battery) | approx. 0.28 kg |
| Receiver Unit Weight | approx. 0.65 kg |
| Handset Dimensions | approx. 160mm x 75mm x 40mm |
| Receiver Dimensions | approx. 175mm x 125mm x 55mm |
| Total Kit Boxed Weight | approx. 1.25 kg |
| Shipping Box Dimensions | approx. 28cm x 20cm x 10cm |
Lodar Control Systems

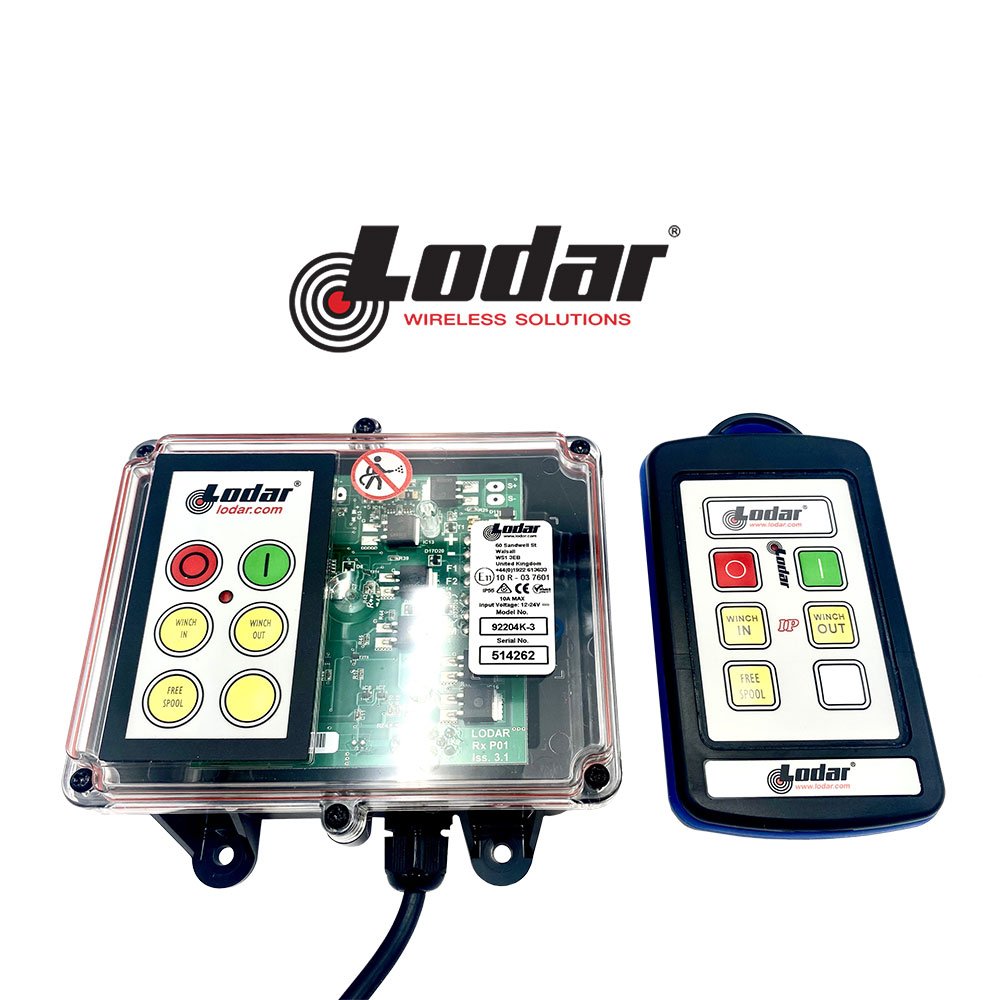

Lodar Industrial Grade Wireless Winch Control
Take total command of your recovery operations with the Lodar Wireless Control System. Widely regarded as the industry standard for professional recovery and industrial winching, Lodar systems offer unmatched reliability where budget remotes fail.
Each system is configured and programmed in-house by RED Winches to provide seamless operation for both electric and hydraulic winches. With a stable 60-metre (200ft) range, you can operate your equipment from a safe distance, maintaining a clear line of sight at all times.
Price range: £450.00 through £580.00 ex. VAT
Lodar Ltd is the industry leader in the design and production of Industrial Wireless Remote Controls. Since 1984, the team at Lodar has reinvented and developed the radio remote system to suit the needs of working companies and individuals.
For many years, here at RED Winches, we have been using Lodar units in our personal vehicles, and we are pleased to offer these units tailored specifically for winching applications.
With four options to choose from, we have you covered. All of our Lodar units are configured to give you control of your winch in/out function and your air freespool when paired with an air solenoid. Once you have experienced the convenience of remote control of your freespool, you will never want to go back to a traditional winch!
The “winch in” and “winch out” function buttons are programmed as momentary switches, and the “freespool” button, along with any spare function buttons, are programmed as latching switches.
In addition to the handset controls, we can also offer the option of a duplicate set of buttons on the receiver, making it an easy way to install a set of “hard wired” switches in your cab.
For a single winch with an air freespool you will need a 4 function unit. To control two winches fitted with air freespool,s you will need a 6-function unit
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
