Extended Range: Operates reliably up to 75 metres (line of sight), giving you a safe distance from the winch line.
-
Enhanced Safety: Features a built-in “Emergency Stop” function; a quick press of the power button instantly terminates the connection.
-
IP67 Rated Receiver: Tested for immersion in 1m of water, meaning your control box won’t fail after the first deep puddle.
-
Visual Feedback: Integrated LED indicator shows connection status and communication speed in real-time.
-
Functions: Winch IN and Winch OUT, offering precise control of your winch line
-
Durability: Receiver now features improved waterproofing and silicone-coated wires for enhanced resilience in wet and harsh environments
-
Operating Voltage: Compatible with 12V to 24V systems
- Conforms to NCC standards and EN 50498 (07/2010), ISO 7637-2 (2004), CISPR 25 (2002-2004)
- Weather-Sealed Durability: Upgraded receiver and weatherproof components designed to thrive in mud, rain, and grit.
-
Long-Range Confidence: Operate Winch IN/OUT functions from a safe distance with zero lag.
-
Universal Utility: Ideal for 4×4 recovery, trailers, and general utility work.
-
Plug & Play Simplicity: Clearly labelled controls and an easy installation process get you back on the trail faster.
-

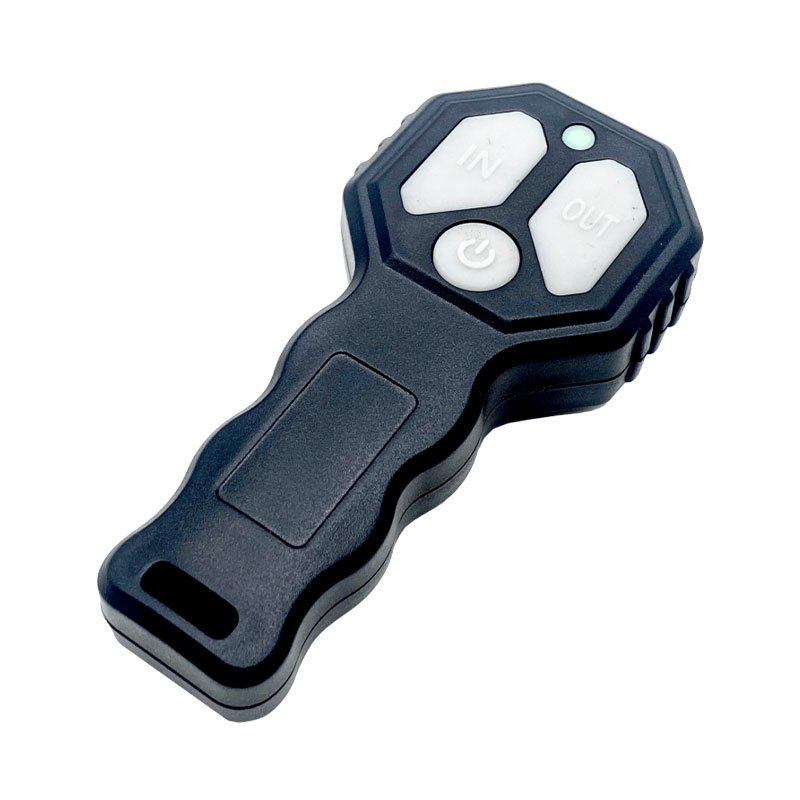

1x RED Winches Ergonomic Wireless Handset
-

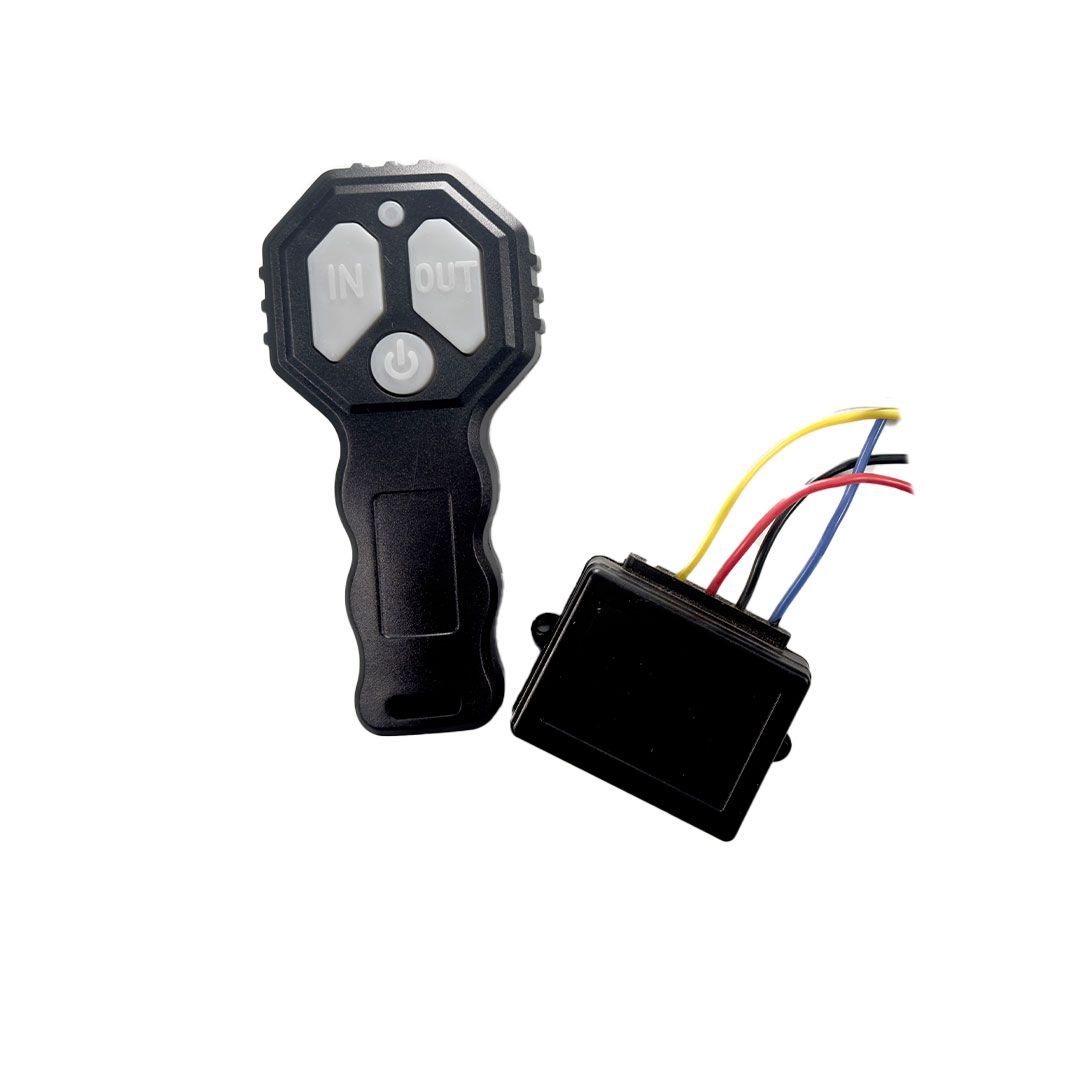

1x Heavy-Duty IP67 Sealed Receiver Unit (with pre-wired harness)
-
1x 23A 12V Alkaline Handset Battery
| Feature | Detail |
| System Voltage | 12V / 24V DC Universal |
| Maximum Range | Up to 75 Metres (246 Feet) line-of-sight |
| Receiver Protection | IP67 Rated (Tested for 1m water immersion) |
| Functions | Winch IN / Winch OUT with Emergency Cut-off |
| Handset Battery Type | 23A 12V Alkaline battery |
| Wiring & Connections | Silicone-coated high-flex copper leads |
| Compliance Standards | NCC, EN 50498 (07/2010), ISO 7637-2 (2004), CISPR 25 (2002-2004) |
| Primary Application | Universal remote control for 12V/24V solenoid-controlled winches, trailers, & recovery vehicles |
| Parameter | Value |
| Handset Weight (incl. battery) | approx. 0.12 kg |
| Receiver Unit Weight | approx. 0.28 kg |
| Handset Dimensions | approx. 105mm x 48mm x 28mm |
| Receiver Box Dimensions | approx. 85mm x 60mm x 32mm |
| Lead Wire Length | approx. 200mm |
| Total Kit Boxed Weight | approx. 0.45 kg |
| Shipping Box Dimensions | approx. 18cm x 12cm x 6cm |
Wireless Winch Controller
Freedom of Movement
Stop being tethered to your front bumper. The RED Winches Wireless Winch Controller gives you the freedom to move around your vehicle, find the best vantage point, and stay out of harm’s way during a recovery.
This is a rugged, “Plug & Play” solution designed to fit almost any solenoid-controlled winch on the market. Unlike basic remotes, our upgraded system features a fully waterproofed receiver and silicone-coated wiring, ensuring it survives the mud and rain of the UK trails.
£55.50 ex. VAT
Rugged Wireless Winch Control System | Reliable Off-Road Recovery
Stop tethering yourself to your bumper. This cost-effective wireless system gives you the freedom to stand back, get a better vantage point, and stay out of harm’s way during recovery. Built to withstand the elements, it’s the essential upgrade for any single-winch setup.
To see all control options, this article covers all varieties that we supply.
Troubleshooting Your Wireless Winch Controller
Most wireless control issues are simple to resolve. If your controller is not responding, follow this step-by-step checklist to get back up and running.
1. Check the Handset Battery
The most common cause of signal loss is a low or dead battery in the transmitter.
-
The Battery: Our handsets typically use a 23A 12V battery.
-
The Test: Press any button on the handset. If the LED indicator is dim, flickering, or does not light up at all, replace the battery immediately.
-
Pro Tip: Always keep a spare 23A battery in your glove box or recovery kit!
2. Verify the Receiver Power
The wireless receiver needs a stable power supply from your vehicle’s battery.
-
Wiring Check: Ensure the red (positive) and black (negative) wires are securely connected to a 12V or 24V source.
-
Fuse Inspection: Check any inline fuses you have installed in the power feed. A blown fuse will prevent the receiver from “listening” for the handset signal.
-
Earth/Ground: Ensure the black wire is connected to a clean, paint-free metal surface or the negative battery terminal.
3. Re-Pairing the Handset (Syncing)
If the handset light is bright but the winch won’t move, the “link” between the remote and the box may have been lost.
-
The Reset: Turn off the power to the winch system.
-
The Sync: Hold down both Winch IN and Winch OUT on the handset. While holding them, turn the power back on to the receiver.
-
The Confirmation: Keep the buttons held for 3–5 seconds. The LED should flash or stay solid to indicate a successful pair.
4. Signal Interference & Range
While our controllers have a 75m range, environmental factors can interfere.
-
Line of Sight: Ensure you have a clear view of the vehicle. Large metal objects or high-voltage power lines can occasionally disrupt the 2.4GHz signal.
-
Antenna Position: Ensure the small antenna wire on the receiver box isn’t crushed or shielded behind thick metal plates.
5. Solenoid Clicking?
If you hear the winch solenoid “clicking” but the motor isn’t turning, the wireless controller is working perfectly, the issue likely lies with your winch motor or a flat vehicle battery.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
