Crush & Pinch Protection: Holds the eye splice open under load, maintaining the correct bend radius to prevent internal fibre deformation.
-
Marine-Grade Stainless Steel / Heavy-Duty Steel: Corrosion-resistant construction built to withstand constant immersion in mud, salt spray, and extreme off-road elements.
-
Smooth Inner Channel Radius: Precision-formed rope groove ensures no burrs or sharp edges touch delicate UHMWPE synthetic fibres or protective tubular sleeves.
-
Universal Hardware Compatibility: Sized to fit standard bow shackles, soft shackles, competition winch hooks, and S-RING-60 recovery rings.
-
Versatile Sizing Options: Available across multiple sizes to fit rope gauges from 6mm ATV lines up to 14mm heavy 4×4 and commercial competition lines.
1x RED Winches Heavy-Duty Rope Thimble (in selected size & material variant)
| Feature | Detail |
| Material Options | Marine-Grade Stainless Steel / Heavy-Duty Steel |
| Finish | Polished Stainless / Powder-Coated Steel |
| Rope Type | Compatible with Synthetic UHMWPE lines & Steel Wire Rope |
| Splicing Application | Ideal for soft loop eye splices, extension lines, & winch main lines |
| Primary Function | Eye protection, crush prevention, & friction reduction |
| Variant Size | Approx. Net Weight | External Dimensions (L x W x D) | Groove Width |
| Small (6mm – 8mm) | approx. 0.04 kg | approx. 45mm x 30mm x 12mm | approx. 9mm |
| Medium (10mm – 12mm) | approx. 0.08 kg | approx. 65mm x 42mm x 18mm | approx. 13mm |
| Large (14mm) | approx. 0.14 kg | approx. 80mm x 52mm x 22mm | approx. 15mm |
| Shipping Weight | approx. 0.05 kg – 0.16 kg (depending on variant) |
Winch Rope Thimbles
Protect Your Investment
A Winch Rope Thimble is a small but critical component in any recovery system. Designed to fit inside the “eye” of a spliced rope, the thimble provides a hard, protective barrier that prevents hooks and shackles from crushing or chafing the rope fibres under extreme tension.
Price range: £4.50 through £6.00 ex. VAT
At RED Winches, we offer high-grade Stainless Steel Thimbles and specialised Tubular Thimbles specifically selected for use with synthetic UHMWPE ropes. These ensure your rope maintains its structural integrity and full breaking strain during heavy-duty 4×4 recoveries.
Our Range Includes:
-
Standard Stainless Steel Thimbles: Corrosion-resistant and ideal for general recovery and trailer winches.
-
Tubular Thimbles (Heavy Duty): Provides 360-degree protection for the rope, making them the preferred choice for competition winching and professional recovery.
-
Multiple Sizes: Available for rope diameters from 6mm up to 14mm+.

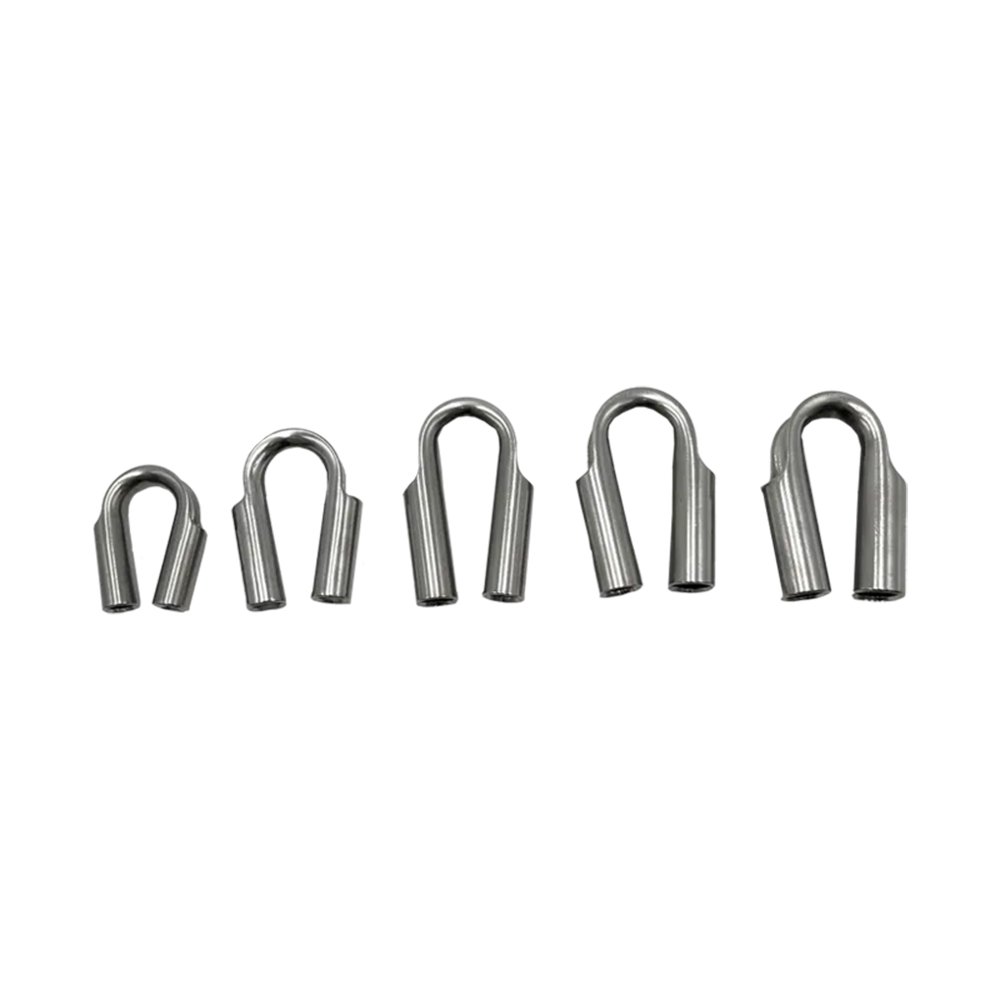

Stainless Steel tube thimbles.
If you are splicing your own rope, we recommend using a thimble 1-2mm larger than your rope diameter.
Why Use a Thimble?
Without a thimble, the “eye” of your winch rope is susceptible to “point loading.” This can lead to internal heat build-up and premature failure of the synthetic strands. Our thimbles distribute the load evenly, significantly extending the lifespan of your Synthetic Winch Rope.
How to Choose the Right Thimble Size
To ensure a secure fit, the thimble size should match your rope’s diameter. A thimble that is too small will pinch the rope, while one that is too large may fall out when the line is slack.
-
6mm Thimbles: Best for ATV and UTV winch lines.
-
10mm – 12mm Thimbles: The standard for most 4×4 recovery winches (Defender, Hilux, etc.).
-
Installation Tip: When splicing your rope, ensure the eye is pulled tight around the thimble groove to prevent movement. For maximum security in extreme conditions, we recommend our Tubular Thimbles.
