8x Lighter Than Steel Wire: Eliminates heavy front-axle weight, floats on water, and dramatically improves safety and vehicle handling during rigging.
-
12-Strand Braided Construction: Torque-balanced layout with an optimised pitch-to-yarn twist, preventing hockling, kinks, and internal friction wear.
-
Specialised Polyurethane Coating: Applied for enhanced abrasion resistance, improved UV protection, and superior friction grip on drum barrels and hawse fairleads.
-
UK Spliced In-House: Expertly finished with a stainless steel thimble, protective tubular eye sleeve, and optional competition hook. Custom lengths available on request.
-
Zero Water Absorption & Low Creep: Retains lightweight flexibility without freezing or shrinking when wet.
1x RED Winches Premium UHMWPE Synthetic Winch Rope (in selected diameter & length)
Twisted Fibre Construction – 12 Strand braided construction:
- Improved abrasion resistance
- Optimised pitch to yarn twist – improves strength & longevity
- Firmer, rounder rope aids handling
- Easy to splice
- Flexible product and easily handled
- Torque balanced
Coating:
- Specially formulated polyurethane coating
- Improves abrasion resistance and durability
- Increases friction, aids handling and Splicing
| Diameter & Length Variant | Approx. Net Rope Weight | Typical Packed Dimensions |
| 6mm x 15m / 20m | 0.4 kg – 0.6 kg | 20cm x 15cm x 10cm |
| 8mm x 30m | approx. 1.3 kg | 28cm x 18cm x 12cm |
| 11mm x 30m / 48m / 55m | 2.5 kg – 4.5 kg | 35cm x 22cm x 18cm |
| 12mm x 25m / 36m / 45m | 3.0 kg – 5.5 kg | 40cm x 25cm x 20cm |
| 14mm x 38m / 45m / 50m | 5.8 kg – 7.8 kg | 45cm x 30cm x 22cm |
Synthetic Winch Ropes
Engineered for Performance: RED Winches Synthetic Ropes
Upgrade your recovery system with our high-performance Synthetic Winch Ropes. Manufactured from premium UHMWPE (Ultra High Molecular Weight Polyethylene), our ropes are 8x lighter than steel wire without compromising on strength.
Each rope is spliced in-house at our UK facility, featuring a 12-strand braided construction for superior abrasion resistance and easier handling. Whether you need a replacement rope for an ATV or a heavy-duty line for commercial recovery, our range offers zero water shrinkage and maximum UV resistance.
Price range: £45.00 through £450.00 ex. VAT

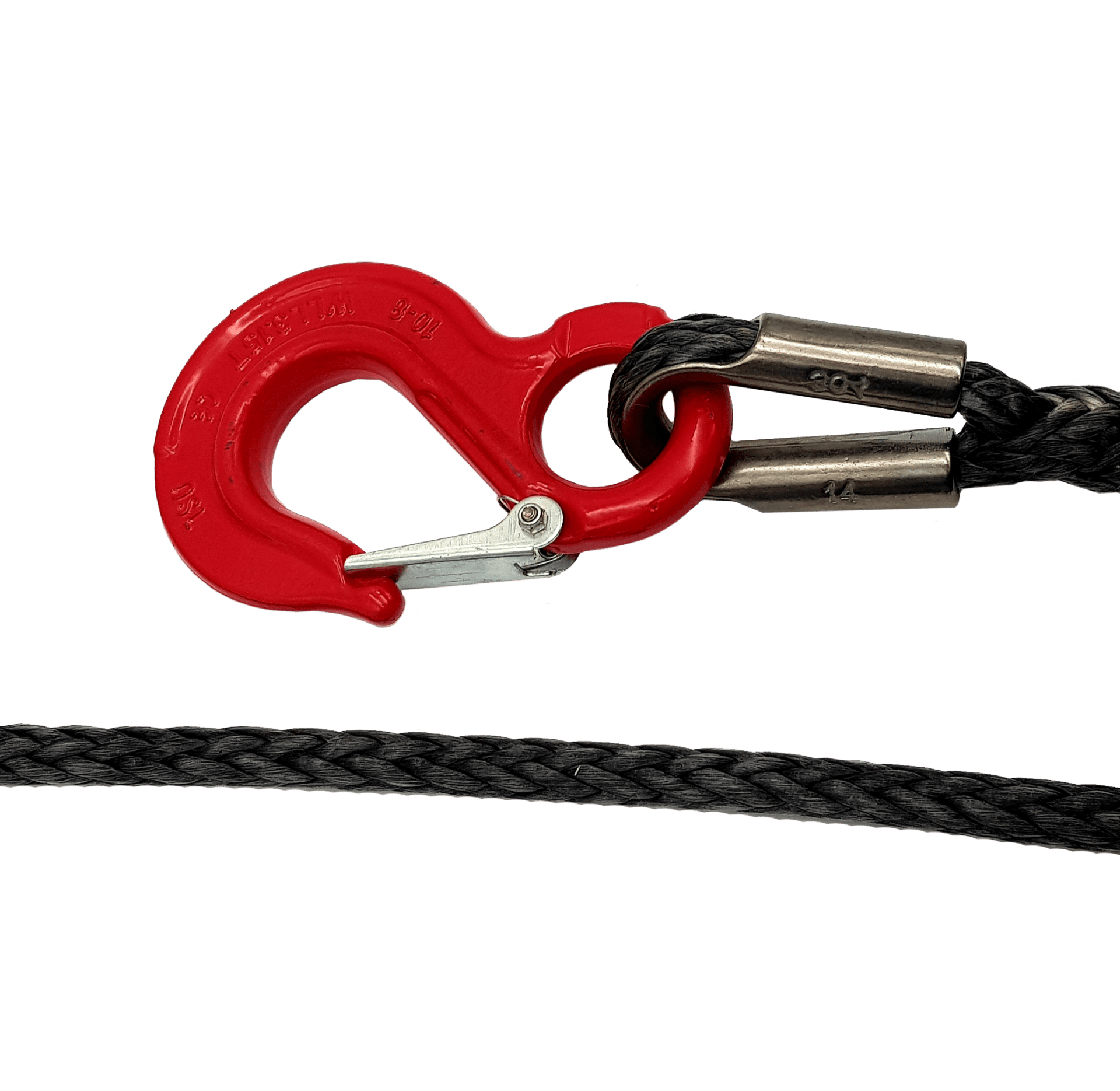

Synthetic Winch Rope With Hook
Configured with a spliced loop, stainless steel thimble and a red competition hook* at one end with a plain cut at the other end of the rope.
*6mm ropes come with a hook.
The ideal rope to use with your RED Winch. All of our ropes are spliced in our UK workshop from the reel. If you need a size that is not listed, please contact us. Next-day delivery available.
N.B. Knots will significantly reduce the strength of any rope. This product will typically retain approximately 30% of its strength if terminated with a knot. The exact figure will depend on the type of knot and other factors.
Which rope should I choose?
How to Select the Right Synthetic Winch Rope
When choosing a rope, we recommend a 2:1 safety factor. This means the rope’s minimum breaking strength should be at least twice your winch’s maximum pulling capacity.
6mm – 8mm Ropes: Ideal for ATVs, UTVs, and small trailers.
11mm – 12mm Ropes: The standard choice for 4x4s like the Land Rover Defender or Toyota Hilux (rated up to 13,970kg).
14mm+ Ropes: Heavy-duty lines for commercial towing, military applications, and extreme competition winching.
Why UHMWPE?
Our ropes use a specialised polyurethane coating to increase friction and durability. Unlike steel, synthetic rope does not store dangerous energy under tension, making it the safest choice for off-road recoveries.
Rope Diameter Average Breaking Strain (kg) Average Breaking Strain (lb) Recommended Application 5mm 2,400kg 5,290lb Small ATVs, Ploughs & Hoists 6mm 3,300kg 7,275lb Large ATVs, UTVs & Side-by-Sides 8mm 5,700kg 12,560lb Compact 4x4s & Lightweight Trailers 10mm 9,500kg 20,940lb Standard 4×4 Recovery (Greenlaning) 11mm 11,800kg 26,015lb Heavy Duty 4×4 & Expedition Vehicles 12mm 13,900kg 30,640lb Competition Winching & Commercial Towing 14mm 18,500kg 40,785lb Extreme Recovery & Military Applications
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
