- Genuine Albright Manufacturing: Authentic UK/European-built DC182P unit, not a cheap clone.
- Heavy-Duty Copper Contacts: Superior electrical conductivity handles immense starting and stalling currents without welding shut.
- IP67 Waterproof Sealing: Fully sealed enclosure prevents ingress of water, mud, and grit during deep wading and extreme off-roading.
- Compact, Reversing Design: Replaces older, bulky four-solenoid packs with a single, highly efficient reversing contactor.
- Universal Single-Motor Fitment: Compatible with almost all Series Wound and Permanent Magnet single-motor 12V or 24V winches.
-
1x Genuine Albright Ultimate Motor Solenoid (DC182P) (in selected voltage)
-
1x Copper Link Bar Set (for motor connection)
-
1x Mounting Bracket & Hardware Kit
| Feature | Detail |
| Model | Albright DC182P (Reversing Contactor) |
| Voltage Options | 12V DC or 24V DC |
| Continuous Current Rating | 250A Continuous |
| Intermittent Current Rating | Up to 1000A (Short duration) |
| Ingress Protection | IP67 (Dust-tight and waterproof) |
| Contact Material | High-grade solid copper/silver alloy |
| Configuration | Single Pole, Double Throw (SPDT) Reversing |
| Compatibility | All standard single-motor winches (RED Winches, Warn, Superwinch, etc.) |
| Part Number | Voltage | Orientation |
| DC182-882 | 12V | Left Hand (LH) |
| DC182-884 | 12V | Right Hand (RH) |
| DC182-883 | 24V | Left Hand (LH) |
| DC182-885 | 24V | Right Hand (RH) |
| Parameter | Value |
| Net Product Weight | approx. 0.85 kg |
| Overall Length | approx. 85mm |
| Overall Width | approx. 70mm |
| Overall Height | approx. 95mm |
| Shipping Weight | approx. 1.0 kg |
| Packed Box Size | approx. 12cm x 10cm x 10cm |

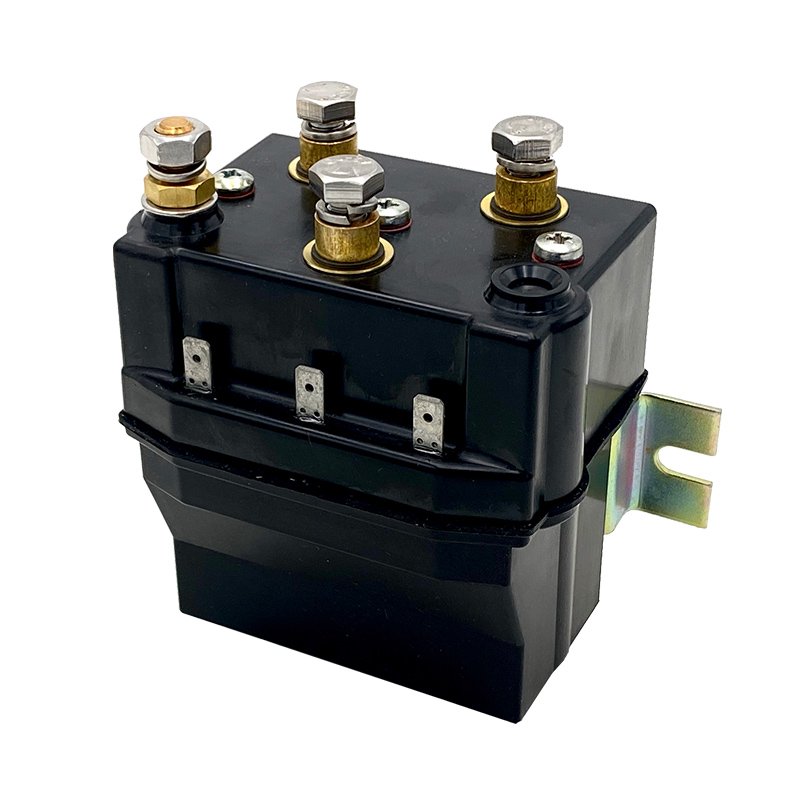

Albright DC182P: The Ultimate Extra Heavy-Duty Motor Solenoid
Albright DC182P: The Ultimate Extra Heavy-Duty Motor Solenoid
When standard solenoids reach their limit, the Albright DC182P series takes over. Engineered specifically for high-current competition winches, this extra heavy-duty contactor offers 50% more power handling capacity than its predecessors. If your priority is ultimate reliability under extreme winch loads, this is the definitive upgrade.
Price range: £140.00 through £145.00 ex. VAT
Competition-Grade Engineering
The DC182P features a monobloc construction, creating a neat, compact design that is fully compatible with modern electronic control systems. Designed to switch both resistive and inductive loads, it is the perfect fit for the Red Winches Ox motor.
Built to Endure: IP67 & Silver Alloy Contacts
-
Superior Sealing: Rated to IP67, this unit is completely protected against dust and immersion in water—essential for competitive off-roading.
-
Weld-Resistant Contacts: Features double-breaking main contacts with silver alloy tips. These are hard-wearing, offer excellent conductivity, and are highly resistant to welding.
-
Built-in Failsafe: The motor-reversing circuit includes a safety feature: if both coils are energised simultaneously, the circuit remains open to prevent damage.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
