- Maximum Conductivity: Premium heavy-wall copper construction guarantees zero power loss between your cables, solenoids, and winch motors.
- Heavy-Duty Wall Thickness: Engineered to handle high-tonnage hydraulic crimping without splitting or loosening under extreme vibration.
- Strain-Relief Angle Options: Choose between Straight and 45-Degree-angled lugs to ensure heavy 50mm² or 70mm² cables lie naturally in tight spaces.
- Precision Ring Terminals: Sized accurately for M8 and M10 studs to deliver a flush, high-contact-area connection on Albright contactors and OX Motors.
- Corrosion Protection: Electro-tinned finish shields raw copper from oxidation, road salt, and harsh off-road mud exposure.

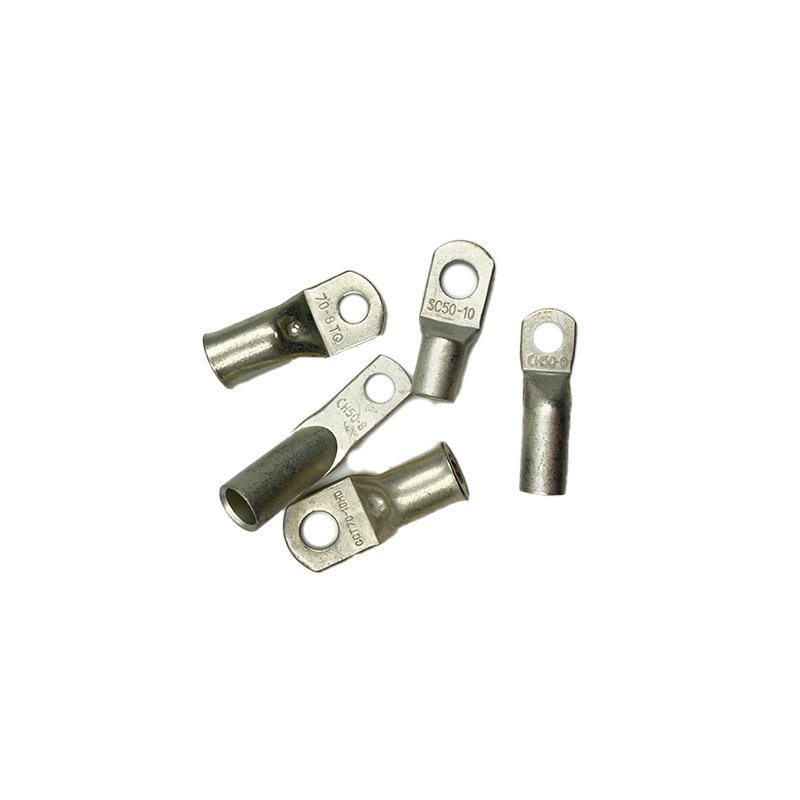

1x Heavy-Duty Cable Lug (in selected cable gauge, stud diameter, and angle configuration)
Available Configurations
Please select your specific requirements from the drop-down menus before adding to your basket.
| Cable Size | Ring Terminal Diameter | Angle Options |
| 50mm² | M8 | Straight / 45 Degrees |
| 50mm² | M10 | Straight / 45 Degrees |
| 70mm² | M8 | Straight / 45 Degrees |
| 70mm² | M10 | Straight / 45 Degrees |
Choosing the Right Lug
-
Cable Size: Match this exactly to the diameter of the power cable you are using (50mm² for standard heavy-duty setups, 70mm² for extreme/twin-motor setups).
-
Ring Diameter (M8 vs M10): Check the stud size on your hardware. For example, RED Winches OX Motors and standard Albright DC182/DC88 solenoids typically utilise M8 studs, while some batteries or heavy-duty isolators may require M10.
| Feature | Detail |
| Material | High-grade heavy-wall copper (electro-tinned for corrosion resistance) |
| Cable Gauge Options | 50mm² or 70mm² |
| Stud Diameter Options | M8 (8mm clearance) or M10 (10mm clearance) |
| Angle Options | Straight (180°) or 45-Degree Angle |
| Termination Method | Suitable for hydraulic crimping or heavy solder joint |
| Primary Application | Winch motor terminals, Albright solenoids, isolators, & battery connections |
| Parameter | Value |
| Individual Lug Weight | approx. 0.02 kg – 0.04 kg (varies by size) |
| Lug Barrel Inside Diameter | approx. 10.0mm (50mm²) | approx. 11.5mm (70mm²) |
| Shipping Weight (Per Pack) | approx. 0.05 kg |
| Packed Bag Size | approx. 8cm x 6cm x 2cm |
Cable Lugs for Winch Electrical Systems
The Ultimate Connection for Maximum Power Transfer
In a high-performance winch setup, your electrical system is only as strong as its weakest link. Poorly crimped or low-quality terminals create extreme electrical resistance, leading to voltage drops, immense heat buildup, and power loss at the motor. Our Heavy-Duty Cable Lugs are engineered specifically for the extreme current draws of competition and recovery winching, guaranteeing a secure, highly efficient connection every time.
Custom Tailored to Your Rig’s Layout
Routing heavy 50mm² or 70mm² winch power cables can be challenging in tight engine bays or crowded bumper setups. That is why our premium lugs are available in a massive variety of configurations. Choose between standard Straight lugs for direct runs or 45-degree angled lugs to relieve cable strain when mounting to Albright solenoids, isolator switches, or OX motors in tight spaces.
Price range: £0.84 through £3.62 ex. VAT
