- In-Cab Safety Isolation: Instantly kill power to your main winch feed from the driver’s seat—protecting against stuck contactors and accidental cable spooling.
- Replaces Bulky Manual Cut-Offs: Eliminates the need to run thick 70 mm² battery cables into the vehicle cabin for manual rotary disconnect switches.
- High-Current Capacity: Built to handle immense continuous and peak surge draws from high-output competition winches.
- Pre-Fitted Steel Mounting Bracket: Comes ready with an integrated bracket for secure installation inside engine compartments or custom control boxes.
- Choice of Control Operations: Available in Non-Latching (failsafe cut-off when signal drops) or Latching (zero-draw magnetic latching for battery preservation) variants.
-
1x Genuine Albright 12V Heavy-Duty Remote Winch Isolator (in selected operation type)
-
1x Pre-Fitted Heavy-Duty Steel Mounting Bracket
-
1x Hardware & Terminal Nut/Washer Pack
| Feature | Detail |
| Manufacturer | Albright International (UK) |
| Control Signal Voltage | 12V DC Only |
| Primary Power Terminals | M8 Threaded Studs (Main high-current power connection) |
| Control Signal Terminals | 8mm Male Spade Terminals |
| Ingress Protection | IP66 Weather-Sealed Protection (P-Suffix housing) |
| Price Range | £65.00 – £67.50 ex. VAT |
| Primary Application | Remote high-current power isolation/safety kill switch for winches |
| Parameter | Value |
| Net Unit Weight | approx. 0.95 kg |
| Overall Length | approx. 95mm |
| Overall Width | approx. 70mm |
| Overall Height | approx. 110mm |
| Shipping Weight | approx. 1.15 kg |
| Packed Box Size | approx. 15cm x 12cm x 10cm |

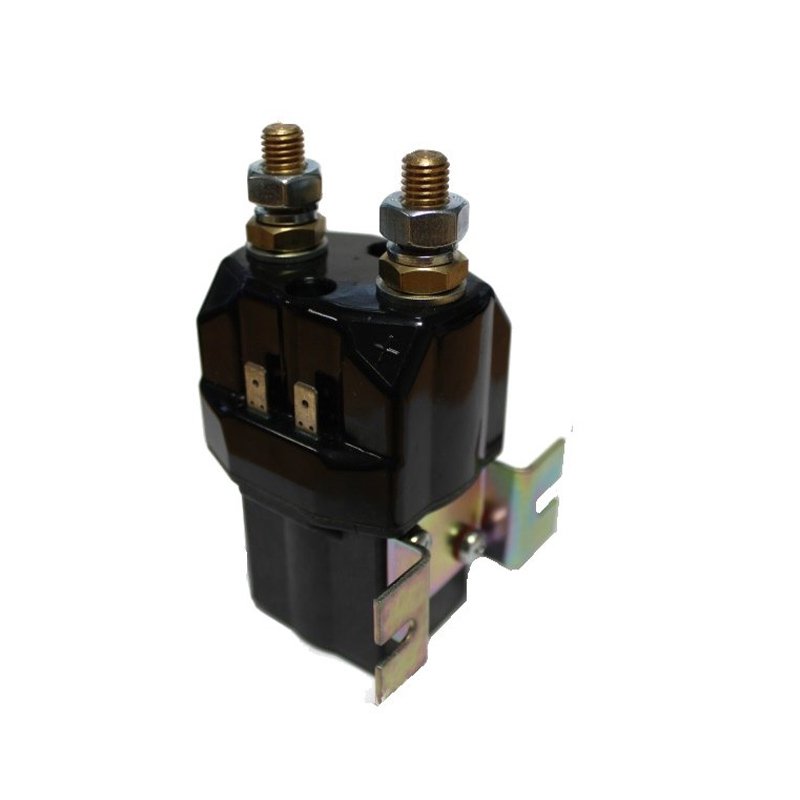

Albright 12V Heavy Duty Winch Isolator
Albright Heavy-Duty Remote Winch Isolator (12V DC)
Take full control of your winch safety with the Albright Heavy-Duty Single Pole Isolator. Designed to replace cumbersome manual “kill switches,” this unit allows you to isolate or activate your winch power with a single flick of a button on your dashboard.
Forget mounting bulky manual isolators near the driver’s seat. These compact, high-performance units can be installed anywhere on your vehicle and are activated via a 12V signal through small-gauge wiring.
Please Note: These units are currently only available in the 12V DC signal version. Before adding to your basket, you must configure your Winch Isolator below to select the correct internal mechanism for your setup.
Price range: £75.00 through £77.50 ex. VAT
Choose Your Configuration:
Option 1: Non-Latching (Standard)
The most straightforward setup for instant power control.
-

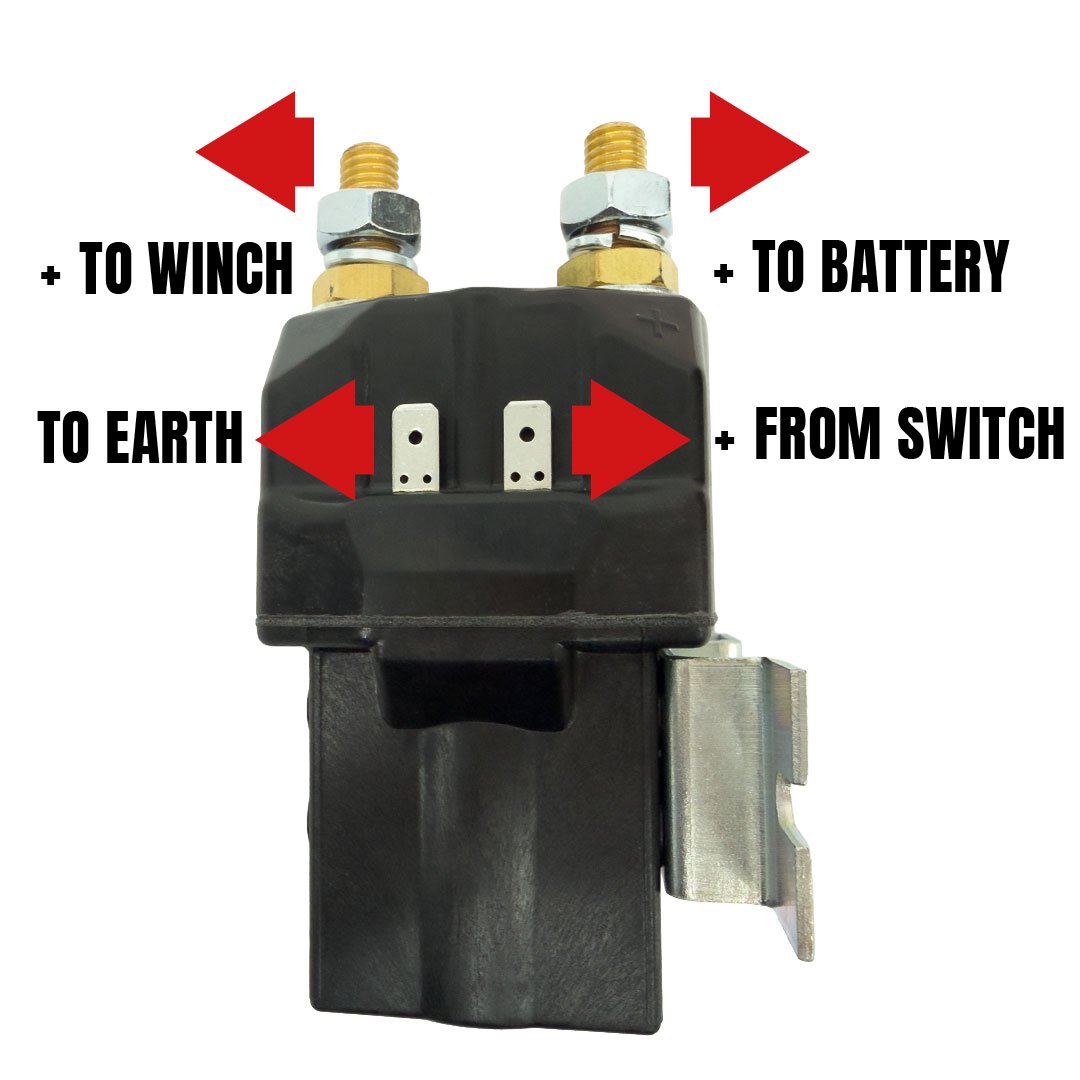

Operation: Requires a constant 12V signal to the 8mm spades to remain in full contact.
-
Safety Feature: As soon as the 12V signal is removed, the isolator automatically kills the power, breaking the circuit.
-

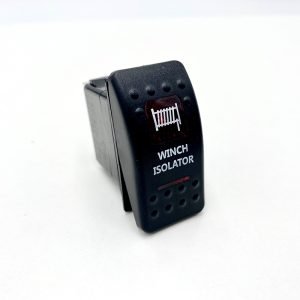

Switching: Compatible with a standard 2-way ON/OFF switch.
-
Technical Note: This model is not compatible with our DP/DT rocker switches.
Option 2: Latching (Magnetic / Zero-Draw)
The ultimate solution for battery preservation and efficiency.
-
Operation: Features an internal magnet that “latches” the switch into position.
-
Zero Power Draw: Once the state has been changed, it draws no power to remain ON or OFF. It only requires a brief pulse to switch.
-
Polarity Switching: Requires the 12V polarity on the 8mm spades to be reversed to change its state.
-
Required Hardware: This isolator must be used with a DP/DT (Double Pole/Double Throw) rocker switch.
Support
Waranty & Service
Every genuine RED Winch is engineered for extreme performance and backed by a Limited Lifetime Warranty on all mechanical components. We also provide a comprehensive 5-year (60-month) warranty on electrical components, including the motor, contactor, and switches. To ensure your winch remains covered, please remember to register your product online within 30 days of purchase and follow the recommended annual service schedule. This warranty is a testament to our British engineering and our commitment to keeping you moving when failure is not an option.
More Information
Technical Documents or Videos
SU280-1066P – Non Latching version
