Instant 24V Voltage Boost: Doubles winch motor speed and enhances pulling performance on demand during hard recoveries.
-
Seamless 12V Vehicle Integration: Operates with standard 12V dual-battery systems, converting power safely without altering primary vehicle electronics.
-
Heavy-Duty High-Current Switching: Fitted with industrial-grade contactors capable of handling extreme current spikes during high-load pulls.
-
Automatic Charging & Isolation: Recharges secondary batteries automatically when not in active winching mode, maintaining peak readiness.
-
Rugged Steel Housing: Compact, durable enclosure engineered to resist mud, vibration, and extreme temperature fluctuations.
-
1x RED Winches 12V to 24V Supercharger Control Unit
-
1x Heavy-Duty High-Current Switching Contactor Assembly
-
1x Pre-Wired Harness & Signal Control Cable Set
-
1x Heavy-Duty Fusing & Protection Kit
-
1x Installation & Wiring Diagram Manual

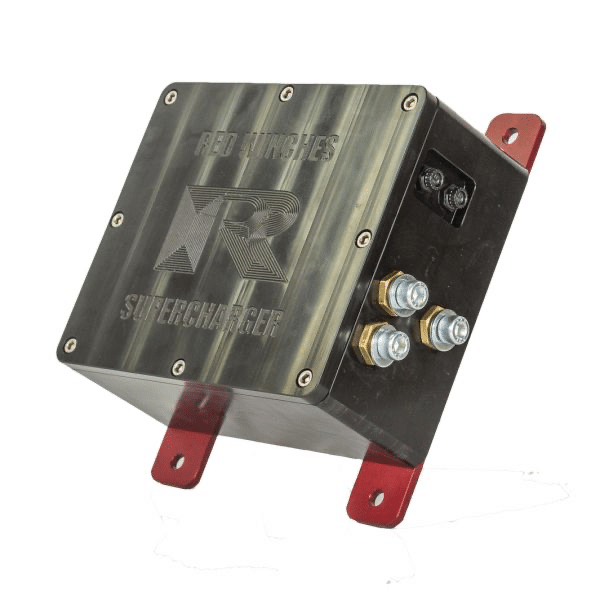

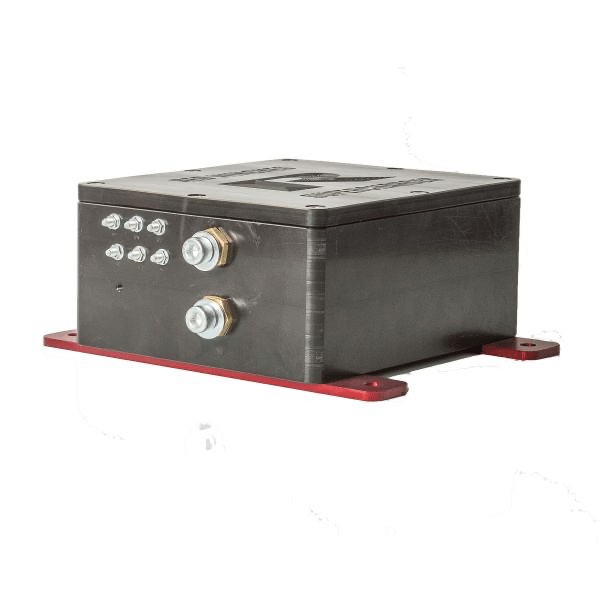

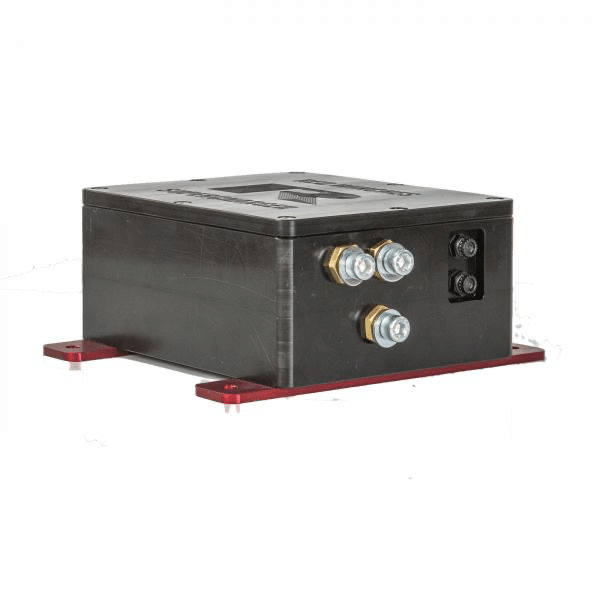

The Red Winches Supercharger is a game-changer for high-performance recovery. Engineered specifically for the rigours of off-road racing, this unit allows you to run 24V power to your winch while maintaining your vehicle’s standard 12V electrical system.
Why Choose the Supercharger?
-
Massive Speed & Torque Boost: By “over-volting” your 12V motors to 24V, you achieve lightning-fast line speeds and increased pulling power—essential for competitive advantage.
-
No 24V Alternator Needed: Save weight and complexity. The Supercharger manages the voltage transition seamlessly from your dual-battery 12V setup.
-
Competition-Grade Reliability: Housed in a CNC-machined Delrin enclosure and rated to IP68 waterproof standards, it’s built to survive deep water crossings and mud.
-
High Current Handling: Rated at 500A for normal use and a 750A peak (30 seconds), ensuring it handles the draw of high-performance motors like the OX Competition Motor.
Pair the Supercharger with our OX Competition Motor for the ultimate recovery setup. If you are over-volting, remember to keep winching bursts to 10-15 meters to manage motor RPMs and maximise equipment life.
| Feature | Detail |
| SKU | SC-1224 |
| Input Voltage | 12V DC (Primary Dual-Battery Supply) |
| Output Voltage | 24V DC (Boosted Output during winching) |
| Continuous Current Rating | 400A continuous |
| Peak Surge Current | 800A+ peak current capacity |
| Switching Mechanism | Heavy-duty industrial solenoid/relay matrix |
| Battery Requirement | Requires 2x 12V AGM/Lead-Acid batteries in system loop |
| Enclosure Protection | Weather-resistant heavy-duty housing |
| Primary Application | 24V over-volting for 12V competition winches & high-speed recovery |
| Parameter | Value |
| Net Unit Weight | approx. 4.5 kg |
| Control Unit Length | approx. 220mm |
| Control Unit Width | approx. 180mm |
| Control Unit Height | approx. 110mm |
| Total Shipping Weight | approx. 5.2 kg |
| Shipping Box Dimensions | approx. 28cm x 22cm x 15cm |

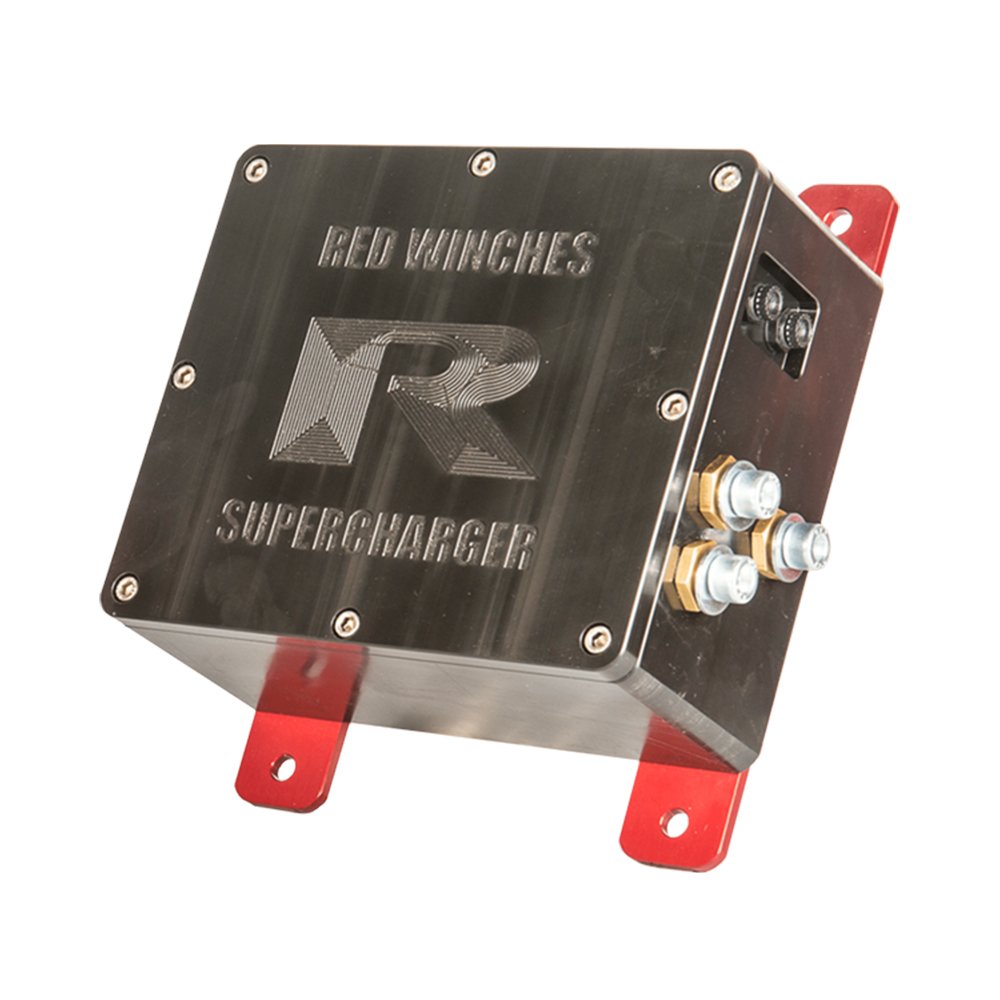

Supercharger 12v to 24v
A RED Winch designed unit that allows you to switch the power to your winch between 12v & 24v.
Important Note
• The Supercharger is NOT suitable for Quad motor winches.
Upgrade your winching capability with the Red Winches Supercharger and experience the power and efficiency it brings!
£500.00 ex. VAT
